Name: OPA2350UA
Brand: Burr Brown
SKU: OPA2350UA
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Burr Brown OPA2350UA

Part No.:: OPA2350UA

Manufacturer:: Burr Brown

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2350UA.pdf

Description:: IC CMOS 2 CIRCUIT 8SOIC

In Stock:: 2560

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2350UA Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
MicroAmplifier™
ProductStatus:
Active
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
22V/µs
GainBandwidthProduct:
38 MHz
-3dbBandwidth:
-
Current-InputBias:
0.5 pA
Voltage-InputOffset:
150 µV
Current-Supply:
5.2mA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2350UA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2350UA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2350UA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2350UA information

Views：

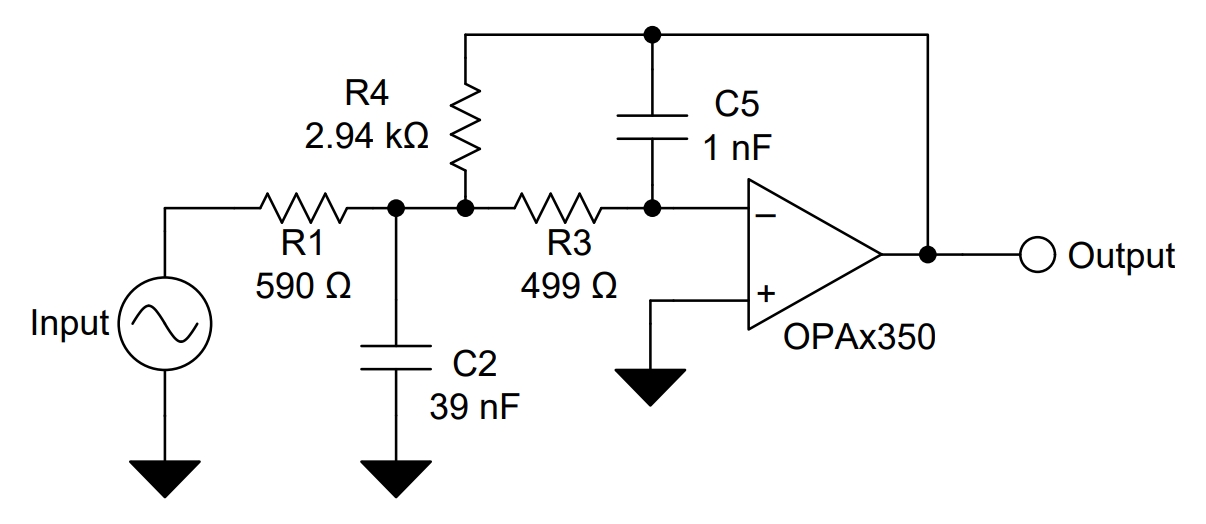

OPA2350UA Typical application Circuitry

OPA2350UA

The OPA2350UA is a dual, high-speed operational amplifier (op-amp) known for its wide bandwidth and rail-to-rail input/output capabilities. It is particularly suited for applications requiring fast response times and a wide dynamic range, such as in active filters, ADC (Analog-to-Digital Converter) drivers, and high-speed signal processing.

Key Features of OPA2350UA:

- High-Speed Operation: Suitable for applications requiring rapid signal processing.

- Wide Bandwidth: Ideal for high-frequency applications.

- Rail-to-Rail Input/Output: Facilitates full dynamic range utilization, particularly beneficial in low-voltage applications.

- Dual Op-Amp Configuration: Offers the flexibility of two operational amplifiers in one package.

Application Scenario - Active Filter in Audio Processing:

A practical application for the OPA2350UA is in an active filter circuit for audio processing, commonly used in sound systems and audio equipment.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 8 (V+) of the OPA2350UA to a positive power source, such as a 5V supply, and Pin 4 (V-) to the ground. This setup is typical for audio processing applications.

2. Audio Input Connection: Attach the audio input signal to Pin 3 (non-inverting input of the first amplifier) of the OPA2350UA. This allows for the initial amplification stage of the audio signal.

3. Filter Configuration: Configure an active filter by connecting components like resistors and capacitors between Pin 1 (output of the first amplifier), Pin 2 (inverting input of the first amplifier), and ground to set the desired filter characteristics (e.g., high-pass, low-pass, band-pass).

4. Audio Output: The filtered audio signal is available at Pin 1, which can be connected to the next stage in the audio processing chain or directly to an output device.

5. Second Amplifier Utilization: Employ the second amplifier within the OPA2350UA (Pins 5, 6, and 7) for additional audio processing or for filtering another audio channel.

6. Grounding Protocol: Ensure that Pin 4 is properly grounded to minimize noise and stabilize the operation.

Design Considerations with OPA2350UA:

- Stable Power Source: The performance of OPA2350UA can be affected by power supply variations. Ensure a stable and clean power source.

- Noise Management: Implement noise reduction strategies, leveraging the high-speed and wide bandwidth features of OPA2350UA, crucial in audio applications.

- Thermal Stability: Be mindful of the thermal environment, as temperature changes can affect the performance of high-speed op-amps.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, particularly important in high-precision audio applications using OPA2350UA.

In summary, the OPA2350UA operational amplifier is highly suitable for high-speed, high-precision applications such as active filters in audio processing. When designing circuits with the OPA2350UA, focusing on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout is essential to fully harness the capabilities of the amplifier.
