Texas Instruments OPA2350UA/2K5G4

Part No.:: OPA2350UA/2K5G4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2350UA/2K5G4.pdf

Description:: IC CMOS 2 CIRCUIT 8SOIC

In Stock:: 3662

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2350UA/2K5G4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
MicroAmplifier™
ProductStatus:
Discontinued at Mosen
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
22V/µs
GainBandwidthProduct:
38 MHz
-3dbBandwidth:
-
Current-InputBias:
0.5 pA
Voltage-InputOffset:
150 µV
Current-Supply:
5.2mA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2350UA/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2350UA/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2350UA/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2350UA/2K5G4 information

Views：

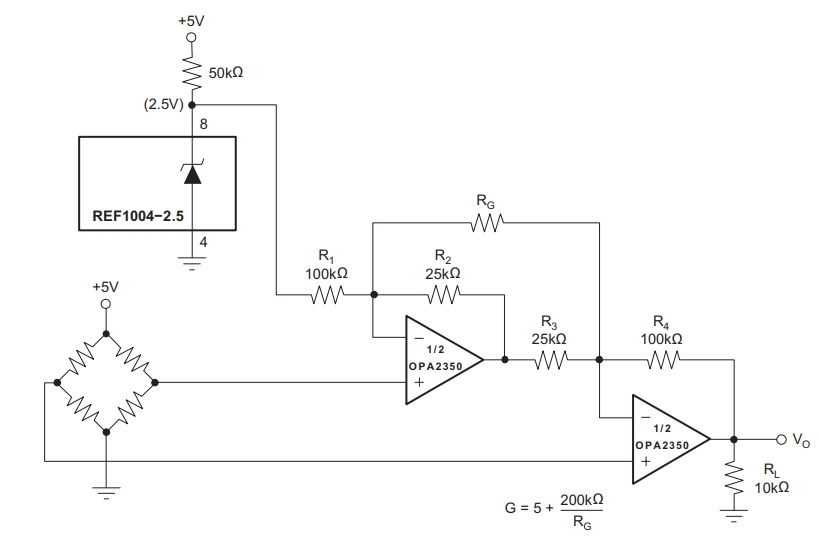

OPA2350UA/2K5G4 Typical application Circuitry

OPA2350UA 2K5G4

The OPA2350UA/2K5G4 is a dual, high-speed operational amplifier (op-amp) known for its wide bandwidth and rail-to-rail input/output capabilities. This chip is particularly well-suited for applications that require fast response times and a wide dynamic range, such as in active filters, ADC drivers, and high-speed signal processing.

Crucial Characteristics of OPA2350UA/2K5G4:

- High-Speed Operation: Ideal for applications that need to handle signals quickly.

- Wide Bandwidth: Ideal for handling high-frequency signals effectively.

- Rail-to-Rail Input/Output: Enables full dynamic range usage, especially beneficial in low-voltage applications.

- Dual Op-Amp Configuration: Provides flexibility with two operational amplifiers in a single package.

Application Scenario - High-Speed Photodiode Amplifier:

A practical application for the OPA2350UA/2K5G4 is in a high-speed photodiode amplifier, commonly used in optical communication systems and light detection applications.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 8 (V+) of the OPA2350UA/2K5G4 to a positive power source, such as a 5V supply, and Pin 4 (V-) to the ground. This setup is typical for high-speed electronic circuits.

2. Photodiode Connection: Attach the photodiode to Pin 3 (non-inverting input of the first amplifier) of the OPA2350UA/2K5G4. This configuration allows for the initial amplification of the photodiode signal.

3. Feedback Network: To set up a feedback network, link Pin 1 (the first amplifier's output) and Pin 2 (the first amplifier's inverted input) using a resistor (R1) and a capacitor (C1). The amplifier's strength and bandwidth are adjusted using this network.

4. Signal Output: The amplified photodiode signal is available at Pin 1, ready for further processing or conversion to a digital format.

5. Utilizing the Second Amplifier: Use the second amplifier within the OPA2350UA/2K5G4 (Pins 5, 6, and 7) for additional signal processing or amplifying another photodiode.

6. Grounding Protocol: Ensure that Pin 4 is properly grounded to reduce noise and enhance the stability of the circuit.

Design Considerations with OPA2350UA/2K5G4:

- Stable Power Source: A stable and clean power supply is crucial for the optimal performance of OPA2350UA/2K5G4, especially in high-speed applications.

- Noise Management: Implement noise reduction strategies, taking advantage of the high-speed and wide bandwidth features of OPA2350UA/2K5G4.

- Thermal Stability: Be mindful of the thermal environment, as temperature fluctuations can affect the performance of high-speed op-amps.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, particularly important in high-precision applications like photodiode amplifiers using OPA2350UA/2K5G4.

In summary, the OPA2350UA/2K5G4 operational amplifier is highly suitable for high-speed, high-precision applications such as photodiode amplifiers in optical communication systems. When designing circuits with the OPA2350UA/2K5G4, focusing on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout is essential to fully harness the capabilities of the amplifier.
