Texas Instruments OPA2330AIDRG4

Part No.:: OPA2330AIDRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2330AIDRG4.pdf

Description:: IC OPAMP ZERO-DRIFT 2 CIRC 8SOIC

In Stock:: 3592

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2330AIDRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
CMOS, Zero-Drift
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
0.16V/µs
GainBandwidthProduct:
350 kHz
-3dbBandwidth:
-
Current-InputBias:
200 pA
Voltage-InputOffset:
8 µV
Current-Supply:
21µA (x2 Channels)
Current-Output/Channel:
5 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA2330AIDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2330AIDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2330AIDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2330AIDRG4 information

Views：

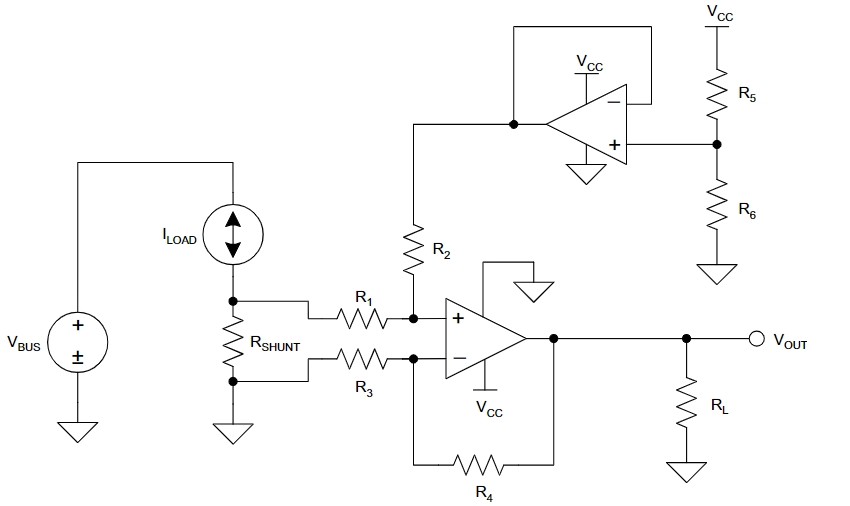

OPA2330AIDRG4 Typical application Circuitry

OPA2330AIDRG4

The OPA2330AIDRG4 is a precision operational amplifier, known for its low power consumption and microvolt offset. It is especially suitable for applications requiring high accuracy and low power, such as sensor signal conditioning, portable instrumentation, and medical devices.

Features of OPA2330AIDRG4:

- Low Power Consumption: Ideal for battery-powered and portable applications.

- Microvolt Offset: Ensures high precision in signal amplification.

- Rail-to-Rail Input and Output: Maximizes dynamic range in low-voltage operations.

Application Scenario - Sensor Signal Conditioning:

Let's consider the use of OPA2330AIDRG4 in a temperature sensor circuit, a typical application in environmental monitoring systems.

Circuit Connection Details:

1. Power Supply Connections: Pin 8 (V+) of the OPA2330AIDRG4 should be connected to a positive power source, while Pin 4 (V-) should be connected to the ground or negative power source. A typical supply voltage is 5V.

2. Sensor Input: Connect the output of the temperature sensor to Pin 3 (non-inverting input) of the OPA2330AIDRG4. This allows the op-amp to amplify the small signal generated by the sensor.

3. Gain Setting: A resistor (R1) is placed between Pin 1 (output) and Pin 2 (inverting input) to set the gain of the amplifier. Another resistor (R2) from Pin 2 to the ground helps determine the overall gain.

4. Output Configuration: The amplified signal from the temperature sensor is available at Pin 1, which can then be sent to an analog-to-digital converter for further processing.

5. Grounding: Ensure proper grounding by connecting Pin 4 to the ground. This helps in reducing noise and interference.

Design Considerations with OPA2330AIDRG4:

- Power Supply Quality: The performance of OPA2330AIDRG4 can be affected by power supply fluctuations. A stable and clean power supply is essential.

- Noise Reduction: Implement noise reduction techniques, as the OPA2330AIDRG4 is used in precision applications where noise can significantly impact performance.

- Thermal Management: Pay attention to the thermal environment, as temperature variations can affect the performance of precision components.

- PCB Layout: A carefully designed PCB is crucial for minimizing noise and ensuring signal integrity, especially when using precision components like the OPA2330AIDRG4.

In summary, the OPA2330AIDRG4 is a highly suitable operational amplifier for precision applications requiring low power consumption and high accuracy, such as sensor signal conditioning in environmental monitoring systems. Key considerations in circuit design include power supply stability, noise reduction, thermal management, and careful PCB layout to fully exploit the capabilities of the OPA2330AIDRG4.
