Texas Instruments OPA2330AIDRBTG4

Part No.:: OPA2330AIDRBTG4

Manufacturer:: Texas Instruments

Package:: 8-VDFN Exposed Pad

Datasheet:: OPA2330AIDRBTG4.pdf

Description:: IC OPAMP CHOPPER 350KHZ RRO 8SON

In Stock:: 2430

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2330AIDRBTG4 Specifications

Package/Case:
8-VDFN Exposed Pad
Packaging:
Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
CMOS, Zero-Drift
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
0.16V/µs
GainBandwidthProduct:
350 kHz
-3dbBandwidth:
-
Current-InputBias:
200 pA
Voltage-InputOffset:
8 µV
Current-Supply:
21µA (x2 Channels)
Current-Output/Channel:
5 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA2330AIDRBTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2330AIDRBTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2330AIDRBTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2330AIDRBTG4 information

Views：

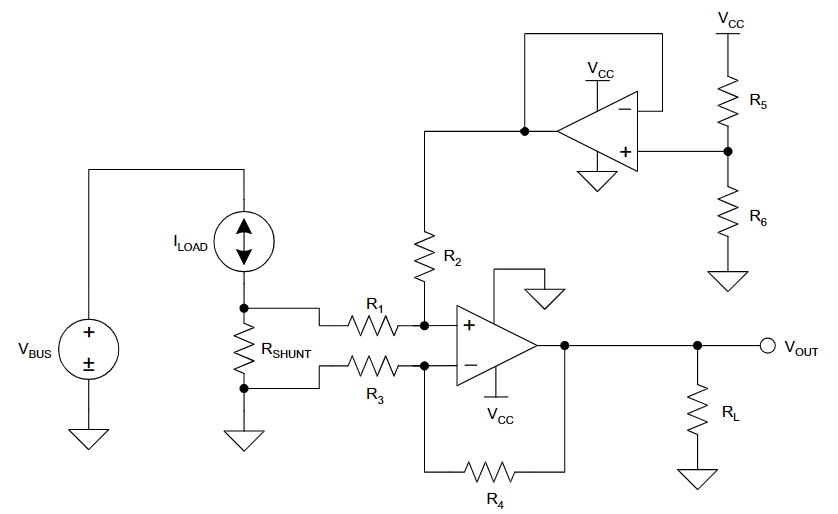

OPA2330AIDRBTG4 Typical application Circuitry

OPA2330AIDRBTG4

The OPA2330AIDRBTG4 is a precision operational amplifier known for its ultra-low power consumption and low offset voltage. This makes it ideal for battery-powered applications, precision sensing, and portable instrumentation where energy efficiency and accuracy are critical.

Key Characteristics of OPA2330AIDRBTG4:

- Ultra-Low Power Consumption: Essential for battery-operated devices.

- Low Offset Voltage: Enhances accuracy in precision applications.

- Rail-to-Rail Input/Output: Provides maximum dynamic range, especially in low voltage operations.

Application Scenario - Portable Electrocardiogram (ECG) Device:

In this example, we will explore using the OPA2330AIDRBTG4 in a portable ECG device circuit.

Circuit Design Details:

1. Power Supply Configuration: Connect Pin 8 (V+) to a positive power source and Pin 4 (V-) to the ground or a negative power source. For a portable ECG, a 3V battery is commonly used.

2. ECG Signal Input: Attach the ECG electrode signal to Pin 3 (non-inverting input) of the OPA2330AIDRBTG4. This allows for precise amplification of the ECG signal.

3. Gain Adjustment: Place a resistor (R1) between Pin 1 (output) and Pin 2 (inverting input) to set the amplifier gain. Add another resistor (R2) from Pin 2 to the ground to fine-tune the gain.

4. Signal Output: The amplified ECG signal can be obtained from Pin 1 and further processed or displayed.

5. Grounding Strategy: Ensure Pin 4 is properly grounded to minimize noise and improve the quality of the ECG signal.

Design Considerations with OPA2330AIDRBTG4:

- Stable Power Supply: As the OPA2330AIDRBTG4 is used in precision applications, a stable and clean power supply is vital.

- Noise Minimization: Implement strategies to reduce noise, as the low noise feature of the OPA2330AIDRBTG4 is crucial in medical applications.

- Thermal Considerations: Be mindful of the thermal aspects, as changes in temperature can impact the performance of precision components.

- PCB Layout Optimization: Design the PCB to minimize noise and ensure signal integrity, a key consideration when working with high-precision amplifiers like the OPA2330AIDRBTG4.

In summary, the OPA2330AIDRBTG4 operational amplifier is an excellent choice for energy-efficient and accurate applications, such as in portable ECG devices. When designing circuits with the OPA2330AIDRBTG4, it is essential to focus on power supply stability, noise reduction, thermal management, and effective PCB design to fully harness the amplifier's capabilities.
