Texas Instruments OPA2330AIDRBT

Part No.:: OPA2330AIDRBT

Manufacturer:: Texas Instruments

Package:: 8-VDFN Exposed Pad

Datasheet:: OPA2330AIDRBT.pdf

Description:: IC OPAMP ZERO-DRIFT 2 CIRC 8SON

In Stock:: 124

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2330AIDRBT Specifications

Package/Case:
8-VDFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
CMOS, Zero-Drift
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
0.16V/µs
GainBandwidthProduct:
350 kHz
-3dbBandwidth:
-
Current-InputBias:
200 pA
Voltage-InputOffset:
8 µV
Current-Supply:
21µA (x2 Channels)
Current-Output/Channel:
5 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA2330AIDRBT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2330AIDRBT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2330AIDRBT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2330AIDRBT information

Views：

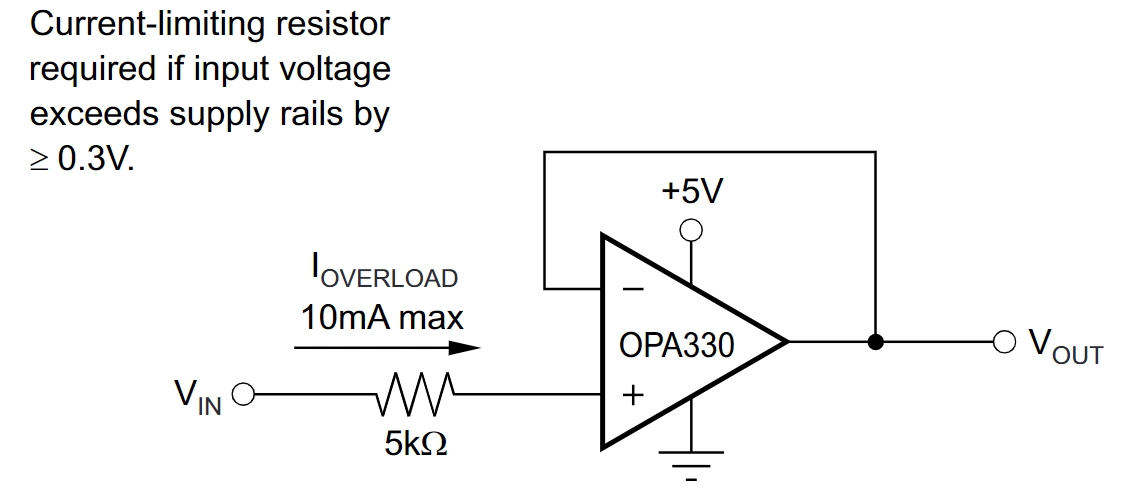

OPA2330AIDRBT Typical application Circuitry

OPA2330AIDRBT

The OPA2330AIDRBT is a precision operational amplifier, recognized for its ultra-low power consumption and minimal offset voltage. It's highly suitable for applications demanding energy efficiency and precision, such as portable medical devices, sensor interfaces, and battery-powered instrumentation.

Key Features of OPA2330AIDRBT:

- Ultra-Low Power Consumption: Ideal for extending battery life in portable and battery-powered applications.

- Low Offset Voltage: Enhances accuracy in high-precision applications.

- Rail-to-Rail Input/Output: Useful for maximizing dynamic range in low-voltage operations.

Application Scenario - Battery-Powered Light Sensor System:

A suitable application for the OPA2330AIDRBT is a battery-powered light sensor system, commonly used in environmental monitoring.

Circuit Design Details:

1. Power Supply Connection: Connect Pin 8 (V+) of the OPA2330AIDRBT to a positive power source, such as a 5V battery, and Pin 4 (V-) to the ground. This is typical for portable sensor systems.

2. Light Sensor Integration: Attach the output of the light sensor to Pin 3 (non-inverting input of the first amplifier) of the OPA2330AIDRBT. Accurate amplification of the sensor signal is crucial.

3. Gain Configuration: Place a resistor (R1) between Pin 1 (output of the first amplifier) and Pin 2 (inverting input of the first amplifier) to set the amplifier's gain. Another resistor (R2) from Pin 2 to ground adjusts the gain further.

4. Signal Output: The amplified light sensor signal can be obtained from Pin 1, ready for further processing or conversion to digital format.

5. Utilization of Second Amplifier: Use the second amplifier within OPA2330AIDRBT (Pins 5, 6, and 7) for additional signal processing or to accommodate another sensor input.

6. Grounding Practice: Ensure that Pin 4 is properly grounded to minimize noise and improve overall stability.

Design Considerations with OPA2330AIDRBT:

- Stable Power Source: The performance of OPA2330AIDRBT is sensitive to power supply quality. A stable and noise-free power source is crucial.

- Noise Management: Implement noise reduction strategies to make the most of the low noise feature of the OPA2330AIDRBT, particularly important in sensor applications.

- Thermal Stability: Consider the thermal environment, as temperature fluctuations can affect the performance of precision components.

- PCB Layout Efficiency: Design the PCB to minimize noise and ensure signal integrity, especially important in high-precision applications like a light sensor system using OPA2330AIDRBT.

In conclusion, the OPA2330AIDRBT operational amplifier is an excellent choice for low-power, high-precision applications such as battery-powered light sensor systems. When designing circuits with the OPA2330AIDRBT, it is essential to focus on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout to fully utilize the capabilities of the amplifier.
