Texas Instruments OPA228UG4

Part No.:: OPA228UG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA228UG4.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 3114

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA228UG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
11V/µs
GainBandwidthProduct:
33 MHz
-3dbBandwidth:
-
Current-InputBias:
2.5 nA
Voltage-InputOffset:
5 µV
Current-Supply:
3.7mA
Current-Output/Channel:
45 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA228UG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA228UG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA228UG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA228UG4 information

Views：

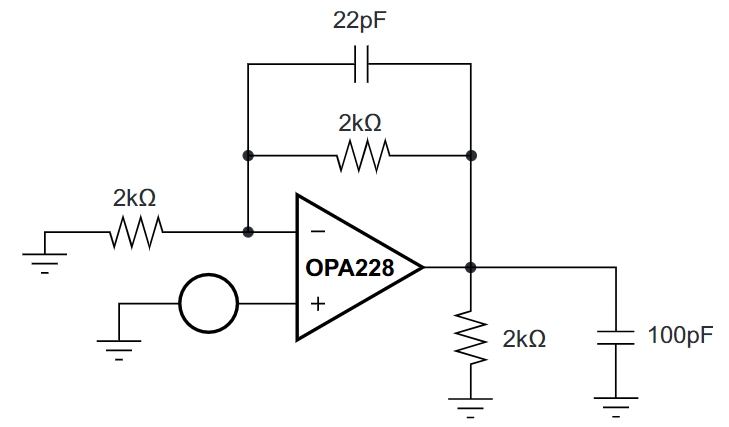

OPA228UG4 Typical application Circuitry

OPA228UG4

The OPA228UG4 is a high-precision operational amplifier, acclaimed for its excellent balance of speed, noise, and precision. It's particularly effective in applications that demand accuracy and quick response, such as test and measurement equipment, medical devices, and professional audio systems.

Key Features of OPA228UG4:

- Precision: The OPA228UG4 offers outstanding accuracy and minimal drift over time and temperature.

- Low Noise: This feature is crucial in applications involving small signal amplification, where noise can significantly affect performance.

- High-Speed: Suitable for scenarios where fast signal processing is required.

Application Scenario - Medical Device Signal Amplification:

For this scenario, let's focus on using the OPA228UG4 in a heart rate monitor circuit, a common application in medical devices.

Circuit Connection Details:

1. Powering the Device: Connect Pin 8 (V+) and Pin 4 (V-) of the OPA228UG4 to your power supply. Generally, a range of ±5V to ±15V is employed, contingent upon the particular needs of your system.

2. Input Connection: Attach the heart rate sensor's output to Pin 3 (non-inverting input) of the OPA228UG4. This ensures that the small signals from the sensor are accurately amplified.

3. Feedback Network: Install a feedback resistor (R1) between Pin 6 (output) and Pin 2 (inverting input) to set the desired gain. Include a capacitor (C1) in parallel with R1 to filter high-frequency noise.

4. Output Configuration: Extract the processed signal from Pin 6. This signal can then be directed to further processing stages, like analog-to-digital conversion for digital displays.

5. Grounding: Ensure Pin 5 is properly grounded to minimize noise and interference.

Design Considerations with OPA228UG4:

- Stability and Noise Reduction: Given the sensitive nature of medical signals, ensure the power supply is stable and incorporate filtering to minimize noise.

- Thermal Management: Pay attention to thermal effects on the OPA228UG4, as temperature variations can impact precision.

- Impedance Balancing: Proper input and output impedance matching are crucial to maintain signal integrity and minimize distortion.

- PCB Layout: A thoughtful PCB layout is vital. It should aim to minimize noise pickup and parasitic effects, which are critical in high-precision applications like those involving the OPA228UG4.

In conclusion, the OPA228UG4 operational amplifier is highly suited for precision applications where noise, speed, and accuracy are critical. Its robust feature set makes it ideal for delicate applications like medical device signal processing. When designing circuits with the OPA228UG4, careful consideration of power supply integrity, thermal factors, impedance matching, and PCB layout are imperative to fully leverage the op-amp's capabilities.
