Burr Brown OPA2277UA

Part No.:: OPA2277UA

Manufacturer:: Burr Brown

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2277UA.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2641

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2277UA Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.8V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
4 nA
Voltage-InputOffset:
20 µV
Current-Supply:
790µA (x2 Channels)
Current-Output/Channel:
35 mA
Voltage-SupplySpan(Min):
4 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2277UA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2277UA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2277UA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2277UA information

Views：

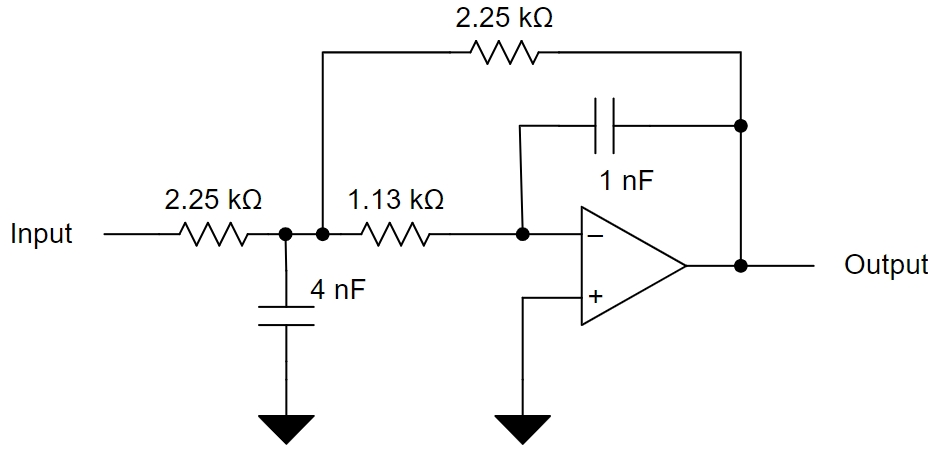

OPA2277UA Typical application Circuitry

OPA2277UA

The OPA2277UA is a precision operational amplifier (op-amp) known for its high accuracy and stability. It is frequently employed in numerous applications that call for accurate signal amplification. Let's explore its functionality, applications, key parameters, specific circuit applications, and design considerations.

Functionality of OPA2277UA

- Precision Operational Amplifier: The OPA2277UA serves as a precision op-amp, providing accurate signal amplification with low noise.

- Dual Amplifier Configuration: This chip contains two independent op-amp units, allowing for various dual-amplifier configurations in a single package.

- Low Offset Voltage: Characterized by its low offset voltage, it ensures minimal error in signal amplification.

Application Scenarios

- Data Acquisition Systems: Commonly used in data acquisition for its precision.

- Control Systems: Perfect for industrial applications involving feedback and control systems.

- Instrumentation: Used in precision instruments like digital multimeters.

Parameters and Features

- Broad Supply Range: Capable of functioning at various supply voltages.

- Low Noise Performance: Its low noise makes it suitable for sensitive applications.

- High Input Impedance: Ensures minimal loading on the input source.

Circuit Example: Precision Voltage Follower

1. Power Supply Connection: Join pins 8 and 4 of the OPA2277UA with the positive and negative supplies, respectively.

2. Input Signal: Attach the input signal to the non-inverting input of the first op-amp (pin 3).

3. Feedback Loop: Directly connect the output of the first op-amp (pin 1) to its inverting input (pin 2) to create a voltage follower.

4. Output: The output will be available at pin 1, mirroring the input voltage.

5. Bypass Capacitors: To reduce noise, place capacitors in close proximity to the power pins.

6. Grounding: Ensure proper grounding to avoid noise and instability.

Design Considerations

- Power Supply Stability: To keep the OPA2277UA's precision, make sure the power supply is stable.

- Thermal Management: Adequate heat sinking may be necessary, depending on the operating conditions.

- PCB Layout: Careful layout planning is crucial to minimize noise and ensure stability, particularly in high-precision applications.

The precision and dependability of your system can be significantly improved by using the OPA2277UA in your circuit design. Attention to power supply quality, thermal management, and careful PCB layout is key to leveraging the full potential of the OPA2277UA. Remember that the choice of external components and overall circuit topology will play a significant role in achieving the desired performance.
