Texas Instruments OPA2228UA/2K5G4

Part No.:: OPA2228UA/2K5G4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2228UA/2K5G4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2492

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2228UA/2K5G4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
11V/µs
GainBandwidthProduct:
33 MHz
-3dbBandwidth:
-
Current-InputBias:
2.5 nA
Voltage-InputOffset:
10 µV
Current-Supply:
3.7mA (x2 Channels)
Current-Output/Channel:
45 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2228UA/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2228UA/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2228UA/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2228UA/2K5G4 information

Views：

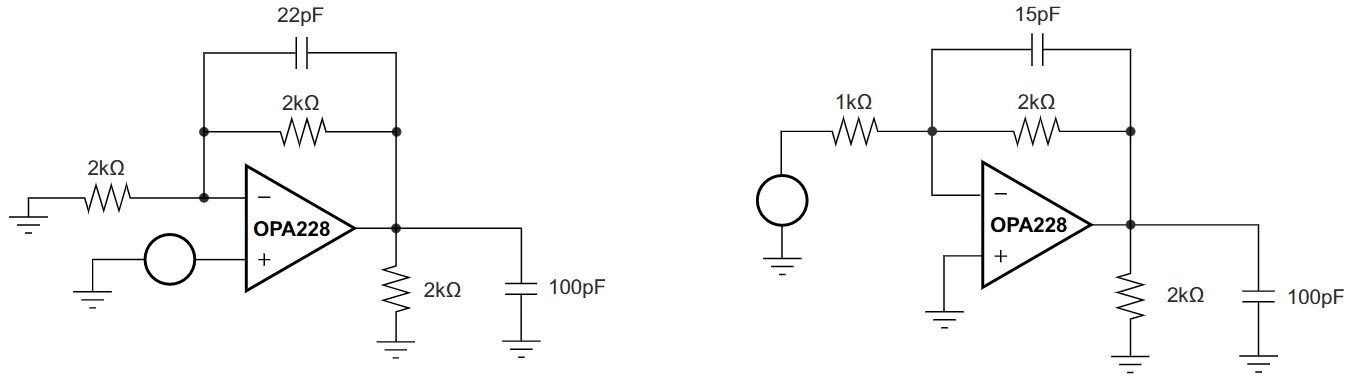

OPA2228UA/2K5G4 Typical application Circuitry

OPA2228UA 2K5G4

The OPA2228UA/2K5G4 is a high-precision, low-noise operational amplifier (op-amp) that provides excellent accuracy and stability. It's part of the OPAx228 series of op-amps known for their dual-channel configuration, which makes them particularly suited for applications requiring dual amplification stages within a single package.

Key Features and Specifications

- High Precision: The OPA2228UA/2K5G4 offers very low offset voltage and drift, ensuring high accuracy in measurements and signal processing.

- Low Noise: Its low noise performance is ideal for sensitive applications like audio amplification and sensor signal conditioning.

- Dual Operational Amplifiers: Being a dual op-amp, it allows for compact circuit designs, saving space and reducing the number of external components.

- Broad Supply Voltage variety: To accommodate different application needs, the device supports a wide variety of supply voltages.

Application Scenario: Active Low-Pass Filter

One common application of the OPA2228UA/2K5G4 is in constructing an active low-pass filter. This type of filter is widely used in signal processing to remove high-frequency noise from a signal, such as in audio applications and data signal processing.

Circuit Connection Detail

- Input Connection: The input signal is connected to the non-inverting input (Pin 3) of the first op-amp within the OPA2228UA/2K5G4 package. This configuration ensures that the signal is buffered without any phase inversion.

- Feedback Network for Filtering: A resistor (R1) and a capacitor (C1) are utilized in the feedback loop between the first op-amp's output (Pin 1) and its inverting input (Pin 2) to construct the low-pass filter. The filter's cutoff frequency is determined by the values of R1 and C1.

- Output and Bypass: The filtered signal is taken from the output (Pin 1) of the first op-amp. A bypass capacitor (C2) may be placed between the power supply pins (V+ at Pin 8 and V- at Pin 4) close to the OPA2228UA/2K5G4 to reduce noise.

- Dual-Channel Utilization: The second op-amp within the OPA2228UA/2K5G4 package can be used for additional signal processing stages, such as further filtering or amplification, leveraging the dual-channel capability for efficient circuit design.

Design Considerations

When designing an active low-pass filter with the OPA2228UA/2K5G4, several factors must be carefully considered:

- Cutoff Frequency Calculation: The cutoff frequency (f_c) of the filter is determined by the formula $f_c = 1/(2\pi R1C1)$. Selecting appropriate values for R1 and C1 is critical to achieve the desired filtering effect.

- Power Supply Quality: The performance of precision op-amps like the OPA2228UA/2K5G4 can be significantly influenced by power supply noise. Using decoupling capacitors and ensuring a clean power supply are essential steps.

- Thermal Considerations: Although the OPA2228UA/2K5G4 is designed for stability, all precision op-amps generate heat. Proper thermal management practices should be followed, especially in designs with high ambient temperatures or confined spaces.

- Input and Output Impedance Matching: To prevent signal attenuation and ensure optimal performance, it's important to match the input and output impedances of the filter circuit with the preceding and following stages.

Using the OPA2228UA/2K5G4 in an active low-pass filter application capitalizes on its precision and low noise characteristics, enhancing signal quality and integrity. Proper design and attention to detail ensure that the OPA2228UA/2K5G4 performs optimally, delivering high-quality filtering in a compact and efficient manner.
