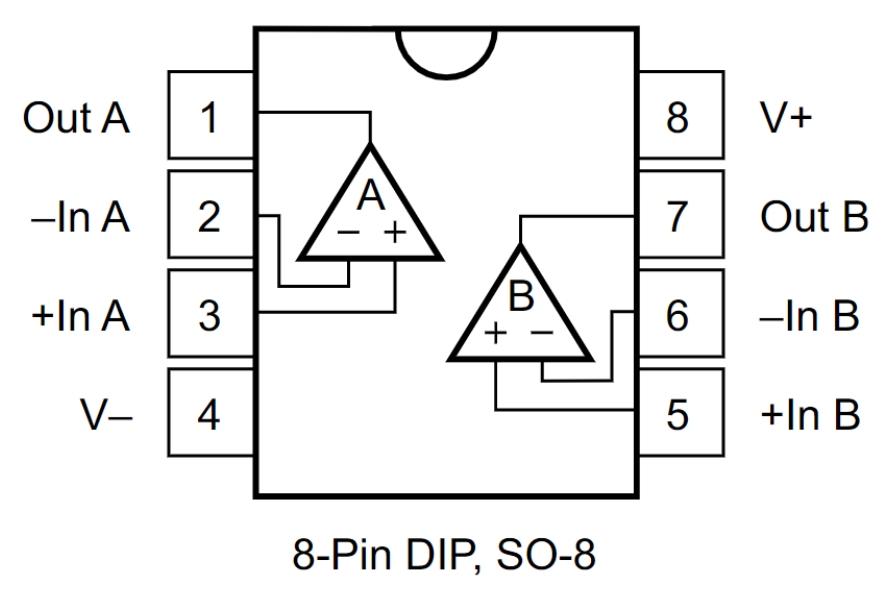

Burr Brown OPA2132UG4

Part No.:: OPA2132UG4

Manufacturer:: Burr Brown

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2132UG4.pdf

Description:: IC OPAMP JFET 2 CIRCUIT 8SOIC

In Stock:: 3778

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2132UG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
OPAx132
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
2
OutputType:
-
SlewRate:
20V/µs
GainBandwidthProduct:
8 MHz
-3dbBandwidth:
-
Current-InputBias:
5 pA
Voltage-InputOffset:
250 µV
Current-Supply:
4mA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

OPA2132UG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2132UG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2132UG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2132UG4 information

Views：

OPA2132UG4 Typical application Circuitry

OPA2132UG4

The OPA2132UG4 is an operational amplifier known for its high performance in audio applications. It's often used in professional audio equipment, owing to its excellent sound quality and low distortion. Let's explore its features, applications, and a specific circuit implementation.

1. OPA2132UG4 Functionality: The OPA2132UG4 is primarily designed for high-fidelity audio applications. It stands out for its low noise and low distortion characteristics, making it suitable for high-quality sound systems.

2. OPA2132UG4 Applications: This chip is ideal for use in audio amplifiers, active filters, and DACs (Digital-to-Analog Converters) in high-end audio equipment, where maintaining audio integrity is crucial.

3. OPA2132UG4 Key Parameters:

- Low Noise: Essential for clear audio reproduction without unwanted background noise.

- Low Total Harmonic Distortion (THD): Ensures the audio output is free from distortion.

- High Slew Rate: Important for handling fast-changing audio signals.

- Wide Bandwidth: Accommodates a broad spectrum of audio frequencies.

4. Circuit Implementation (Headphone Amplifier):

- Input Connection (Pin 3): Connect the audio source to the non-inverting input (Pin 3).

- Grounding (Pin 2): Ground the inverting input (Pin 2) via a resistor.

- Feedback Network (Pins 1 and 2): A feedback resistor between the output (Pin 1) and inverting input (Pin 2) sets the gain.

- Power Supply (Pins 4 and 8): Connect the positive and negative power supply to V+ (Pin 8) and V- (Pin 4).

- Output (Pin 1): The amplified signal for the headphones is taken from this pin.

5. Design Considerations:

- Stable Power Supply: Use a regulated power supply to minimize noise.

- Proper Gain Setting: Calculate the values of feedback and grounding resistors for the desired gain.

- Load Compatibility: Ensure the amplifier can drive the specific headphones used.

- PCB Layout: A carefully designed PCB minimizes interference and preserves audio quality.

In summary, the OPA2132UG4 is a top choice for audio applications where sound quality is paramount. Designing circuits with this op-amp requires careful attention to power supply noise, gain configuration, load compatibility, and PCB layout to fully leverage its audio-enhancing capabilities.
