Texas Instruments OPA2132UAG4

Part No.:: OPA2132UAG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2132UAG4.pdf

Description:: IC OPAMP JFET 2 CIRCUIT 8SOIC

In Stock:: 3340

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2132UAG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
OPAx132
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
2
OutputType:
-
SlewRate:
20V/µs
GainBandwidthProduct:
8 MHz
-3dbBandwidth:
-
Current-InputBias:
5 pA
Voltage-InputOffset:
500 µV
Current-Supply:
4mA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

OPA2132UAG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2132UAG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2132UAG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2132UAG4 information

Views：

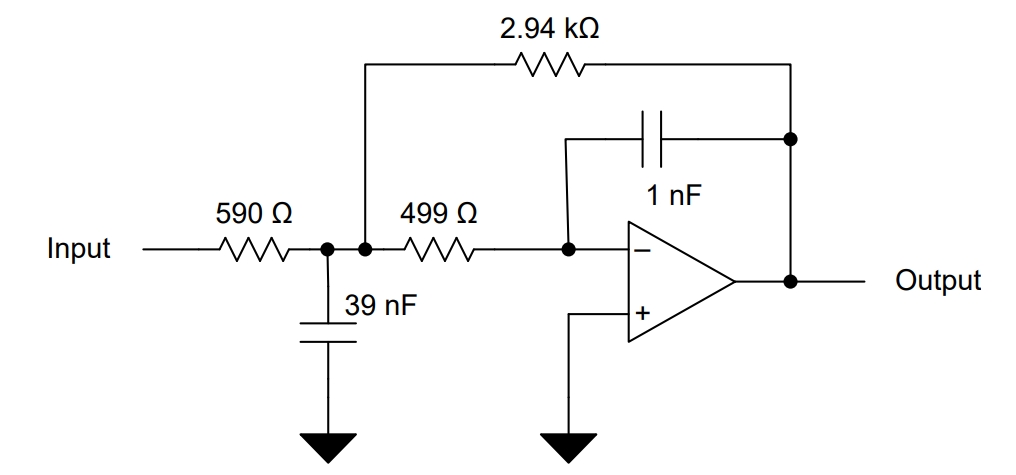

OPA2132UAG4 Typical application Circuitry

OPA2132UAG4

The OPA2132UAG4 is an operational amplifier (op-amp) tailored for high-fidelity audio applications, celebrated for its exceptional sound quality and minimal distortion. This component finds extensive use in professional and audiophile-grade audio equipment. Let's delve into its core features, potential applications, key parameters, and a detailed implementation in a specific circuit.

1. Functionality: The OPA2132UAG4 is primarily leveraged in audio circuits where fidelity and clarity are paramount. It's distinguished by its ability to deliver audio signals with minimal noise and distortion, enhancing overall sound quality.

2. Applications: Commonly used in high-end audio systems, the OPA2132UAG4 is perfect for applications such as headphone amplifiers, audio mixing consoles, and DACs (Digital-to-Analog Converters), where preserving audio integrity is essential.

3. Key Parameters:

- Ultra-Low Distortion: Guarantees pristine audio reproduction, free from unwanted alterations.

- High Slew Rate: Facilitates handling of rapid signal changes, crucial in dynamic audio applications.

- Broad Frequency Response: Covers a wide range of audio frequencies, supporting diverse audio contents.

- Low Noise Floor: Reduces the presence of background static or hiss, ensuring clarity.

4. Circuit Implementation (Headphone Amplifier):

- Non-Inverting Input (Pin 3): The audio source connects to the non-inverting input (Pin 3) to maintain signal polarity.

- Grounding the Inverting Input (Pin 2): A resistor links the inverting input (Pin 2) to ground, stabilizing the circuit.

- Feedback Network (Pins 1 and 2): A feedback loop is established between the output (Pin 1) and the inverting input (Pin 2) to control the amplifier's gain.

- Power Supply Connections (Pins 4 and 8): The op-amp is powered by connecting Pin 8 to the positive supply and Pin 4 to the negative supply.

- Audio Output (Pin 1): The amplified audio output for headphones is taken from Pin 1.

5. OPA2132UAG4 Design Considerations:

- Regulated Power Supply: To reduce noise, it is essential to have a consistent and clean power supply.

- Appropriate Gain Setting: The values of feedback and the grounding resistors should be carefully selected to achieve the desired amplification.

- Ensuring Load Compatibility: The output should be capable of driving the impedance of the headphones used.

- Optimized PCB Layout: A well-planned PCB layout is essential to reduce electronic interference and maintain audio signal integrity.

In summary, the OPA2132UAG4 stands out as an exceptional choice for high-quality audio applications. Its design and implementation in circuits require meticulous attention to details like power supply quality, gain settings, load handling, and circuit board layout to fully capitalize on its audio enhancement capabilities.
