Texas Instruments OPA211IDRGR

Part No.:: OPA211IDRGR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA211IDRGR.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2717

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA211IDRGR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
27V/µs
GainBandwidthProduct:
80 MHz
-3dbBandwidth:
-
Current-InputBias:
60 nA
Voltage-InputOffset:
30 µV
Current-Supply:
3.6mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
4.5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA211IDRGR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA211IDRGR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA211IDRGR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA211IDRGR information

Views：

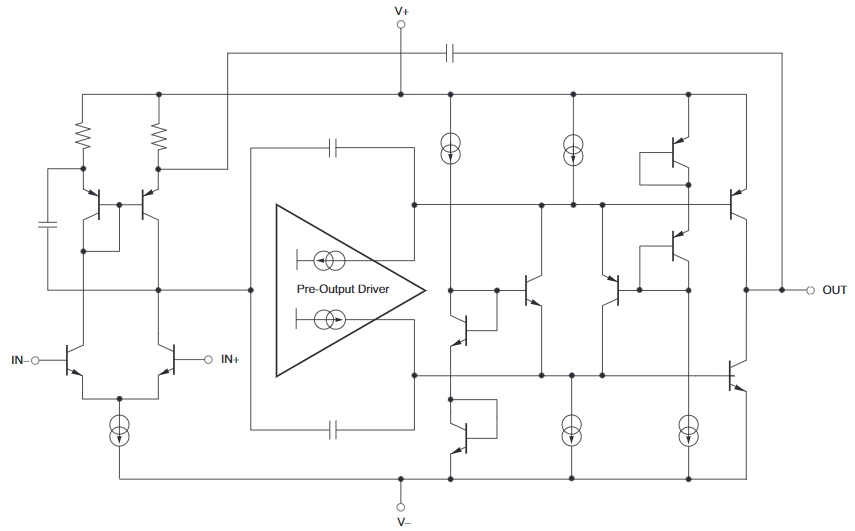

OPA211IDRGR Typical application Circuitry

OPA211IDRGR

The OPA211IDRGR is a variant of the OPA211 series, which are high-precision operational amplifiers (op-amps) designed by Texas Instruments. These op-amps are celebrated for their exceptional combination of low noise, high speed, and precision amplification capabilities, making them ideal for a broad spectrum of applications.

Key Features of the OPA211IDRGR

- Low Noise: Ensures high-fidelity signal amplification, crucial for sensitive audio and precision instrumentation applications.

- High Speed: Offers quick response times, suitable for rapid signal processing needs.

- Precision Performance: Features low offset voltage and low drift, enhancing the accuracy and stability of signal amplification.

- Wide Supply Voltage Range: Provides flexibility in system design, accommodating various power supply configurations.

- Low Distortion: Minimizes harmonic distortion, making it ideal for high-quality audio applications.

Application Scenario: Precision Current Source

One application for the OPA211IDRGR is in creating a precision current source, which can be used in calibration systems, laboratory test equipment, or anywhere a stable and accurate current source is needed.

Detailed Circuit Connection

1.Decide on the Current Value: Attach a precision resistor (Rset) between the inverting input (Pin 2) and the output (Pin 6). The reference voltage applied to the non-inverting input (Pin 3) affects the current output, which is determined by the value of Rset.

2.Reference Voltage Input: Apply a stable and precise reference voltage to the non-inverting input (Pin 3) of the OPA211IDRGR. This voltage sets the desired current level through the formula Iout = Vref / Rset.

3.Load Connection: Connect the load for which the current is to be sourced in series with the output (Pin 6). This configuration ensures that the current driven through the load is accurately controlled by the op-amp.

4.Power Supply Management: Power the OPA211IDRGR by connecting a positive voltage to Pin 7 and a negative voltage to Pin 4. To keep the current source precise, it is essential to have a steady and noise-free power supply.

5.Decoupling capacitors: To reduce power supply noise and guarantee steady functioning of the OPA211IDRGR, place decoupling capacitors next to pins 4 and 7 of the power supply.

Design Considerations

When designing a precision current source circuit with the OPA211IDRGR, several key factors must be carefully considered:

- Power Supply Purity: A clean and stable power supply is essential to leverage the low noise and precision performance of the OPA211IDRGR.

- Component Precision: Use high-quality, precision components for Rset and the reference voltage source to ensure the accuracy of the current output.

- Thermal Management: Monitor the thermal behavior of the OPA211IDRGR and the power dissipated across Rset to prevent performance degradation due to overheating.

- Load Characteristics: Understand the characteristics of the load, including maximum current requirements and potential voltage drop, to ensure the circuit can deliver the required performance.

- PCB Layout: Carefully plan the PCB layout to minimize noise coupling and ensure signal integrity, particularly around the sensitive input and output pins of the OPA211IDRGR.

By meticulously addressing these design considerations, engineers can effectively utilize the OPA211IDRGR to create high-precision current sources, leveraging its precision, low noise, and efficient power consumption to achieve superior performance in calibration systems, test equipment, and other applications requiring stable and accurate current sourcing.
