Texas Instruments OPA211IDR

Part No.:: OPA211IDR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA211IDR.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA211IDR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
27V/µs
GainBandwidthProduct:
80 MHz
-3dbBandwidth:
-
Current-InputBias:
60 nA
Voltage-InputOffset:
30 µV
Current-Supply:
3.6mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
4.5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA211IDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA211IDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA211IDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA211IDR information

Views：

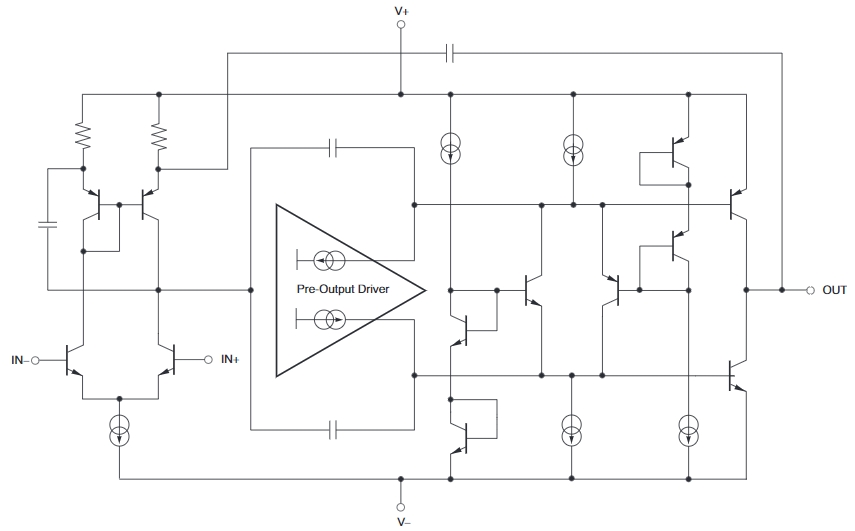

OPA211IDR Typical application Circuitry

OPA211IDR

The OPA211IDR is a precision operational amplifier (op-amp) developed by Texas Instruments, known for its excellent balance of low noise, high speed, and precision amplification capabilities.

Key Features of the OPA211IDR

- Low Noise: Ensures high-fidelity signal amplification, crucial for sensitive audio and instrumentation applications.

- High Speed: Offers fast settling times and wide bandwidth, suitable for applications requiring rapid signal processing.

- Precision Performance: Features low offset voltage and low drift, enhancing accuracy and stability in signal amplification.

- Wide Supply Voltage Range: Supports a variety of power supply configurations, offering flexibility in system design.

- Low Distortion: Minimizes harmonic distortion, ideal for high-quality audio applications.

Application Scenario: High-Fidelity Audio Pre-Amplifier

A common application for the OPA211IDR is in a high-fidelity audio pre-amplifier, where it is used to condition audio signals before they are sent to a power amplifier, ensuring the audio quality is maintained and enhanced.

Detailed Circuit Connection

1.Audio Input Connection: Connect the audio source to the non-inverting input (Pin 3) of the OPA211IDR. This setup is crucial for preserving the audio signal's integrity without introducing phase inversion.

2.Gain Configuration: To determine the required gain level, connect the inverting input (Pin 2) to the output (Pin 6) via a feedback resistor, and ground the inverting input using a different resistor. Precise resistor values are key to accurately setting the gain, impacting the overall quality of the audio amplification.

3.Power Supply Management: Power the OPA211IDR by connecting a positive voltage to Pin 7 and a negative voltage to Pin 4. A stable and clean power supply is paramount for minimizing operational noise and ensuring the accuracy of the audio signal processing.

4.Output Filtering: Optionally, implement additional filtering at the output (Pin 6) to remove any residual high-frequency noise, ensuring a clean and clear audio signal for further amplification or processing.

5.Decoupling Capacitors: To further reduce noise and give the op-amp a stable operating environment, place decoupling capacitors near to the OPA211IDR's power supply pins (pins 4 and 7).

Design Considerations

When designing a high-fidelity audio pre-amplifier with the OPA211IDR, several critical aspects must be carefully considered:

- Power Supply Purity: Ensure the power supply is free from noise and fluctuations to fully leverage the low noise and low distortion advantages of the OPA211IDR.

- Component Precision: Use high-quality, precision resistors and capacitors in the feedback loop and filtering stages to maintain signal accuracy and integrity.

- Thermal Management: Consider the thermal behavior of the OPA211IDR, especially in enclosed or compact designs, to prevent performance degradation due to heat.

- Signal Path Optimization: Design the signal path from the audio source through the OPA211IDR to the output stage to minimize losses and interference, ensuring high-quality audio processing.

- PCB Layout: Carefully plan the PCB layout to minimize noise coupling, especially around the OPA211IDR's inputs and outputs, to preserve the quality of the audio signal.

By meticulously addressing these design considerations, engineers can effectively utilize the OPA211IDR in creating sophisticated high-fidelity audio pre-amplifiers, benefiting from its precision, low noise, and efficient power consumption to achieve superior audio signal processing performance.
