Texas Instruments OPA177GS/2K5E4

Part No.:: OPA177GS/2K5E4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA177GS/2K5E4.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 3365

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA177GS/2K5E4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
600 kHz
-3dbBandwidth:
-
Current-InputBias:
500 pA
Voltage-InputOffset:
20 µV
Current-Supply:
1.3mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA177GS/2K5E4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA177GS/2K5E4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA177GS/2K5E4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA177GS/2K5E4 information

Views：

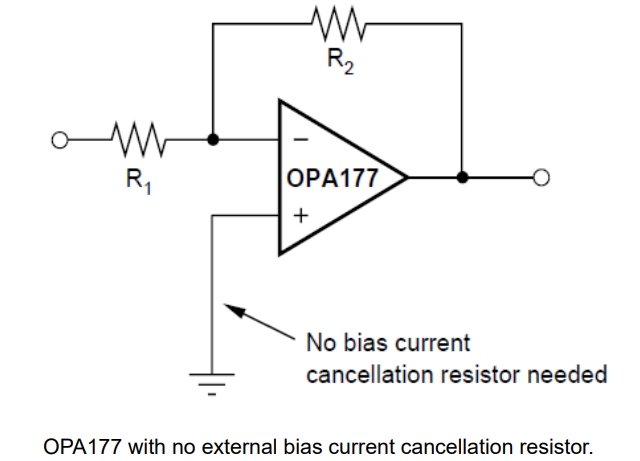

OPA177GS/2K5E4 Typical application Circuitry

OPA177GS 2K5E4

A precision operational amplifier with a low offset voltage, low noise, and great accuracy is the OPA177GS/2K5E4. It's particularly suited for applications requiring high levels of stability and precision, such as industrial controls, instrumentation, and test equipment.

Features of OPA177GS/2K5E4

1. High Precision: Offers high accuracy with low offset voltage and drift.

2. Low Noise: Suitable for applications where low noise is critical.

3. High Input Impedance: Ensures minimal loading on the input signal source.

4. Broad Supply Range: Offers versatility in a variety of applications by supporting a wide range of supply voltages.

Data Acquisition System is the application scenario

In a data acquisition system, the OPA177GS/2K5E4 can be used to amplify and filter signals from sensors before they are digitized by an ADC. Here's a detailed guide for connecting this in a data acquisition system:

Circuit Connection Details

1. Power Supply (V+ - Pin 7, V- - Pin 4):

- Supplying Operating Voltage: Connect V+ (Pin 7) to the positive power supply and V- (Pin 4) to the negative power supply. Ensure the power supply is within the voltage range specified for the OPA177GS/2K5E4.

2. Non-Inverting Input (IN+ - Pin 3):

- Sensor Signal Input: Connect IN+ (Pin 3) to the output of the sensor. Use a coupling capacitor if DC isolation is needed.

3. Inverting Input (IN- - Pin 2):

- Feedback and Gain Setting: Connect IN- (Pin 2) to a feedback network consisting of resistors and capacitors. This network sets the gain and filters the signal as needed.

4. Output (OUT - Pin 6):

- Signal Output to ADC: Connect OUT (Pin 6) to the input of an ADC or the next stage in your signal processing chain.

Design Considerations

When designing a circuit with the OPA177GS/2K5E4, consider the following:

1. Power Supply Decoupling: Use decoupling capacitors close to the power pins to ensure a stable and clean power supply.

2. Gain and Bandwidth Configuration: Carefully design the feedback network to achieve the desired gain and bandwidth while maintaining stability and precision.

3. Input Protection: Include input protection mechanisms, such as clamping diodes, to prevent damage to the OPA177GS/2K5E4 from voltage spikes or static discharge.

4. Noise Minimization: Keep the layout compact and use proper shielding and grounding techniques to minimize noise pickup and maximize signal integrity.

5. Thermal Management: Ensure proper heat dissipation, especially if the OPA177GS/2K5E4 is operated near its maximum supply voltage or output current limits.

By carefully addressing these considerations and utilizing the functionalities and pin configurations of the OPA177GS/2K5E4, one can effectively integrate this precision operational amplifier into sensitive applications like data acquisition systems. The OPA177GS/2K5E4, with its high precision, low noise, and wide supply range, is an excellent choice for systems requiring accurate and stable signal amplification.
