Texas Instruments OPA129UB

Part No.:: OPA129UB

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA129UB.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2023

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA129UB Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
Difet®
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
2.5V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
0.03 pA
Voltage-InputOffset:
500 µV
Current-Supply:
1.2mA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA129UB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA129UB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA129UB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA129UB information

Views：

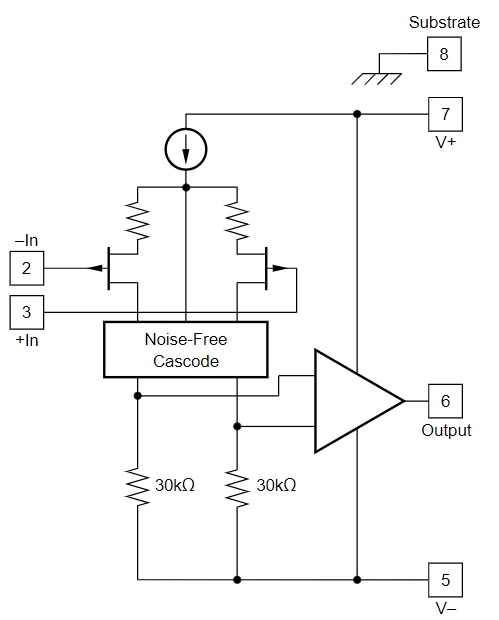

OPA129UB Typical application Circuitry

OPA129UB

The OPA129UB is a high-precision operational amplifier (op-amp) known for its ultra-low bias current, high input impedance, and low noise characteristics. It's designed by Texas Instruments and is particularly suited for applications requiring high-accuracy signal amplification with minimal input bias, such as photodiode amplifiers, precision current measurements, and electrochemical sensors.

Key Features of the OPA129UB

- Ultra-Low Bias Current: Ideal for circuits where the input signal source has a high impedance, ensuring minimal signal distortion.

- High Input Impedance: Reduces loading effects by maintaining the integrity of the input signal.

- Low Noise: Reduces signal interference, crucial for sensitive measurement applications.

- Wide Supply Voltage Range: Accommodates a variety of power configurations, enhancing flexibility in system design.

- Stable Performance: Offers reliable operation across a wide range of temperatures and supply voltages, ensuring consistent performance in diverse conditions.

Application Scenario: Photodiode Amplifier for Light Intensity Measurement

A typical application for the OPA129UB is in a photodiode amplifier circuit, where it is used to convert the current output from a photodiode into a voltage signal, enabling precise measurement of light intensity.

Detailed Circuit Connection

1.Photodiode Interface: Connect the anode of a photodiode to ground and its cathode to the inverting input (Pin 2) of the OPA129UB. This reverse-biased configuration is essential for accurately capturing the photodiode's current response to light.

2.Transimpedance Amplification: To convert the photodiode current to a measurable voltage, connect a feedback resistor from the output (Pin 6) to the inverting input (Pin 2). The value of this resistor is crucial, as it determines the gain of the amplifier and thus the sensitivity of the light intensity measurement.

3.Feedback Capacitor for Stability: Add a feedback capacitor in parallel with the feedback resistor to enhance the circuit's stability and bandwidth, addressing the capacitance of the photodiode and preventing oscillations.

4.Power Supply Configuration: Supply power to the OPA129UB by connecting a positive voltage to Pin 7 and a negative voltage to Pin 4. Ensuring a stable and clean power supply is paramount for minimizing operational noise and maximizing the accuracy of light intensity measurements.

5.Signal Filtering and Output: Optionally, implement additional low-pass filtering at the output (Pin 6) to remove high-frequency noise. The filtered output can then be sent to an analog-to-digital converter (ADC) or other later processing stages.

Design Considerations

When designing a photodiode amplifier circuit with the OPA129UB, several critical aspects must be considered:

- Power Supply Purity: Ensure the power supply is free from noise and fluctuations to leverage the low noise feature of the OPA129UB fully.

- Component Precision: To preserve signal stability and accuracy, use premium precision resistors and capacitors in the feedback loop.

- Photodiode Characteristics: Account for the characteristics of the photodiode, such as its dark current and capacitance, to optimize the amplifier design for accurate light measurement.

- Thermal Management: Consider the thermal behavior of the OPA129UB and surrounding components to prevent performance degradation due to temperature variations.

- Signal Path Optimization: Design the signal path from the photodiode through the OPA129UB to the output stage to minimize losses and interference, ensuring high-quality signal processing.

By meticulously addressing these design considerations, engineers can effectively leverage the capabilities of the OPA129UB in creating high-precision photodiode amplifiers, benefiting from its ultra-low bias current, low noise, and high input impedance to achieve superior light intensity measurement performance.
