Name: OPA111AM
Brand: Texas Instruments
SKU: OPA111AM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments OPA111AM

Part No.:: OPA111AM

Manufacturer:: Texas Instruments

Package:: TO-99-8 Metal Can

Datasheet:: OPA111AM.pdf

Description:: IC INST AMP 1 CIRCUIT TO99-8

In Stock:: 3365

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA111AM Specifications

Package/Case:
TO-99-8 Metal Can
Packaging:
Bulk,Tube
Series:
Difet®
ProductStatus:
Obsolete
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
2V/µs
GainBandwidthProduct:
2 MHz
-3dbBandwidth:
-
Current-InputBias:
0.8 pA
Voltage-InputOffset:
100 µV
Current-Supply:
2.5mA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Through Hole

OPA111AM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA111AM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA111AM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA111AM information

Views：

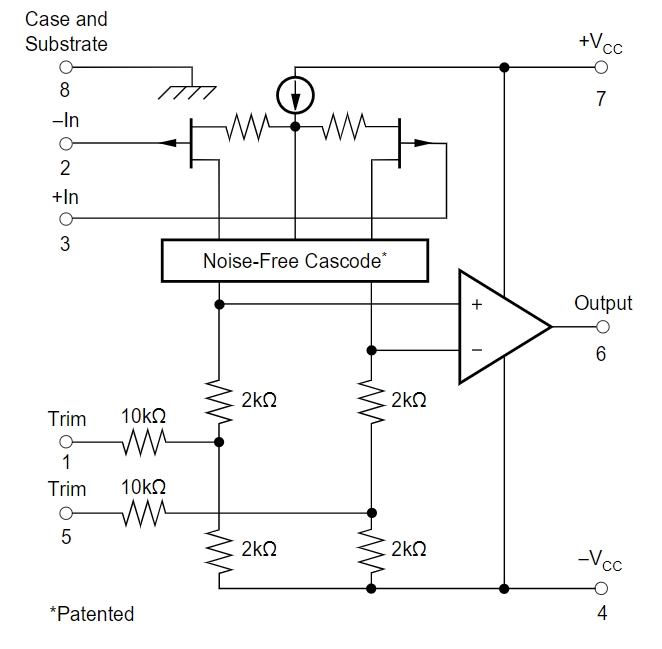

OPA111AM Typical application Circuitry

OPA111AM

The OPA111AM is a precision operational amplifier (op-amp) known for its high accuracy, low noise, and exceptional stability. It is designed for applications requiring precise signal conditioning, such as instrumentation, test equipment, and high-fidelity audio applications.

Key Features of the OPA111AM

- Low Offset Voltage: Ensures high accuracy in signal amplification, critical for precision measurements.

- Low Temperature Drift: Provides stable performance across a wide range of temperatures, enhancing reliability in fluctuating conditions.

- High Input Impedance: Minimizes loading on the signal source, preserving the original signal.

- Low Noise: Ideal for applications where signal purity is crucial, such as audio processing or sensitive instrumentation.

- Wide Supply Voltage Range: Accommodates various power supply configurations, offering flexibility in system design.

Application Scenario: High-Precision Instrumentation Amplifier

A common application for the OPA111AM is in a high-precision instrumentation amplifier configuration, used for amplifying small differential signals in the presence of large common-mode voltages, such as in medical instrumentation or strain gauge sensors.

Detailed Circuit Connection

Differential Signal Input: Connect the outputs of a precision sensor (e.g., a strain gauge) to the inverting (Pin 2) and non-inverting (Pin 3) inputs of the first OPA111AM op-amp. Accurate signal capture is essential for maintaining the fidelity of the measurement.

Gain Setting: Establish a feedback loop for the first OPA111AM by connecting a precision resistor between its output (Pin 6) and its inverting input (Pin 2). A second precision resistor connects from Pin 2 to ground. This setup is critical for setting the initial stage gain while preserving signal accuracy.

Buffering and Further Amplification: Utilize a second OPA111AM as a buffer to isolate the first stage and provide additional gain if necessary. The output of the first op-amp connects to the non-inverting input of the second OPA111AM (Pin 3), with a similar feedback loop established to control gain. This stage ensures high input impedance and minimal loading on the first stage.

Power Supply Configuration: Power the OPA111AMs by connecting a positive voltage to Pin 7 and a negative voltage to Pin 4. Ensuring a stable and clean power supply is vital for minimizing operational noise and ensuring the accuracy of the amplification.

Output to ADC or Display: The output from the second OPA111AM (Pin 6) is directed to an analog-to-digital converter (ADC) or a display unit. Maintaining signal integrity in this path is crucial for accurate data representation.

Design Considerations

When integrating the OPA111AM into a high-precision instrumentation amplifier circuit, several critical aspects must be carefully considered:

- Power Supply Quality: A clean and stable power supply is critical to fully leverage the low noise and high accuracy of the OPA111AM.

- Component Precision: Use precision resistors in the feedback loops to maintain the accuracy of gain settings and ensure stability over temperature variations.

- Thermal Considerations: Account for the potential impact of temperature on the OPA111AM and passive components, choosing components with low temperature coefficients to minimize drift.

- Signal Path Integrity: Design the signal paths from the sensor to the op-amp and from the op-amp to subsequent stages to minimize losses and interference, ensuring high-fidelity signal processing.

- PCB Layout: Optimize the PCB layout to reduce noise coupling, especially in the vicinity of the OPA111AM inputs and outputs, to preserve signal quality.

By addressing these design considerations, engineers can effectively utilize the OPA111AM in creating high-precision, stable instrumentation amplifiers, taking advantage of its exceptional accuracy, low noise, and stable performance across varying conditions.
