Analog Devices Inc. OP484FSZ-REEL7

Part No.:: OP484FSZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 3311

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP484FSZ-REEL7 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
4V/µs
GainBandwidthProduct:
4.25 MHz
-3dbBandwidth:
-
Current-InputBias:
80 nA
Voltage-InputOffset:
250 µV
Current-Supply:
-
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP484FSZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP484FSZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP484FSZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP484FSZ-REEL7 information

Views：

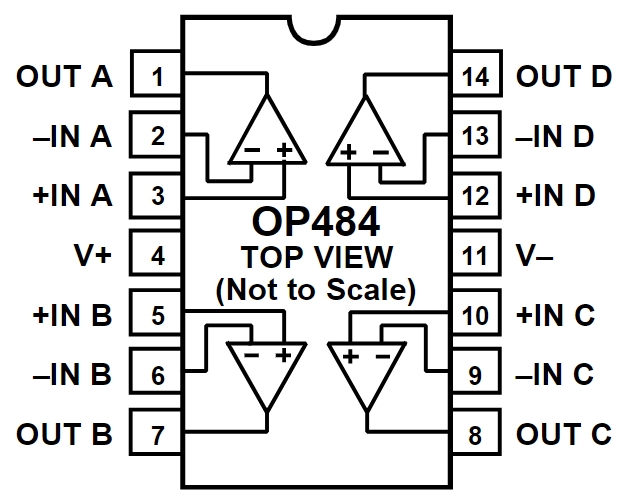

OP484FSZ-REEL7 Typical application Circuitry

OP484FSZ-REEL7

The OP484FSZ-REEL7 is a quad operational amplifier (op-amp) known for its high performance, which includes low noise levels, high speed, and precision.

Key Attributes of OP484FSZ-REEL7

- Low Voltage Operation: Capable of operating at low supply voltages, making it suitable for portable devices.

- Rail-to-Rail Output: Provides maximum dynamic range, essential in low-voltage applications.

- High Speed: Features fast settling times, crucial for rapid signal processing needs.

- Low Noise: Ensures clear signal amplification, ideal for precision measurement and audio applications.

Application Scenario: Precision Data Acquisition System

A typical application for the OP484FSZ-REEL7 is in a precision data acquisition system, where it can be used to condition and filter analog signals before they are digitized by an ADC (Analog-to-Digital Converter). This scenario demands accurate signal processing to maintain the integrity of the measured data.

Detailed Circuit Connection

Signal Conditioning Input: Connect the analog sensor output to the non-inverting input (Pin 3) of the first OP484FSZ-REEL7 op-amp. This step is critical for maintaining the original signal quality without phase inversion.

Gain Configuration: Use the first op-amp to adjust the signal level. A feedback resistor between the output (Pin 1) and the inverting input (Pin 2), combined with a resistor from Pin 2 to ground, sets the gain. Precise resistor values are key for accurate amplification.

Filtering Noise: Implement a second-stage filtering using the second OP484FSZ-REEL7 op-amp by connecting a feedback capacitor between the output (Pin 7) and the inverting input (Pin 6) to create a low-pass filter. This is essential for removing high-frequency noise from the signal.

Power Supply Configuration: Apply the positive supply voltage to Pin 11 and the negative supply to Pin 4 of the OP484FSZ-REEL7. Stable and clean power is paramount for minimizing operational noise and ensuring accurate signal processing.

Output to ADC: The conditioned and filtered signal from the second op-amp's output (Pin 7) is then sent to an ADC for digitization. The integrity of this signal path must be preserved to prevent data loss or distortion.

Design Considerations

Incorporating the OP484FSZ-REEL7 into a circuit, especially one as sensitive as a data acquisition system, requires attention to several crucial factors:

- Power Supply Quality: A clean and stable power supply is critical to leverage the low noise advantage of the OP484FSZ-REEL7.

- Component Precision: Select resistors and capacitors with tight tolerances to maintain the accuracy of gain and filter settings.

- Thermal Considerations: Even though the OP484FSZ-REEL7 is efficient, careful thermal management ensures consistent performance across all four op-amps.

- Signal Routing: Minimize noise interference by careful PCB layout, especially around high-speed or high-precision signal paths.

- Environmental Conditions: Ensure that the circuit design considers the operational environment, as temperature and humidity can impact component performance.

By meticulously addressing these considerations, engineers can effectively utilize the OP484FSZ-REEL7 to build sophisticated, high-performance data acquisition systems, among other applications, maximizing the fidelity and integrity of the acquired data.
