Analog Devices Inc. OP484ESZ

Part No.:: OP484ESZ

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 573

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP484ESZ Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
4V/µs
GainBandwidthProduct:
4.25 MHz
-3dbBandwidth:
-
Current-InputBias:
80 nA
Voltage-InputOffset:
150 µV
Current-Supply:
-
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP484ESZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP484ESZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP484ESZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP484ESZ information

Views：

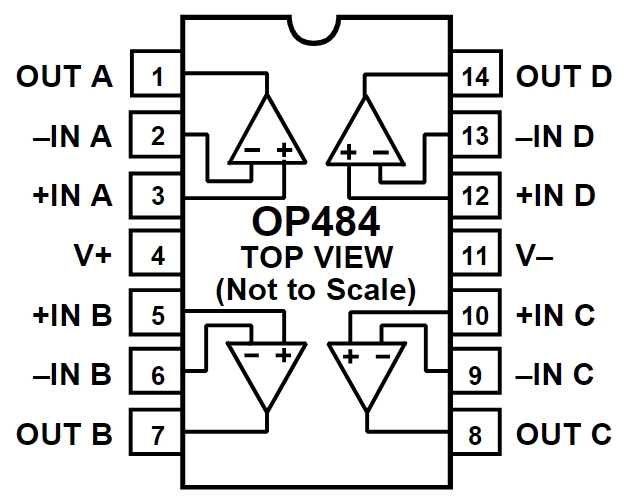

OP484ESZ Typical application Circuitry

OP484ESZ

The OP484ESZ is a high-performance, precision quad operational amplifier. It is characterized by its rail-to-rail input and output swing, low noise, and low power consumption, making it highly suitable for a wide range of applications including battery-powered devices, sensor signal conditioning, active filters, and data acquisition systems. Its quad configuration allows for compact designs in applications requiring multiple operational amplifiers.

Application Scenarios

The OP484ESZ is adept in:

- Battery-Powered Devices: Thanks to its low power consumption.

- Sensor Signal Conditioning: For amplifying and filtering signals from various types of sensors.

- Active Filtering: Creating precise filters for audio or signal processing.

- Data Acquisition Systems (DAQ): Providing accurate amplification and conditioning of analog signals before digital conversion.

Parameters and Features

- Rail-to-Rail Input and Output: Maximizes the dynamic range in low voltage applications.

- Low Noise: Ensures clear signal amplification, critical in audio and precision measurement applications.

- Low Power Consumption: Suitable for portable, battery-operated devices.

- Quad Operational Amplifier: Offers four op-amps in one package, enhancing design flexibility and reducing space.

Detailed Circuit Connection for Active Filtering

Designing a quad-channel active low-pass filter for audio processing using the OP484ESZ showcases its capability in handling complex signal processing tasks with high fidelity.

1. Power Supply Connections: Connect the positive supply (e.g., +5V) to pin 4 (V+) and the negative supply (e.g., 0V for single-supply operations) to pin 11 (V-). Use Decoupling Capacitors (e.g., 0.1 µF ceramic and 10 µF electrolytic) close to these pins to minimize noise and stabilize the power supply.

2. First Channel Input: Connect the audio input signal to the non-inverting input (pin 1) of the first OP484ESZ amplifier. A Protection Resistor (e.g., 1kΩ) can be added to safeguard the op-amp from potential spikes.

3. Feedback Loop for Gain Setting: Establish a feedback network from the output (pin 14) back to the inverting input (pin 2) with a Feedback Resistor (Rf, e.g., 10kΩ) to set the desired gain. A Capacitor (Cf, e.g., 22pF) in parallel with Rf sets the filter's cutoff frequency. Ground the non-inverting input (pin 1) through a Bias Resistor (Rb, equal in value to Rf) to maintain DC bias.

4. Replicating for Multiple Channels: Repeat the input and feedback configuration for additional channels using the subsequent amplifiers within the OP484ESZ (pins 5 and 6 for the second, 8 and 9 for the third, and 12 and 13 for the fourth amplifier), customizing component values as necessary for each channel to achieve the desired filtering effect.

5. Output Stage: The final stage outputs (pins 1, 7, 8, and 14) provide the filtered audio signals. Consider the Output Drive Capability of the OP484ESZ and possibly add an output buffer if driving low-impedance loads or requiring high current.

Design Considerations

When working with the OP484ESZ, several critical aspects must be considered:

- Power Supply Quality: A clean and stable power supply is crucial for minimizing operational noise and ensuring the accuracy of signal processing. Implement comprehensive decoupling to reduce noise.

- Thermal Management: While the OP484ESZ is designed for low power consumption, the overall thermal environment can impact precision. Ensure adequate heat dissipation for stable operation.

- PCB Layout: Optimize the layout to minimize noise induction and parasitic effects. Short, direct signal paths and strategic ground planes are essential for reducing noise and improving signal integrity.

- Signal Integrity: Proper routing and shielding of sensitive signal paths are necessary, especially in high-fidelity audio applications, to preserve signal quality and minimize interference.

- Component Selection: Choosing passive components with appropriate values, tolerances, and frequency characteristics is critical to maintaining the filter's performance across the intended frequency range.

Designing with the OP484ESZ in an active low-pass filter application for audio processing leverages its high-performance, low-noise, and rail-to-rail input/output characteristics, ensuring high-fidelity signal processing suitable for demanding audio applications and precision signal conditioning tasks.
