What is the Additional Feature ?

Name: OP467GSZ-REEL
Brand: Analog Devices Inc.
SKU: OP467GSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP467GSZ-REEL

Part No.:: OP467GSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: OP467GSZ-REEL.pdf

Description:: IC OPAMP GP 4 CIRCUIT 16SOIC

In Stock:: 217

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP467GSZ-REEL Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
350V/µs
GainBandwidthProduct:
28 MHz
-3dbBandwidth:
-
Current-InputBias:
150 nA
Voltage-InputOffset:
200 µV
Current-Supply:
8mA (x4 Channels)
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
9 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP467GSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP467GSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP467GSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP467GSZ-REEL information

Views：

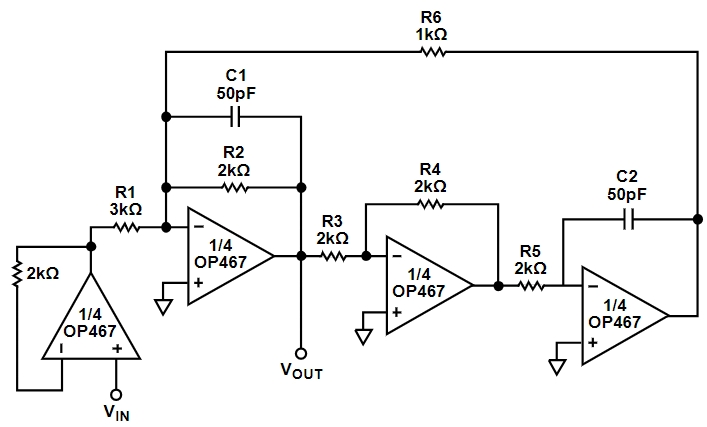

OP467GSZ-REEL Typical application Circuitry

OP467GSZ-REEL

The OP467GSZ-REEL is a high-performance quad operational amplifier known for its high slew rate, wide bandwidth, and low noise characteristics. Packaged in a reel for automated assembly, it is ideal for high-volume production and is particularly suited for applications requiring multiple amplification stages with high fidelity and fast response times, such as in audio processing, active filtering, fast signal conditioning, and precision instrumentation.

Application Scenarios

The OP467GSZ-REEL excels in:

- Active Filters: Creating high-order filters for audio or signal processing.

- Precision Instrumentation: Enhancing the accuracy of measurements in lab instruments.

- Audio Processing: Ensuring low distortion and high fidelity in audio signal amplification.

- Fast Signal Conditioning: Amplifying and conditioning signals from sensors with minimal delay.

Parameters and Features

- High Slew Rate: Enables the amplifier to respond quickly to input signal changes, making it suitable for high-speed applications.

- Wide Bandwidth: Provides accurate signal processing across a broad frequency range.

- Low Noise: Ensures clean amplification of signals, critical in audio and precision measurement applications.

- Quad Operational Amplifier: Offers four op-amps in one package, reducing space and cost.

Detailed Circuit Connection for Active Filtering

Designing a quad-channel active low-pass filter using the OP467GSZ-REEL for audio signal processing showcases its capabilities in handling complex signal processing tasks with high fidelity.

1. Power Supply Connections: Attach the positive supply voltage (e.g., +15V) to pin 4 (V+) and the negative supply voltage (e.g., -15V) to pin 11 (V-). Decoupling Capacitors, such as 0.1 µF ceramic close to the supply pins, are essential for stabilizing the power supply and minimizing noise.

2. First Channel Input: The input audio signal is connected to the non-inverting input (pin 1) of the first OP467GSZ-REEL amplifier. A Protection Resistor (e.g., 1kΩ) may be used to safeguard the op-amp from potential high-voltage spikes.

3. Feedback Loop for Gain Setting: Establish a feedback network from the output (pin 14) back to the inverting input (pin 2) with a Feedback Resistor (Rf, e.g., 10kΩ) for desired gain. A Capacitor (Cf, e.g., 22pF) in parallel with Rf sets the cutoff frequency of the filter. The non-inverting input is grounded through a Bias Resistor (Rb) of equal value to Rf to maintain DC bias.

4. Replicating for Multiple Channels: Repeat the input and feedback configurations for additional channels using the subsequent amplifiers (pins 5 and 6 for the second, 8 and 9 for the third, and 12 and 13 for the fourth amplifier), customizing component values for each channel as necessary to achieve the desired filtering for each audio signal.

5. Output Filtering and Driving: The filtered outputs from each amplifier can directly drive low-impedance loads such as headphones or an ADC input for digital processing. Ensure the Load Compatibility and add isolation resistors if necessary to prevent oscillation.

Design Considerations

When integrating the OP467GSZ-REEL into a circuit, several important aspects must be considered:

- Power Supply Quality: A clean, stable power supply is crucial for minimizing operational noise and ensuring the accuracy of signal processing. Implement thorough decoupling and noise filtering.

- Thermal Management: The OP467GSZ-REEL can dissipate significant heat at high speeds and loads. Evaluate thermal management solutions to maintain operational stability.

- PCB Layout: A carefully planned PCB layout, with minimized trace lengths and strategic ground planes, is essential to reduce parasitic effects and improve signal integrity.

- Signal Integrity: Shielding and proper routing of sensitive signal paths help preserve signal quality, particularly in environments with high electromagnetic interference.

- Component Selection: Choosing passive components with appropriate frequency characteristics and tolerances is crucial to maintaining the filter's performance across the intended frequency range.

Designing with the OP467GSZ-REEL in an active filtering application for audio signal processing leverages its high-speed, low-noise, and wide-bandwidth characteristics, ensuring high-fidelity signal processing suitable for demanding audio applications and precision signal conditioning tasks.
