Analog Devices Inc. OP400GSZ

Part No.:: OP400GSZ

Manufacturer:: Analog Devices Inc.

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: OP400GSZ.pdf

Description:: IC OPAMP GP 4 CIRCUIT 16SOIC

In Stock:: 15771

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP400GSZ Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Differential
SlewRate:
0.15V/µs
GainBandwidthProduct:
500 kHz
-3dbBandwidth:
-
Current-InputBias:
750 pA
Voltage-InputOffset:
80 µV
Current-Supply:
600µA (x4 Channels)
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

OP400GSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP400GSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP400GSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP400GSZ information

Views：

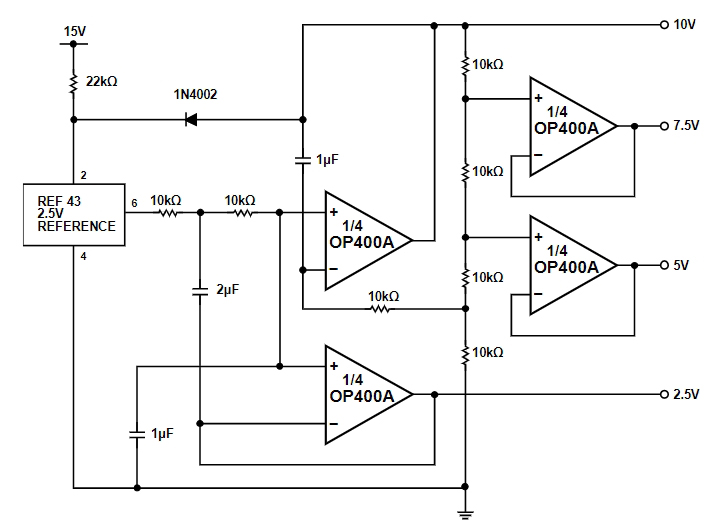

OP400GSZ Typical application Circuitry

OP400GSZ

The OP400GSZ is a quad operational amplifier characterized by its high precision, low offset voltage, and low power consumption. It integrates four independent op-amps in a single package, making it an ideal choice for applications requiring multiple amplification stages without the need for numerous discrete devices.

Application Scenarios

The OP400GSZ is particularly suitable for:

- Multi-Channel Sensor Signal Conditioning: Amplifying and filtering signals from various sensors in a single, compact solution.

- Precision Instrumentation: Offering accurate amplification in devices requiring high measurement accuracy.

- Active Filtering: Designing multiple filters for audio or signal processing within a single package.

- Data Acquisition Systems: Providing multiple amplification channels for analog-to-digital conversion.

Parameters and Features

- Quad Operational Amplifier: Combines four op-amps in one package for space and cost efficiency.

- Low Offset Voltage: Enhances accuracy in precision measurement and signal processing.

- Low Power Consumption: Ideal for battery-operated and portable devices.

- High Input Impedance: Minimizes loading on the signal source, preserving signal integrity.

Detailed Circuit Connection for Multi-Channel Sensor Signal Conditioning

Using the OP400GSZ to condition signals from multiple temperature sensors before digital conversion highlights its capability in handling multiple analog inputs simultaneously.

1. Power Supply Connections: Attach the positive supply (e.g., +5V) to pin 11 (V+) and the negative supply (e.g., -5V or ground for single-supply operations) to pin 4 (V-). Decoupling Capacitors (e.g., 0.1 µF ceramic close to the supply pins) are crucial for stabilizing the supply voltage and minimizing noise.

2. First Sensor Input Connection: Connect the output of the first temperature sensor to the non-inverting input (pin 1) of the first OP400GSZ amplifier. A Series Input Resistor might not be needed if the sensor output is within the acceptable voltage range and impedance.

3. Gain Setting for the First Channel: Establish a feedback loop from the output (pin 1) to the inverting input (pin 2) with a Feedback Resistor (Rf1, e.g., 100kΩ) for the desired gain. A Grounding Resistor (Rg1, e.g., 10kΩ) from pin 2 establishes the gain level together with Rf1.

4. Additional Sensor Inputs: Repeat the input connection and gain setting steps for the other sensors using the subsequent amplifiers within the OP400GSZ (pins 5 and 6 for the second, 8 and 9 for the third, and 12 and 13 for the fourth amplifier), allowing simultaneous processing of multiple sensor outputs.

5. Output Filtering: If necessary, add Low-pass Filtering on the outputs (pins 1, 7, 8, and 14) by placing capacitors (e.g., 1nF) in parallel with each feedback resistor to reduce high-frequency noise before the signals are fed to an ADC or further processing stages.

Design-Related Issues

When creating circuits using the OP400GSZ, it is important to consider the following factors:

- Quality of Power Supply: To ensure the accuracy of the amplified signals and reduce operational noise, a clean and consistent power supply is necessary. Comprehensive decoupling is advisable.

- Thermal Management: Even though the OP400GSZ is designed for low power consumption, the overall thermal environment can affect precision. Ensure adequate ventilation or heat sinking if necessary.

- PCB Layout: Optimize the layout by minimizing trace lengths and employing ground planes to reduce noise pickup and improve signal integrity. Separate analog and digital ground planes if applicable.

- Signal Integrity: Careful routing and shielding of sensitive signal paths help preserve signal quality, especially in noisy environments or when dealing with low-level signals.

- Component Selection: Choose passive components with appropriate values and tolerances to maintain circuit accuracy over temperature and time.

Employing the OP400GSZ in a multi-channel sensor signal conditioning application leverages its quad op-amp configuration and precision characteristics, ensuring accurate and reliable processing of sensor outputs for further analysis or digital conversion in a compact and efficient design.
