Analog Devices Inc. OP291GSZ

Part No.:: OP291GSZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP291GSZ.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 1220

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP291GSZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
0.5V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
30 nA
Voltage-InputOffset:
80 µV
Current-Supply:
260µA (x2 Channels)
Current-Output/Channel:
16 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP291GSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP291GSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP291GSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP291GSZ information

Views：

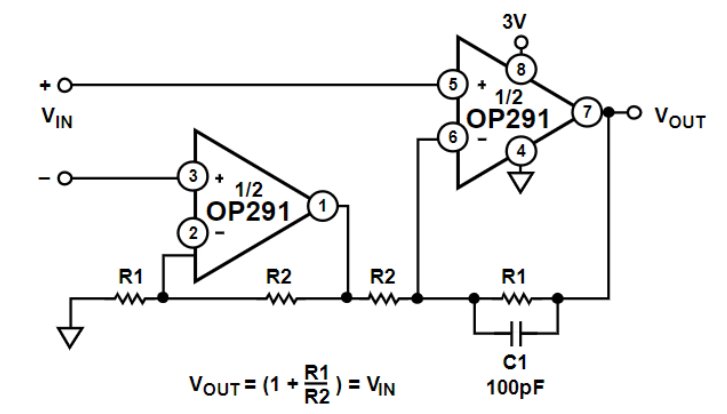

OP291GSZ Typical application Circuitry

OP291GSZ

The OP291GSZ is a single-supply, micropower operational amplifier known for its low power consumption and wide bandwidth. It is particularly suitable for battery-powered and portable applications where power efficiency and space are crucial.

Applications of OP291GSZ

1. Portable Medical Devices: Ideal for battery-operated medical devices like heart rate monitors due to its low power requirements.

2. Sensor Signal Conditioning: Frequently used in compact sensor systems for accurate signal processing in environmental monitoring equipment.

3. Battery-Powered Instruments: Suitable for portable instruments where power efficiency is essential, such as handheld measurement devices.

Key Features of OP291GSZ

1. Low Power Consumption: Minimizes battery drain, making it ideal for portable and battery-operated devices.

2. Wide Bandwidth: Ensures efficient signal processing across a broad frequency range.

3. Single-Supply Operation: Compatible with single power supply systems, simplifying circuit design.

Circuit Design Example: Portable Sensor Interface

Detailed Circuit Configuration Using OP291GSZ:

1. Sensor Input (Pin 2): Connect the output of the sensor to Pin 2, the inverting input of the OP291GSZ.

2. Feedback Network (Pin 6 to Pin 2): Create a feedback loop by connecting a resistor between the output (Pin 6) and the inverting input (Pin 2) to set the desired gain.

3. Power Supply (Pin 7): Connect a single positive power supply to Pin 7. Ensure the supply voltage is within the recommended range for the OP291GSZ.

4. Output (Pin 6): The amplified sensor signal is available at Pin 6.

5. Grounding (Pin 4): Connect Pin 4 to the ground. In a single-supply operation, this pin typically serves as the reference point.

Design Considerations with OP291GSZ

1. Power Supply Stability: A stable and clean power supply is crucial for maintaining the precision of the OP291GSZ.

2. PCB Layout Design: Minimize noise and parasitic effects through careful PCB layout, crucial in compact sensor systems.

3. Thermal Considerations: Ensure adequate heat dissipation, especially important in compact, enclosed environments.

4. Component Quality: Select high-quality resistors and capacitors to maintain accuracy and stability in the feedback network.

5. Grounding Practices: Implement effective grounding to minimize noise and potential interference, vital in sensitive sensor applications.

This example demonstrates a setup for a portable sensor interface using the OP291GSZ. The OP291GSZ's low power consumption and wide bandwidth make it highly suitable for applications requiring efficient and precise signal processing in a compact form factor.
