Analog Devices Inc. OP27GJZ

Part No.:: OP27GJZ

Manufacturer:: Analog Devices Inc.

Package:: TO-99-8 Metal Can

Datasheet:: OP27GJZ.pdf

Description:: IC OPAMP GP 1 CIRCUIT TO99-8

In Stock:: 2030

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP27GJZ Specifications

Package/Case:
TO-99-8 Metal Can
Packaging:
Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
2.8V/µs
GainBandwidthProduct:
8 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
30 µV
Current-Supply:
-
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
8 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

OP27GJZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP27GJZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP27GJZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP27GJZ information

Views：

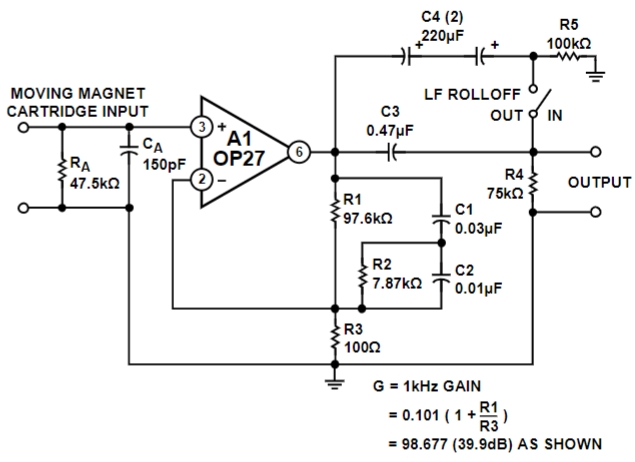

OP27GJZ Typical application Circuitry

OP27GJZ

The OP27GJZ is a high-precision operational amplifier known for its low noise, high stability, and fast settling time, making it widely used in applications requiring accurate and stable signal amplification. It's designed for various applications including precision instrumentation, active filters, data acquisition systems, and any other applications where high-performance analog signal processing is required.

Application Scenarios

The OP27GJZ finds its place in:

- Precision Instrumentation: For accurate signal measurement and processing.

- Active Filters: Ideal for designing filters with sharp cutoffs and low signal distortion.

- Data Acquisition Systems (DAQ): To amplify and condition signals before they are digitized.

- Voltage Reference Buffering: To provide a stable voltage reference for precision circuits.

Parameters and Features

- Low Noise: Crucial for applications where signal integrity is paramount.

- High Stability: Ensures consistent performance across a range of temperatures and supply voltages.

- Fast Settling Time: Important for applications requiring quick response to signal changes.

- High Input Impedance: Minimizes loading on the signal source, preserving signal quality.

Detailed Circuit Connection for a Precision Instrumentation Application

A common application of the OP27GJZ is in a precision voltage follower circuit, designed to buffer a sensitive sensor output for further processing or digital conversion.

1. Power Supply Connections: Connect the positive supply voltage to pin 7 (V+) and the negative supply to pin 4 (V-). It's crucial to place decoupling capacitors, typically 0.1 µF ceramic and 10 µF electrolytic, near these pins to minimize power supply noise.

2. Input Signal Conditioning: The output from a precision sensor should be connected to the non-inverting input (pin 3) of the OP27GJZ. This setup ensures that the OP27GJZ's high input impedance does not load the sensor, preserving the original signal integrity.

3. Feedback for Unity Gain Configuration: To configure the OP27GJZ as a voltage follower, create a direct connection from the output (pin 6) to the inverting input (pin 2). This configuration provides unity gain while offering the high input impedance and low output impedance characteristic of the voltage follower.

4. Output to Next Stage: The output at pin 6 is now a buffered version of the input signal, ready for further processing. If the subsequent stage is an ADC, ensure that the OP27GJZ output level is compatible with the ADC input range.

5. Bypassing High-Frequency Noise: Optionally, a small capacitor (e.g., 10 pF) can be placed between pin 2 (inverting input) and pin 6 (output) to filter out any potential high-frequency noise, thus protecting sensitive downstream components.

Design Considerations

When implementing circuits with the OP27GJZ, several factors should be taken into account:

- Power Supply Quality: Ensure a clean and stable power supply to avoid introducing noise into the precision circuit. The use of low-noise linear regulators is recommended.

- Thermal Considerations: The OP27GJZ's performance can be affected by temperature variations. Consider the thermal environment of the application and provide adequate ventilation or heat sinking if necessary.

- PCB Layout: Minimize the length of critical signal paths and utilize ground planes to reduce noise pickup and parasitic capacitance. Careful layout can significantly enhance the performance of the OP27GJZ in precision applications.

- Load Characteristics: Consider the characteristics of the load connected to the OP27GJZ output. High capacitive loads may require additional compensation to maintain stability.

- Signal Integrity: Employ shielding and proper grounding practices, especially in environments with significant electrical noise, to maintain the integrity of the signals being processed by the OP27GJZ.

Utilizing the OP27GJZ in a voltage follower circuit for sensor signal buffering leverages its low noise and high stability features, ensuring that the sensor's signal is accurately transmitted to subsequent stages without degradation.
