Name: OP275GSZ
Brand: Analog Devices Inc.
SKU: OP275GSZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP275GSZ

Part No.:: OP275GSZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP275GSZ.pdf

Description:: IC AUDIO 2 CIRCUIT 8SOIC

In Stock:: 11548

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP275GSZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Audio
NumberofCircuits:
2
OutputType:
-
SlewRate:
22V/µs
GainBandwidthProduct:
9 MHz
-3dbBandwidth:
-
Current-InputBias:
100 nA
Voltage-InputOffset:
1 mV
Current-Supply:
4mA
Current-Output/Channel:
90 mA
Voltage-SupplySpan(Min):
9 V
Voltage-SupplySpan(Max):
44 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP275GSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP275GSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP275GSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP275GSZ information

Views：

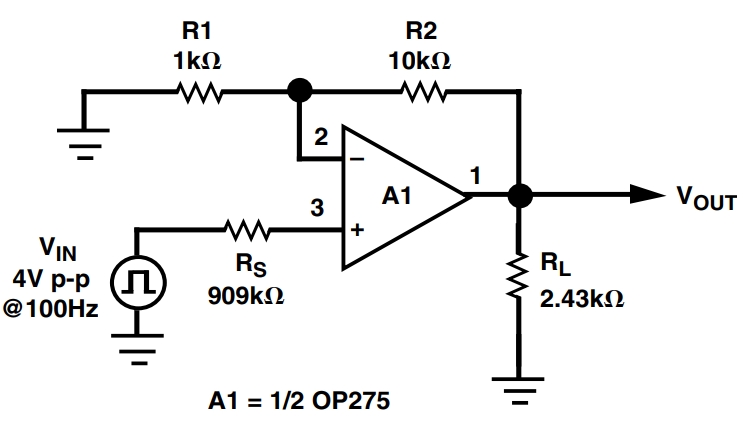

OP275GSZ Typical application Circuitry

OP275GSZ

The OP275GSZ is a dual audio operational amplifier known for its excellent sound quality and high-performance characteristics. It is widely used in audio applications due to its low noise and distortion levels, along with a high slew rate.

Applications of OP275GSZ

1. Audio Amplification: Commonly used in high-fidelity audio equipment, such as preamplifiers and mixers.

2. Musical Instruments: Ideal for electronic musical instruments and effects processors due to its high-quality audio amplification.

3. Studio Recording Equipment: Employed in studio recording gear for processing audio signals with minimal distortion.

Key Features of OP275GSZ

1. Low Noise and Distortion: Ensures clear audio output, crucial for high-fidelity sound systems.

2. High Slew Rate: Provides fast response, enhancing the dynamic range in audio applications.

3. Dual Op-Amp Configuration: Offers flexibility in stereo audio applications.

Circuit Design Example: High-Fidelity Audio Preamplifier

Detailed Circuit Configuration Using OP275GSZ:

1. Audio Input (Pins 2 and 3 for Channel 1, Pins 5 and 6 for Channel 2): Connect the stereo audio source to these pins. Pin 2 (Channel 1 inverting input), Pin 3 (Channel 1 non-inverting input), Pin 5 (Channel 2 inverting input), Pin 6 (Channel 2 non-inverting input).

2. Feedback and Gain Setting (Pin 1 for Channel 1, Pin 7 for Channel 2): Place resistors between the output pins (Pin 1 for Channel 1, Pin 7 for Channel 2) and the inverting inputs (Pin 2 for Channel 1, Pin 5 for Channel 2) to set the desired gain.

3. Power Supply Connections (Pins 4 and 8): Connect a bipolar power supply with Pin 4 as the negative supply and Pin 8 as the positive supply.

4. Output Signal (Pin 1 for Channel 1, Pin 7 for Channel 2): The amplified audio signals are available at these pins.

5. Bypass Capacitors (Near Pins 4 and 8): To reduce power supply noise, add bypass capacitors in close proximity to the pins on the power supply.

Design Considerations with OP275GSZ

1. Power Supply Quality: A clean and stable power supply is essential to prevent noise in the audio output.

2. PCB Layout: Careful layout design is crucial to minimize crosstalk between channels and reduce parasitic effects.

3. Thermal Management: Adequate heat dissipation should be considered, especially when the amplifier is driven at high power levels.

4. Signal Integrity: Using premium passive components to preserve the audio signal's integrity.

5. Grounding Scheme: Effective grounding is vital to minimize noise and hum in the audio signal.

This example outlines the setup of a high-fidelity audio preamplifier using the OP275GSZ. The OP275GSZ is a great option for professional audio applications because to its low noise, low distortion, and rapid slew rate.
