Name: OP262GSZ-REEL
Brand: Analog Devices Inc.
SKU: OP262GSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP262GSZ-REEL

Part No.:: OP262GSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP262GSZ-REEL.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2627

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP262GSZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
13V/µs
GainBandwidthProduct:
15 MHz
-3dbBandwidth:
-
Current-InputBias:
260 nA
Voltage-InputOffset:
25 µV
Current-Supply:
550µA (x2 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP262GSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP262GSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP262GSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP262GSZ-REEL information

Views：

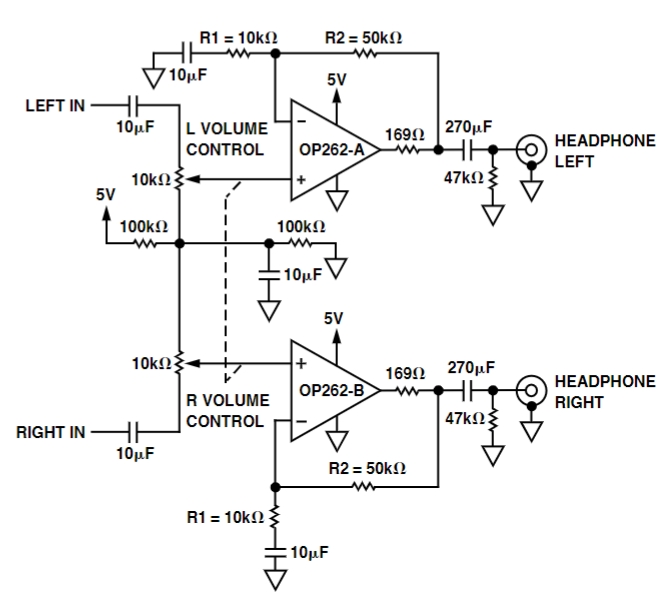

OP262GSZ-REEL Typical application Circuitry

OP262GSZ-REEL

The OP262GSZ-REEL is a high-speed, dual operational amplifier known for its wide bandwidth, low noise, and rail-to-rail output swing capabilities. Packaged in a reel for automated manufacturing processes, it is particularly suited for applications requiring precise signal amplification and conditioning with minimal distortion across a broad frequency range.

Application Scenarios

The OP262GSZ-REEL is adept in various scenarios, including:

- Active Filtering: For audio signal processing or noise reduction in communication systems.

- Sensor Signal Conditioning: Amplifying outputs from sensors with low signal levels before digital conversion.

- Analog Signal Processing: In applications requiring high-speed data manipulation, such as video signal processing.

- Driving ADCs: Conditioning signals to match the input range of analog-to-digital converters efficiently.

Parameters and Features

- Wide Bandwidth: Facilitates accurate signal processing over a broad range of frequencies.

- Low Noise: Ensures clear amplification, critical in high-fidelity audio applications and precise measurement systems.

- Rail-to-Rail Output: Maximizes the dynamic range of the output signal, especially useful in single-supply operations.

- Dual Configuration: Contains two operational amplifiers in one package, offering compact and versatile circuit design options.

Detailed Circuit Connection for Sensor Signal Conditioning

Using the OP262GSZ-REEL to condition the output from a temperature sensor illustrates its capability to amplify low-level signals for further processing or digital conversion.

1. Power Supply Connections: Attach the positive supply voltage to pin 8 and the negative supply voltage to pin 4 of the OP262GSZ-REEL. When placing decoupling capacitors near these pins, you can reduce noise from the power supply and guarantee steady operation.

2. Input Signal Connection: Link the output of the temperature sensor to the non-inverting input (pin 3) of the first op-amp within the OP262GSZ-REEL. Incorporate a series resistor (R1) if needed for impedance matching or to limit the input current.

3. Feedback for Gain Setting: To adjust the amplification factor, connect a feedback resistor (Rf) between the output (pin 1) and the inverting input (pin 2). Adding a resistor (Rg) from pin 2 to ground allows for adjustable gain determined by the ratio of Rf to Rg.

4. Output Filtering and Bypassing: To mitigate high-frequency noise, a capacitor (Cf) can be added in parallel with Rf, forming a low-pass filter. This step is crucial for sensors in noisy environments or when the subsequent stages are sensitive to high-frequency components.

5. Utilizing the Second Op-Amp: The second op-amp in the OP262GSZ-REEL can serve additional processing needs, such as further amplification or filtering. Implementing a similar setup using pins 5 (non-inverting input), 6 (inverting input), and 7 (output) enables complex signal conditioning schemes within a compact footprint.

Design-Related Issues

When creating circuits with the OP262GSZ-REEL, it is crucial to take into account multiple factors:

- Quality of Power Supply: In order to reduce noise and guarantee the authenticity of the amplified signal, reliable, high-quality power sources are essential.

- Thermal Management: Despite the OP262GSZ-REEL's efficiency, understanding the thermal characteristics of the operational environment helps prevent performance degradation due to overheating.

- PCB Layout: Strategic layout design, including short trace lengths and careful placement of decoupling capacitors, is vital to reduce parasitic effects and maintain signal integrity.

- Load Considerations: The ability of the OP262GSZ-REEL to drive various loads should be matched with the requirements of subsequent stages, possibly necessitating buffering.

- Signal Integrity: Maintaining signal integrity requires attention to grounding, especially in systems where the OP262GSZ-REEL is part of a complex signal chain involving multiple ground paths.

Employing the OP262GSZ-REEL in a sensor signal conditioning application takes full advantage of its high-speed, low-noise characteristics, ensuring that signals are accurately amplified and prepared for further processing or analysis, which is crucial in achieving high-quality data acquisition in sensor-based systems.
