Name: OP262GS-REEL7
Brand: Analog Devices Inc.
SKU: OP262GS-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP262GS-REEL7

Part No.:: OP262GS-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP262GS-REEL7.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3221

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP262GS-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
13V/µs
GainBandwidthProduct:
15 MHz
-3dbBandwidth:
-
Current-InputBias:
260 nA
Voltage-InputOffset:
25 µV
Current-Supply:
550µA (x2 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP262GS-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP262GS-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP262GS-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP262GS-REEL7 information

Views：

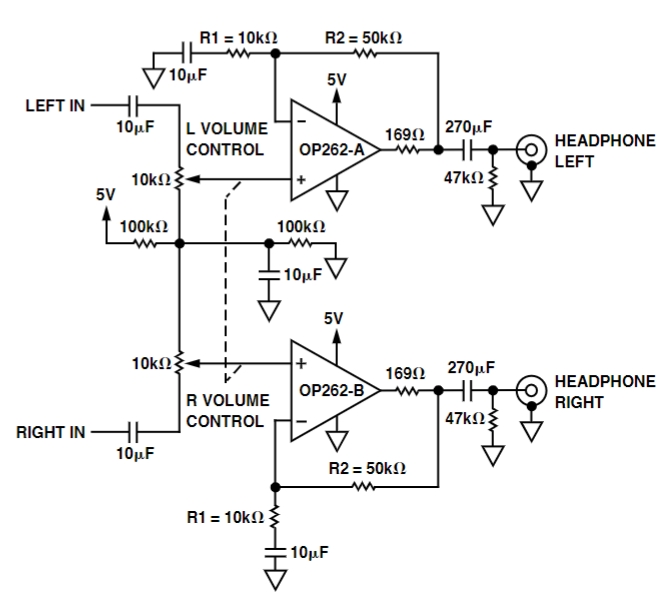

OP262GS-REEL7 Typical application Circuitry

OP262GS-REEL7

The OP262GS-REEL7 is a precision dual operational amplifier characterized by its low noise, high speed, and rail-to-rail output swing.

Application Scenarios

The OP262GS-REEL7 is versatile, finding applications in:

- Active Filtering: Creating high-performance filters for audio or data signals.

- Sensor Signal Conditioning: This process involves conditioning and amplification of signals from a range of sensors.

- Data Acquisition Systems (DAQ): Serving as the front-end amplifier for converting analog signals to digital form.

- Voltage Level Shifting: Adjusting signal levels to match the input range of subsequent stages.

Parameters and Features

- Rail-to-Rail Output: Enables the output signal to swing close to the supply rails, maximizing the dynamic range.

- High Speed: It is appropriate for quick signal processing because to its large bandwidth and slew rate.

- Low Noise: Minimizes background noise in signal amplification, crucial for high-fidelity applications.

- Dual Operational Amplifier: Contains two op-amps in one package, reducing space and cost.

Detailed Circuit Connection for Active Filtering

An active low-pass filter using the OP262GS-REEL7 demonstrates its capability to process audio signals with precision. Here's a detailed connection guide:

1. Power Supply Connections: Connect the positive supply voltage to pin 8 and the negative supply voltage to pin 4 of the OP262GS-REEL7. For optimal performance, place decoupling capacitors (e.g., 100 nF) as close as possible to these pins to filter out any power supply noise.

2. Input Signal Connection: Connect the input signal to the non-inverting input (pin 3) of the first op-amp inside the OP262GS-REEL7. A resistor (R1) may be added in series to this pin for impedance matching or to form part of the filter's design.

3. Setting the Filter's Cutoff Frequency: Use a feedback resistor (Rf) from the output (pin 1) back to the inverting input (pin 2), and place a capacitor (C1) from pin 2 to the ground. The values of Rf and C1, along with any series resistor with the input, define the cutoff frequency of the low-pass filter.

4. Output and Bypassing: The filtered output can be taken from pin 1. If the filter is part of a larger system, a bypass capacitor (e.g., 10 µF) between the output and ground may help stabilize the output signal, especially if the OP262GS-REEL7 is driving capacitive loads.

5. Utilizing the Second Op-Amp: The second op-amp within the OP262GS-REEL7 can be used for further signal processing, such as additional filtering stages or amplification. Repeat the above steps, utilizing pins 5 (non-inverting input), 6 (inverting input), and 7 (output) for the second op-amp.

Design-Related Issues

Considerations for designing with the OP262GS-REEL7 include the following:

- Quality of Power Supply: For high-fidelity or precision applications in particular, a clean and reliable power supply is essential. Utilize appropriate filtering and regulation.

- PCB Layout: Careful layout to minimize noise pickup and parasitic effects is important. Keep signal paths short and use ground planes for stability.

- Thermal Considerations: While the OP262GS-REEL7 typically does not generate significant heat, ambient temperature and thermal paths in the PCB design should be considered to ensure stable operation.

- Load Characteristics: The ability of the OP262GS-REEL7 to drive capacitive loads is good, but a small series resistor at the output might be needed in some cases to prevent oscillations.

- Signal Integrity: Ensure that the input signal conditioning and any impedance matching are correctly implemented to preserve signal integrity throughout the filtering process.

Employing the OP262GS-REEL7 in an active low-pass filter circuit takes advantage of its high-speed, low-noise characteristics, making it an excellent choice for audio processing and other applications requiring clean and precise signal amplification.
