What is the Additional Feature ?

Name: OP213FSZ-REEL
Brand: Analog Devices Inc.
SKU: OP213FSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP213FSZ-REEL

Part No.:: OP213FSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP213FSZ-REEL.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 5911

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP213FSZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
1.2V/µs
GainBandwidthProduct:
3.4 MHz
-3dbBandwidth:
-
Current-InputBias:
600 nA
Voltage-InputOffset:
250 µV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
4 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP213FSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP213FSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP213FSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP213FSZ-REEL information

Views：

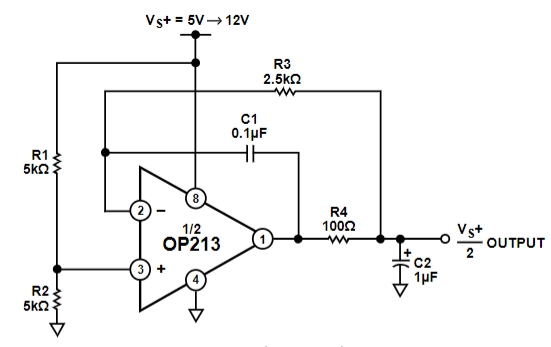

OP213FSZ-REEL Typical application Circuitry

OP213FSZ-REEL

The OP213FSZ-REEL is a precision operational amplifier characterized by its low offset voltage and low noise, making it adept for applications demanding high accuracy and stability in signal conditioning and processing. This op-amp, provided in a reel packaging, suggests its suitability for high-volume production and automated assembly processes, typical in the electronics manufacturing industry.

Application Scenarios

The OP213FSZ-REEL finds extensive use in fields such as medical instrumentation, industrial control systems, and analog signal processing where precision is paramount. Its low noise and stable performance under varying conditions make it particularly useful in sensor signal conditioning, where it can amplify delicate signals without significant distortion.

Parameters and Features

- Low Offset Voltage: Ensures minimal error introduction in signal amplification, crucial for precision measurements.

- Low Noise: Essential for applications requiring precise signal amplification and where signal integrity is paramount.

- Broad Supply Voltage Range: Provides versatility in circuit design for applications involving single and dual supplies.

- High Input Impedance: Minimizes loading on the signal source, preserving the original signal integrity.

Detailed Circuit Connection for Sensor Signal Conditioning

In a sensor signal conditioning application, the OP213FSZ-REEL can be utilized to amplify a temperature sensor's output for further processing or digital conversion. The following points detail the connection strategy:

1. Power Supply Connection: At a wide variety of voltages, the OP213FSZ-REEL performs well. Attach pin 4 to the negative supply (or ground in single-supply systems) and pin 8 to the positive supply voltage. To improve stability, add decoupling capacitors-typically 0.1 µF-as close to the power supply pins as you can to minimize noise.

2. Input Signal Conditioning: Connect the output of the temperature sensor to the non-inverting input (pin 3) of the OP213FSZ-REEL. If necessary, a series resistor and a parallel capacitor can form a low-pass filter at this point to reduce high-frequency noise before amplification.

3. Feedback Loop for Gain Control: To set the amplifier gain, connect a feedback resistor (Rf) from the output (pin 6) to the inverting input (pin 2). A resistor (Rg) between the inverting input and ground (or the negative supply in dual-supply configurations) sets the gain together with Rf. The gain can be calculated as 1 + (Rf/Rg).

4. Output Filtering and Buffering: If the amplified signal requires further noise reduction, an additional low-pass filter can be added at the output. Moreover, a buffering stage may be employed post-amplification to drive subsequent stages without affecting the amplification accuracy.

5. Grounding and Layout Considerations: Implement a solid grounding strategy to minimize noise interference. Use a single-point ground or a ground plane to reduce ground loop errors. Careful PCB layout, keeping signal paths short and separated from any high-current or high-frequency traces, is crucial to preserve signal integrity.

Design Considerations

When designing circuits with the OP213FSZ-REEL, several factors must be considered:

- Power Supply Quality: The cleanliness of the supply voltage directly impacts the performance. Utilizing stable power sources and adequate decoupling minimizes noise and offset errors.

- Component Selection: Choosing precision resistors for the feedback network and filtering stages enhances the overall accuracy and reliability of the signal conditioning circuit.

- Thermal Management: Although the OP213FSZ-REEL is designed for low power consumption, managing heat in the final application ensures stable operation over a wide temperature range.

- Signal Integrity: Careful routing of signals, especially in high-accuracy applications, prevents unwanted interference and preserves the quality of the amplified signal.

Utilizing the OP213FSZ-REEL in a sensor signal conditioning application takes advantage of its low noise, low offset voltage, and flexibility in supply voltage, ensuring accurate and reliable amplification of delicate sensor outputs for various high-precision applications.

OP213FSZ-REEL FAQ

1. How to order OP213FSZ-REEL on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that OP213FSZ-REEL is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the OP213FSZ-REEL. All suppliers must pass our qualification reviews before they can publish their products including OP213FSZ-REEL on icwhale.com; we pay more attention to the channels and quality of OP213FSZ-REEL products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the OP213FSZ-REEL price and inventory displayed accurate?

The price and inventory of OP213FSZ-REEL fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of OP213FSZ-REEL?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the OP213FSZ-REEL we delivered, we will accept the replacement or return of the OP213FSZ-REEL only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of OP213FSZ-REEL.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
