Analog Devices Inc. OP213FSZ

Part No.:: OP213FSZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP213FSZ.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2640

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP213FSZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
1.2V/µs
GainBandwidthProduct:
3.4 MHz
-3dbBandwidth:
-
Current-InputBias:
600 nA
Voltage-InputOffset:
250 µV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
4 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP213FSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP213FSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP213FSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP213FSZ information

Views：

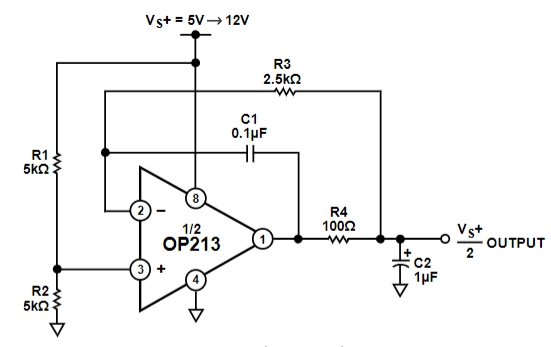

OP213FSZ Typical application Circuitry

OP213FSZ

The OP213FSZ is a variant within the family of precision operational amplifiers known for their low noise and low offset voltage characteristics. This particular model is optimized for stability and performance in feedback control systems, active filters, and any application requiring accurate signal amplification and processing. The "FSZ" suffix typically denotes the package type and operational temperature range, indicating that this device is packaged in a standard surface-mount format and designed for industrial temperature ranges.

Key Parameters and Features

- Low Noise: The OP213FSZ provides low voltage noise and low current noise, which is essential for applications that require clean and precise signal amplification.

- Low Offset Voltage: It features a low input offset voltage, reducing the error in signal processing applications and enhancing overall accuracy and performance.

- High Input Resistance: This operational amplifier's high input resistance reduces the loading effect on the input signal and makes it suitable for a high-impedance source interface.

- Wide Power Supply Range: The OP213FSZ can operate across a wide range of power supply voltages, accommodating both single-supply and dual-supply applications, which adds to its versatility in various circuit designs.

- Operational Stability: Designed with stability in mind, it performs reliably across its entire operational temperature range, making it suitable for industrial applications subject to varying environmental conditions.

Application in a Data Acquisition System

A data acquisition system often requires precise amplification of analog signals before digitization. The OP213FSZ's low noise and low offset voltage make it an ideal choice for such a system, particularly in sensor signal amplification.

1. Sensor Signal Conditioning: Utilize the OP213FSZ to amplify sensor outputs, such as temperature or pressure sensors, preparing these signals for ADC (Analog-to-Digital Converter) input. To maintain the signal's phase, the op-amp can be set up as a non-inverting amplifier.

2. Gain Configuration: To adjust the desired gain, use precision resistors in the feedback loop. The gain determines how much the sensor signal is amplified and should be selected based on the input range of the ADC and the output range of the sensor.

3. Filtering: Integrate low-pass filters at the amplifier's output to limit the bandwidth of the signal, reducing noise and preventing aliasing by the ADC. This can be achieved by connecting a capacitor in parallel with the feedback resistor or by constructing a more complex active filter circuit.

4. Power Supply Decoupling: To reduce the effects of power supply noise and ripple and ensure steady operation, place decoupling capacitors in close proximity to the OP213FSZ's power supply pins.

5. Output Buffering: You should think about including a buffer stage after the OP213FSZ if the ADC input is a heavy load. This could be an additional operational amplifier with low output impedance and high input impedance set up as a voltage follower.

Design Factors

- Quality of Power Supply: Make sure the OP213FSZ has a clean, reliable power source. The accuracy of the amplified signals may be significantly impacted by noise and fluctuation in the power supply.

- PCB Layout Practices: Adopt careful PCB layout practices to minimize noise pickup and signal integrity issues. Keep analog and digital sections separate, and use short, direct traces for critical signal paths.

- Component Selection: Choose components, especially resistors and capacitors in the signal path, with appropriate tolerances and characteristics to maintain the accuracy and stability of the signal conditioning circuit.

- Thermal Management: While the OP213FSZ is designed for low power consumption and operation across a wide temperature range, consider the thermal aspect in the overall system design, especially in tightly packed or enclosed environments.

Integrating the OP213FSZ into a data acquisition system leverages its precision and low noise characteristics to ensure accurate and stable signal amplification, crucial for high-quality data capture and analysis in various applications.
