Analog Devices Inc. OP213ESZ-REEL

Part No.:: OP213ESZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP213ESZ-REEL.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3200

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP213ESZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
1.2V/µs
GainBandwidthProduct:
3.4 MHz
-3dbBandwidth:
-
Current-InputBias:
240 nA
Voltage-InputOffset:
100 µV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
4 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP213ESZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP213ESZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP213ESZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP213ESZ-REEL information

Views：

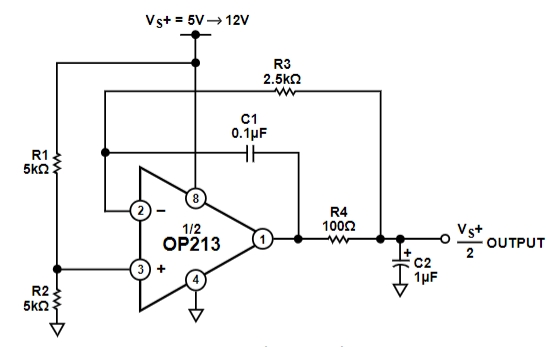

OP213ESZ-REEL Typical application Circuitry

OP213ESZ-REEL

The OP213ESZ-REEL refers to a specific packaging and temperature range variant of the OP213 family of precision operational amplifiers, known for their low noise and low offset voltage. Packaged in a reel for automated manufacturing processes, this operational amplifier is optimized for applications requiring high accuracy and stability in signal amplification.

Application Scenarios

The OP213ESZ-REEL is particularly well-suited for precision analog circuits, such as data acquisition systems, sensor interfaces, and active filtering circuits. Its characteristics make it an excellent choice for applications where signal integrity is critical, like in precision instrumentation and analog-to-digital conversion interfaces.

Parameters and Features

- Low Offset Voltage: Essential for applications requiring high accuracy, minimizing error in signal processing.

- Low Noise: Ideal for sensitive applications where maintaining signal fidelity is paramount.

- Broad Supply Voltage Range: Enables circuit designers to be more creative by supporting single and dual supply operations.

- High Input Impedance: Reduces loading on the signal source, preserving the integrity of the original signal.

Detailed Circuit Connection for Data Acquisition System

In a data acquisition system, the OP213ESZ-REEL can be utilized to buffer and amplify signals from various sensors before digital conversion. Below is a detailed explanation of a typical connection strategy:

1. Power Supply Connections: For optimal performance, connect the positive supply to pin 8 and the negative supply to pin 4 of the OP213ESZ-REEL. Use decoupling capacitors, typically 0.1 µF, close to these pins to reduce noise from the power supply.

2. Preparing the Input Signal: The sensor signal needs to be attached to pin 3, which is the non-inverting input. To reduce high-frequency noise, a low-pass filter made of a shunt capacitor and a series resistor may be installed in front of this input.

3. Determining the Gain: Attach a feedback resistor (Rf) between the inverting input (pin 2) and the output (pin 6). Place a resistor (Rg) between the inverting input and ground to set the amplifier gain. The gain formula is 1 + (Rf/Rg), allowing precise control over signal amplification.

4. Output to ADC: The conditioned signal from the output of the OP213ESZ-REEL can be directed to an analog-to-digital converter. To ensure the ADC accurately captures the signal, a buffer stage may be incorporated if the ADC input impedance is low.

5. Layout Considerations: Minimize noise and interference by carefully planning the PCB layout. Keep the signal paths short and separated from high-current traces. Grounding should be meticulously implemented to avoid ground loops and signal integrity issues.

Design Considerations

- Supply Voltage Stability: The OP213ESZ-REEL's performance is directly impacted by the power supply's quality.

Stable and clean power sources are crucial.

- Precision Components: Use precision resistors in the feedback loop to maintain the accuracy of the gain setting. Component selection impacts the overall performance of the amplification stage.

- Thermal Considerations: Despite the OP213ESZ-REEL's efficient operation, be mindful of thermal management to ensure consistent performance across the specified temperature range.

- Signal Integrity: Maintaining signal integrity through careful PCB design and component placement is essential, especially in high-accuracy applications where the OP213ESZ-REEL excels.

By leveraging the low noise and low offset voltage characteristics of the OP213ESZ-REEL, designers can create high-performance, accurate, and reliable circuits for data acquisition systems and other precision analog applications.
