Name: OP200AZ
Brand: Analog Devices Inc.
SKU: OP200AZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP200AZ

Part No.:: OP200AZ

Manufacturer:: Analog Devices Inc.

Package:: 8-CDIP (0.300, 7.62mm)

Datasheet:: OP200AZ.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8CERDIP

In Stock:: 3679

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP200AZ Specifications

Package/Case:
8-CDIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.15V/µs
GainBandwidthProduct:
500 kHz
-3dbBandwidth:
-
Current-InputBias:
100 pA
Voltage-InputOffset:
25 µV
Current-Supply:
570µA (x2 Channels)
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

OP200AZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP200AZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP200AZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP200AZ information

Views：

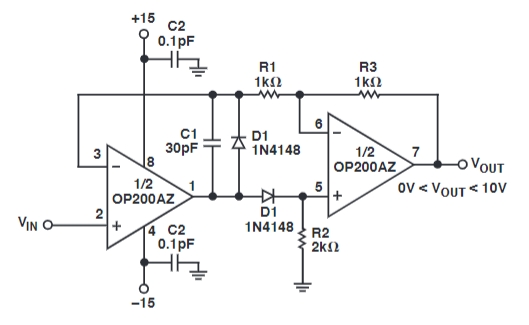

OP200AZ Typical application Circuitry

OP200AZ

The OP200AZ is an operational amplifier (op-amp) known for its dual precision and low offset voltage characteristics, making it an excellent choice for high-precision analog applications. It's part of a family of op-amps designed for applications where low power consumption and good stability over temperature variations are critical. The OP200AZ is particularly notable for its ability to operate at low supply voltages while maintaining a high degree of accuracy, which is crucial for battery-operated devices, precision instrumentation, and sensor interfaces.

Key Parameters and Features

- Dual Amplifier Design: The OP200AZ incorporates two independent op-amps in a single package, facilitating compact and efficient designs for circuits requiring dual amplification stages.

- Low Offset Voltage: It offers a low input offset voltage, which is a critical parameter for precision applications as it minimizes error introduced in signal amplification.

- Low Power Consumption: Made with efficiency in mind, the OP200AZ is appropriate for uses where power saving is crucial, as in battery-operated and portable devices.

- Wide Supply Voltage Range: It supports a wide range of supply voltages, making it versatile for use in various electronic systems, from simple analog circuits to complex mixed-signal designs.

Application in a Precision Differential Amplifier Circuit

A precision differential amplifier circuit can effectively utilize the OP200AZ's low offset voltage and dual amplifier configuration to amplify the difference between two input signals while rejecting any signals that are common to both inputs. This application is valuable in sensor reading, data acquisition systems, and signal conditioning tasks.

1. Differential Amplifier Setup: Use one amplifier unit of the OP200AZ to handle the positive input signal and the other for the negative input signal. Connect the inverting input of the first amplifier to a reference voltage if single-ended operation is needed.

2. Feedback Resistor Network: Configure feedback resistors around both amplifiers to set the gain of the differential amplifier. The amplification factor is determined by the ratio of these resistors; precise resistors are advised to guarantee accuracy.

3. Biasing for Single-Supply Operation: If the circuit is to operate on a single supply voltage, bias the non-inverting inputs of both amplifiers at half the supply voltage to allow for AC coupling of the input signals. This mid-supply biasing enables the amplification of AC signals in a single-supply system.

4. Output Stage: The outputs of the two amplifiers can then be connected to a differential-to-single-ended converter if a single-ended output is required. A resistor network or similar operational amplifier set up as a subtractor could be used for this.

5. Decoupling and Filtering: To ensure stability and minimize noise, use decoupling capacitors close to the power supply pins of the OP200AZ. Additional filtering may be required at the inputs and outputs, depending on the application's noise environment.

Design Considerations

- Power Supply: Careful management of the power supply is crucial, especially in single-supply operations, to ensure the op-amp functions within its optimal range without introducing signal distortion.

- Thermal Management: While the OP200AZ is designed for low power consumption, ensuring adequate thermal management in the final application can enhance performance and reliability.

- PCB Layout: Pay attention to the layout of the PCB to minimize noise pickup and ensure the shortest possible trace lengths for feedback and input lines to reduce parasitic capacitance and inductance effects.

- Input and Output Filtering: Depending on the application, filtering at the inputs and outputs may be necessary to reject unwanted frequencies and reduce the impact of high-frequency noise.

By leveraging the features of the OP200AZ, designers can create high-precision, low-power circuits suitable for a wide range of applications, from medical devices to industrial sensors, where accuracy and efficiency are paramount.
