Name: OP184ESZ-REEL
Brand: Analog Devices Inc.
SKU: OP184ESZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. OP184ESZ-REEL

Part No.:: OP184ESZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2959

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP184ESZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
4V/µs
GainBandwidthProduct:
4.25 MHz
-3dbBandwidth:
-
Current-InputBias:
80 nA
Voltage-InputOffset:
100 µV
Current-Supply:
2.25mA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP184ESZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP184ESZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP184ESZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP184ESZ-REEL information

Views：

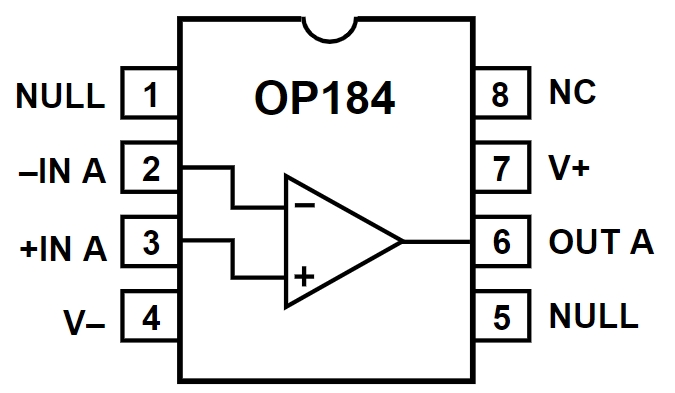

OP184ESZ-REEL Typical application Circuitry

OP184ESZ-REEL

The OP184ESZ-REEL is an operational amplifier (op-amp) designed for precision amplification applications. It stands out for its high accuracy, wide bandwidth, and the ability to operate from a single supply, making it versatile for both industrial and consumer applications.

Key Features:

- Single Supply Operation: Simplifies the design of circuits by enabling operation from a single power source.

- Low Noise: Critical for applications where signal integrity is paramount.

- High Speed: Offers a wide bandwidth for fast signal processing.

- Rail-to-Rail Output: In single-supply operations, maximizes the dynamic range.

Application Scenario: Active Low-Pass Filter for Audio Processing

In this application, the OP184ESZ-REEL is used in an active low-pass filter design, ideal for audio signal processing where removing high-frequency noise or shaping the audio signal is necessary.

Detailed Circuit Connection

Signal Input:

- Non-Inverting Input (Pin 3): The audio signal is connected to this pin. It may be preceded by a resistor to match impedance and a capacitor to block DC components.

Filter Configuration:

- Feedback Loop: Connected in parallel between the inverting input (Pin 2) and the output (Pin 6), this loop consists of a resistor (Rf) and a capacitor (Cf). The filter's cutoff frequency is set by this setup.

- Inverting Input (Pin 2): Also connected to ground through a capacitor (Ci) to set the filter's frequency response along with Rf and Cf.

Power Supply:

- V+ (Pin 7): Attached to the power source's positive terminal. To reduce power supply noise, use a decoupling capacitor in close proximity to this pin.

- Ground (Pin 4): Connects to the system ground, ensuring a stable reference for single-supply operation.

Design Considerations

Choosing Filter Components:

- The values of Rf, Cf, and Ci must be carefully selected to achieve the desired cutoff frequency and filter type (Butterworth, Chebyshev, etc.) for the application.

Power Supply Decoupling:

- Use capacitors close to the OP184ESZ-REEL power supply pins to ensure a stable and noise-free operation, crucial for high-fidelity audio applications.

Signal Range and Biasing:

- For single-supply operations, bias the non-inverting input (Pin 3) at mid-supply voltage if the audio signal is AC-coupled. This allows the OP184ESZ-REEL to process bipolar signals effectively.

Thermal Considerations:

- While the OP184ESZ-REEL generally does not generate excessive heat, consider thermal issues in tightly packed or high-temperature environments to ensure consistent performance.

Layout Practices:

- Minimize the length of signal paths, especially around high-impedance nodes, to reduce noise pickup and ensure stability. Grounding and power supply routing should be designed to minimize interference.

Incorporating the OP184ESZ-REEL into an active low-pass filter for audio processing exploits its low noise and high-speed characteristics, enhancing audio signal quality by attenuating undesired high-frequency components. Careful selection of components, power supply management, and strategic PCB layout are crucial to harnessing the full potential of the OP184ESZ-REEL in such applications. This approach demonstrates the chip's versatility in handling precision analog signal processing tasks.
