Analog Devices Inc. OP184ES-REEL

Part No.:: OP184ES-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 3441

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP184ES-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
4V/µs
GainBandwidthProduct:
4.25 MHz
-3dbBandwidth:
-
Current-InputBias:
80 nA
Voltage-InputOffset:
100 µV
Current-Supply:
2.25mA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP184ES-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP184ES-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP184ES-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP184ES-REEL information

Views：

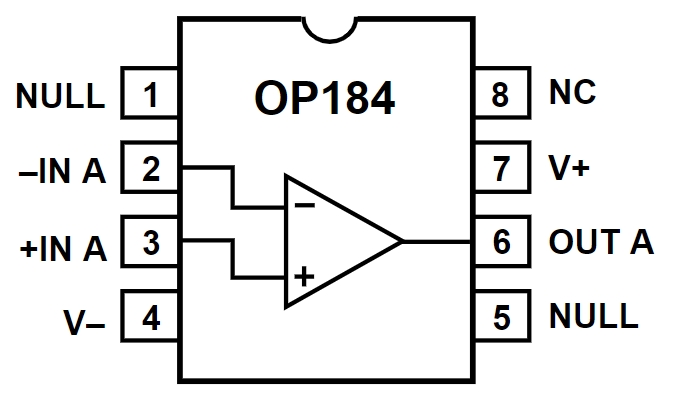

OP184ES-REEL Typical application Circuitry

OP184ES-REEL

The OP184ES-REEL is an operational amplifier (op-amp) designed for a broad range of applications, from precision instrumentation to general-purpose use. Its key features include high precision, low noise, and the ability to operate with a single power supply, making it an excellent choice for both professional and hobbyist projects.

Key Features:

- Single Supply Operation: Enables use in systems where only one power supply is available or desired, simplifying power architecture.

- Low Noise: Essential for applications requiring clean signal amplification, such as audio processing or sensitive measurements.

- Rail-to-Rail Output: Allows the output signal to swing close to the supply rails, maximizing signal dynamic range in single-supply operations.

- Wide Bandwidth: Supports applications requiring fast signal processing.

Application Scenario: Precision Analog Signal Conditioning for Sensor Data

In this application, the OP184ES-REEL is utilized to condition and amplify analog signals from a sensor before they are converted to digital signals by an Analog-to-Digital Converter (ADC).

Detailed Circuit Connection

Sensor Signal Input:

- Non-Inverting Input (Pin 3): The analog signal from the sensor is connected here. A filtering stage, such as a low-pass filter, may precede this connection to reduce high-frequency noise.

Feedback Network for Gain Setting:

- Feedback Resistor (Rf) between Output (Pin 6) and Inverting Input (Pin 2): Sets the amplification factor. The value of Rf, along with the input resistor (Rin) connected between the Inverting Input (Pin 2) and ground, determines the gain of the op-amp configuration.

- Compensation Capacitor (Cf) across Rf: Optional, to improve stability and reduce high-frequency noise.

Power Supply:

- Positive Supply (V+) to Pin 7: Connected to the positive terminal of the power source. Decoupling capacitors should be placed near this pin to minimize supply noise.

- Ground (Pin 4): The system's ground connection, crucial for single-supply configurations to ensure signal integrity and op-amp stability.

Design Considerations

Power Supply Decoupling:

- Use capacitors close to the OP184ES-REEL power supply pins to filter out noise, ensuring clean operation.

Gain Configuration:

- Carefully select Rin and Rf to achieve the desired gain while maintaining the OP184ES-REEL's bandwidth for your application.

Input and Output Ranges:

- Ensure the signal levels at the OP184ES-REEL inputs and the expected output levels are compatible with subsequent stages, like ADCs.

Thermal Management:

- Although the OP184ES-REEL is not typically associated with significant heat generation, in a tightly packed enclosure, adequate airflow or heat sinking may be necessary.

PCB Layout:

- Keep the layout as compact as possible, with short traces to minimize parasitic capacitances and inductances, especially in the feedback network to maintain stability.

Utilizing the OP184ES-REEL in precision analog signal conditioning for sensor data amplification allows leveraging its low noise and high precision capabilities. Ensuring proper gain configuration, power supply management, and careful consideration of the input and output ranges are key to achieving optimal performance. The OP184ES-REEL's flexibility in single-supply operation and rail-to-rail output makes it an ideal choice for a wide variety of applications requiring reliable signal processing.
