Analog Devices Inc. OP177FSZ-REEL7

Part No.:: OP177FSZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP177FSZ-REEL7.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 413

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP177FSZ-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
600 kHz
-3dbBandwidth:
-
Current-InputBias:
1.2 nA
Voltage-InputOffset:
10 µV
Current-Supply:
1.6mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP177FSZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP177FSZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP177FSZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP177FSZ-REEL7 information

Views：

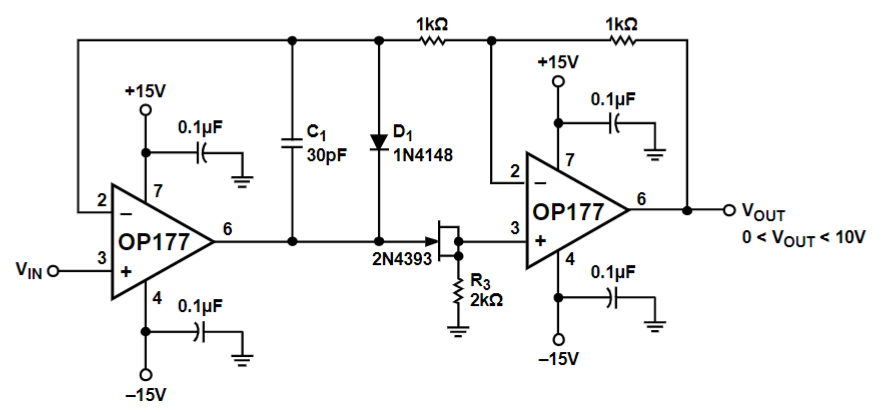

OP177FSZ-REEL7 Typical application Circuitry

OP177FSZ-REEL7

The OP177FSZ-REEL7 is an operational amplifier (op-amp) known for its ultra-precision and high performance. It is part of a product lineup that is designed for applications requiring very low offset voltage, low offset voltage drift, and a high gain bandwidth. This op-amp is particularly well-suited for high-accuracy applications, including but not limited to instrumentation, test equipment, and sensor interfaces.

Key Features:

- Ultra-Low Offset Voltage: This is crucial for applications that require high accuracy and minimal error in signal processing.

- Very Low Offset Voltage Drift: Provides stability over temperature variations, ensuring consistent performance.

- High Gain Bandwidth Product: This allows the op-amp to handle a wide range of frequencies without compromising the integrity of the signal.

- Low Noise: Essential for applications where signal fidelity is paramount.

- Operational Stability: The OP177FSZ-REEL7 is designed to be stable with capacitive loads, a common challenge for high-precision op-amps.

Application Scenario: High-Precision Data Acquisition System

In a high-precision data acquisition system, the OP177FSZ-REEL7 can be used to amplify small sensor outputs before they are digitized by an Analog-to-Digital Converter (ADC). The accuracy and stability of the op-amp ensure that the signal integrity is maintained, thus maximizing the quality of the digitized data.

Detailed Circuit Connection

Pin Configuration:

- Non-Inverting Input (Pin 3): This is where the sensor output is connected. A low-pass filter may be added between the sensor and this pin to reduce noise.

- Inverting Input (Pin 2): Connected to the output through a feedback resistor to set the gain of the amplifier.

- Output (Pin 6): This pin connects to the input of the ADC. It's crucial to ensure that the output voltage range of the OP177FSZ-REEL7 matches the input range of the ADC to maximize resolution.

- Positive Power Supply (Pin 7) and Negative Power Supply (Pin 4): These should be connected to a stable power source, with decoupling capacitors placed close to the pins to minimize power supply noise.

Design Considerations

Stability with Capacitive Loads:

- When using the OP177FSZ-REEL7 to drive capacitive loads, such as long cables or a high-input capacitance ADC, it's important to ensure stability by possibly adding a small resistor in series with the output to isolate the capacitive load.

Power Supply Noise:

- Implementing a clean and stable power supply is critical. Noise on the power supply can directly affect the performance of the OP177FSZ-REEL7. Low-dropout regulators and filtering capacitors can be used to minimize this noise.

Thermal Management:

- While the OP177FSZ-REEL7 typically operates with low power dissipation, in high voltage or high current scenarios, adequate heat sinking or thermal management techniques should be considered to prevent performance degradation due to heating.

Input Bias Current:

- Even though the OP177FSZ-REEL7 has a very low input bias current, in high-precision applications, this current can introduce errors. Matching the impedances at the inverting and non-inverting inputs can help minimize these errors.

Layout Considerations:

- For high-precision circuits utilizing the OP177FSZ-REEL7, careful PCB layout design is essential. Keeping the signal paths short and away from sources of noise, using ground planes for shielding, and considering the routing of power and signal lines can significantly impact performance.

In summary, the OP177FSZ-REEL7 op-amp is a versatile component for designing high-precision electronic systems. By paying close attention to the details of circuit design, power supply quality, thermal management, and PCB layout, developers can leverage this op-amp to create systems that meet stringent accuracy and stability requirements.
