Analog Devices Inc. OP177FSZ-REEL

Part No.:: OP177FSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP177FSZ-REEL.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 3309

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP177FSZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
600 kHz
-3dbBandwidth:
-
Current-InputBias:
1.2 nA
Voltage-InputOffset:
10 µV
Current-Supply:
1.6mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OP177FSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP177FSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP177FSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP177FSZ-REEL information

Views：

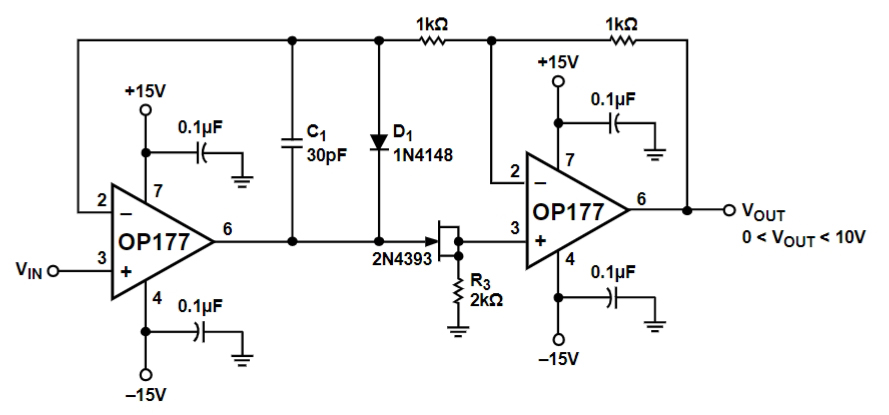

OP177FSZ-REEL Typical application Circuitry

OP177FSZ-REEL

The OP177FSZ-REEL is an operational amplifier (op-amp) renowned for its ultra-precision performance, marking it as an essential component in applications demanding high accuracy, stability, and minimal noise. It's specifically designed to cater to a broad spectrum of scenarios, from precision instrumentation, data acquisition systems, to industrial controls and medical equipment, owing to its exemplary parameters that include a significantly low offset voltage, minimal temperature drift, and a high gain bandwidth product.

Key Features:

- Ultra-Low Offset Voltage: Ensures exceptional accuracy in signal amplification, crucial for precision applications.

- Low Temperature Coefficient: Guarantees minimal drift in operational parameters with temperature variations, critical for reliable long-term performance.

- High Gain Bandwidth Product: Enables the OP177FSZ-REEL to perform effectively across a wide frequency range, broadening its application scope.

- Capacitive Load Tolerance: The OP177FSZ-REEL's design accommodates capacitive loads efficiently, ensuring stable operation under diverse conditions.

Application Scenarios:

- High-precision analog-to-digital converters

- Sensor signal conditioning

- Active filters and oscillators

- Precision voltage regulation

Specific Application Circuit: Sensor Signal Conditioning

Pin Configuration and Biasing:

- To initiate, the OP177FSZ-REEL must be correctly biased. The positive power supply (V+) connects to pin 7, and the negative power supply (V-) to pin 4, adhering to the chip's specifications for operating voltage range.

Signal Input Handling:

- Input Signal Coupling: A precision sensor's output is connected to the non-inverting input (pin 3) of the OP177FSZ-REEL. It's vital to use a coupling capacitor if the sensor output includes a DC bias that needs to be blocked, ensuring only the AC signal component is amplified.

Feedback Network for Gain Setting:

- Gain Adjustment: A resistor network is connected between the output (pin 6) and the inverting input (pin 2) of the OP177FSZ-REEL. Precision resistors determine the circuit's gain, and their values are selected based on the desired amplification factor. Including a trim pot in this network allows for fine-tuning the gain to accommodate for component tolerances.

Power Supply Decoupling:

- Noise Reduction: Decoupling capacitors are essential near the power supply pins of the OP177FSZ-REEL to filter out noise from the power source. This practice is crucial in maintaining the signal integrity, especially in sensitive applications.

Output Filtering and Protection:

- Ensuring Signal Purity: An output filter, configured based on the application's bandwidth requirements, can be employed to eliminate any high-frequency noise or oscillations. Additionally, protection diodes may be placed at the output to shield the OP177FSZ-REEL and subsequent stages from potential over-voltage conditions.

Design Considerations

When integrating the OP177FSZ-REEL into a sensor signal conditioning circuit, several factors need to be meticulously considered to ensure optimal performance:

- Component Precision: The selection of resistors and capacitors, especially in the feedback network, should prioritize precision and stability to maintain the desired gain accuracy and minimize temperature-induced drifts.

- Thermal Management: Given that the OP177FSZ-REEL may be subjected to various operating conditions, implementing effective thermal management practices is pivotal in preserving its performance and longevity.

- Layout Considerations: The physical layout of the circuit should minimize the loop areas to reduce susceptibility to electromagnetic interference (EMI), especially in environments with high levels of noise.

- Supply Voltage Stability: Ensuring that the power supply to the OP177FSZ-REEL is stable and well-regulated is critical, as fluctuations can significantly impact the op-amp's performance.

Conclusion

The OP177FSZ-REEL stands out as an ultra-precision operational amplifier suited for a wide range of high-accuracy applications. By adhering to detailed design practices, especially in sensor signal conditioning circuits, this op-amp can significantly enhance the performance and reliability of sophisticated electronic systems. Through careful component selection, feedback network design, and power supply management, the OP177FSZ-REEL can fulfill the requirements of the most demanding precision applications.
