Analog Devices Inc. OP1177ARZ-REEL

Part No.:: OP1177ARZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OP1177ARZ-REEL.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 8429

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OP1177ARZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.7V/µs
GainBandwidthProduct:
1.3 MHz
-3dbBandwidth:
-
Current-InputBias:
500 pA
Voltage-InputOffset:
15 µV
Current-Supply:
400µA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OP1177ARZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OP1177ARZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OP1177ARZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OP1177ARZ-REEL information

Views：

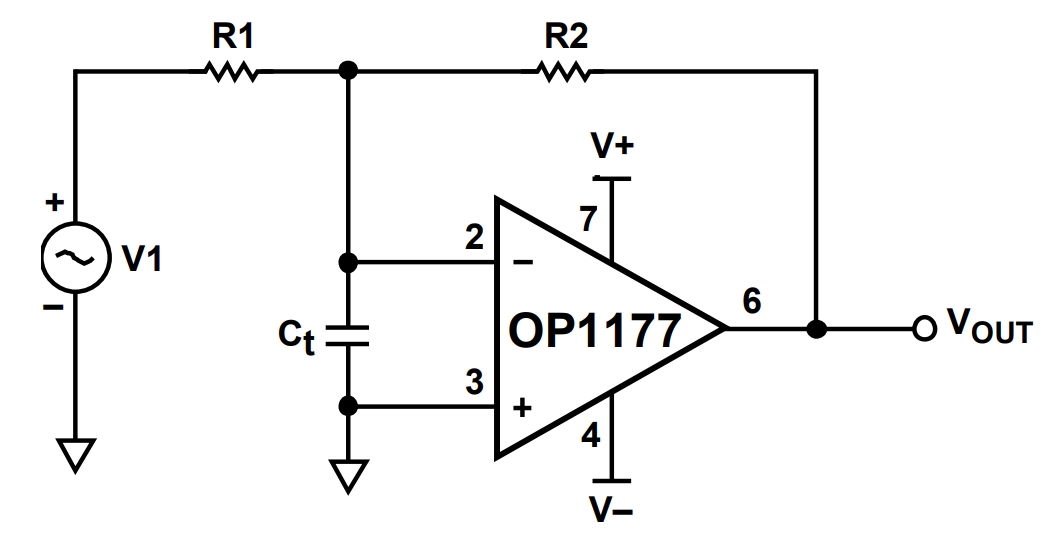

OP1177ARZ-REEL Typical application Circuitry

OP1177ARZ-REEL

The OP1177ARZ-REEL is a precision operational amplifier known for its low noise, low input bias current, and excellent power efficiency. This makes it highly suitable for applications that require accurate signal processing with minimal power consumption.

Applications of OP1177ARZ-REEL

1. Medical Instrumentation: Found in gadgets like blood pressure monitors and heart rate monitors that need accurate signal amplification.

2. Precision Measuring Equipment: Ideal for laboratory instruments where accurate signal processing is crucial, like in spectrometers and chromatographs.

3. Power Efficiency: Because of its low power consumption, this makes it perfect for battery-operated gadgets.

Key Features of OP1177ARZ-REEL

1. Low Noise Output: Crucial for applications where clarity and accuracy of signal amplification are paramount.

2. Low Input Bias Current: Minimizes error in high-impedance circuit applications, enhancing overall precision.

3. Energy Efficiency: Particularly advantageous for battery-operated devices due to its low power draw.

Circuit Design Example: Blood Pressure Monitor Amplifier

Detailed Circuit Layout Using OP1177ARZ-REEL:

1. Pressure Sensor Input (Pins 2 and 3): Attach the blood pressure sensor output to these pins. The non-inverting input is Pin 3, and the inverting input is Pin 2.

2. Amplifier Gain Setting (Pin 6 to Pin 2): Place a precision resistor between the output (Pin 6) and the inverting input (Pin 2) to configure the gain.

3. Power Supply Connections (Pins 7 and 4): Hook up a stable power supply to these pins, essential for the low-power operation of the OP1177ARZ-REEL.

4. Output Signal (Pin 6): The amplified signal from the blood pressure sensor is available at this pin.

5. Grounding (Pin 4): Effective grounding is crucial for reducing noise and enhancing the accuracy of the readings.

Design Considerations with OP1177ARZ-REEL

1. Power Supply Stability: A clean and stable power supply is key to maintaining the performance of the OP1177ARZ-REEL.

2. PCB Layout Design: Carefully planning the PCB layout is essential to minimize parasitic effects and preserve signal integrity.

3. Thermal Management: Efficient heat dissipation is important, particularly in compact or enclosed device designs.

4. Voltage Range Adherence: Ensure the circuit operates within the specified voltage ranges of the OP1177ARZ-REEL.

5. Component Quality: Selecting high-quality external components is important to complement the high-precision nature of the OP1177ARZ-REEL.

This example demonstrates setting up a blood pressure monitor amplifier using the OP1177ARZ-REEL. The OP1177ARZ-REEL's low noise and power efficiency make it suitable for a variety of applications, each requiring specific design adjustments.
