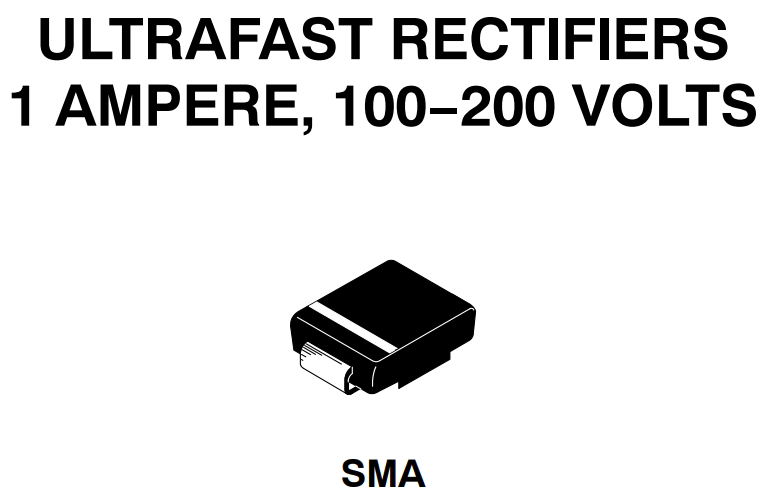

ON Semiconductor NRVUA120VT3G

Part No.:: NRVUA120VT3G

Manufacturer:: ON Semiconductor

Package:: DO-214AC, SMA

Datasheet:: NRVUA120VT3G.pdf

Description:: DIODE GEN PURP 200V 2A SMA

In Stock:: 2317

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NRVUA120VT3G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Standard
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
35 ns
Current - Reverse Leakage @ Vr:
2 µA @ 200 V
Voltage - DC Reverse (Vr) (Max):
200 V
Current - Average Rectified (Io):
1A (DC)
Operating Temperature - Junction:
-65°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If:
875 mV @ 1 A
