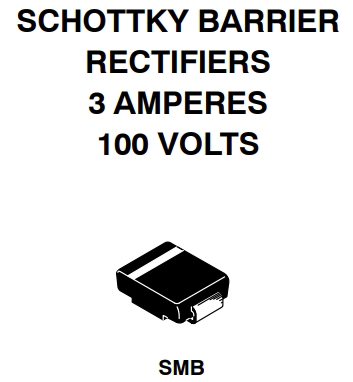

onsemi NRVTSS3100ET3G

Part No.:: NRVTSS3100ET3G

Manufacturer:: onsemi

Package:: DO-214AA, SMB

Datasheet:: NRVTSS3100ET3G.pdf

Description:: 3A 100V LOW VF TRENCH RECTIFIER

In Stock:: 3239

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NRVTSS3100ET3G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
14.4pF @ 100V, 1MHz
Reverse Recovery Time (trr):
-
Current - Reverse Leakage @ Vr:
5 µA @ 100 V
Voltage - DC Reverse (Vr) (Max):
100 V
Current - Average Rectified (Io):
3A
Operating Temperature - Junction:
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If:
995 mV @ 3 A
