Nordic Semiconductor ASA NRF24L01P-R

Part No.:: NRF24L01P-R

Manufacturer:: Nordic Semiconductor ASA

Package:: 20-VFQFN Exposed Pad

Datasheet:: NRF24L01P-R.pdf

Description:: IC RF TXRX ISM>1GHZ 20VFQFN

In Stock:: 763

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NRF24L01P-R Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
TxRx Only
RFFamily/Standard:
General ISM > 1GHz
Protocol:
-
Modulation:
GFSK
Frequency:
2.4GHz
DataRate(Max):
2Mbps
Power-Output:
0dBm
Sensitivity:
-94dBm
MemorySize:
-
SerialInterfaces:
SPI
GPIO:
-
Voltage-Supply:
1.9V ~ 3.6V
Current-Receiving:
12.6mA ~ 13.5mA
Current-Transmitting:
7mA ~ 11.3mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NRF24L01P-R this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NRF24L01P-R price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NRF24L01P-R to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NRF24L01P-R information

Views：

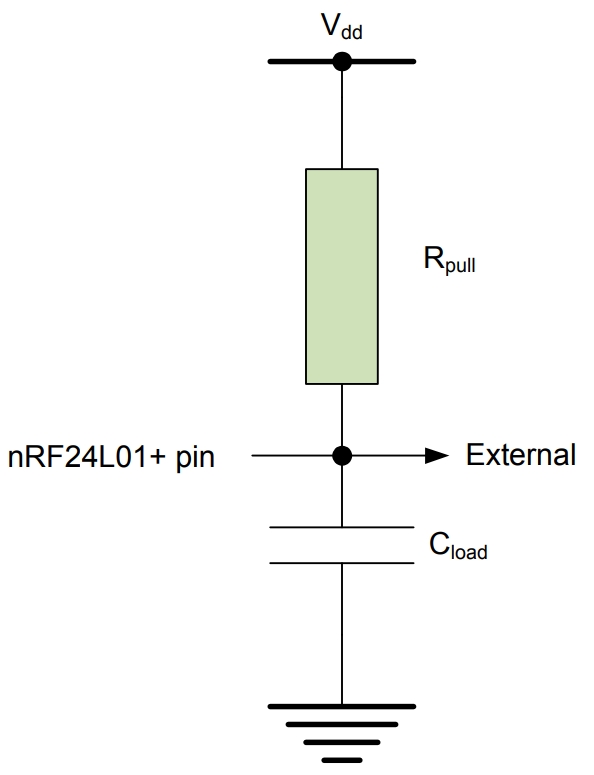

NRF24L01P-R Typical application Circuitry

NRF24L01P-R

The NRF24L01P-R is a variant of the NRF24L01+ series, a popular wireless transceiver chip that enables wireless communication on the 2.4 GHz ISM band.

Usage Scenarios:

It's widely used in remote controls, wireless mouse and keyboard devices, and IoT applications.

Parameters of Character:

- ISM Band frequency: 2.4 GHz

- Maximum Data Rate of 2 Mbps

- Integrated: MultiCeiver™ technology supports six data pipes

- Power Efficiency: Low power consumption modes available

Example Scenario – Remote Control System:

1. Power Supply:

- VCC to 3.3V: Connect VCC pin to a 3.3V power source.

- GND to System Ground: Common ground is crucial for stability.

2. Data Communication:

- SPI Interface: Connect MISO, MOSI, SCK, and CSN to respective SPI pins on the microcontroller.

3. Operational Mode Control:

- CE Pin Activation: Use a GPIO pin to control the CE pin, which switches the chip between standby, RX, and TX modes.

4. Status Monitoring:

- IRQ Pin Utilization: Connect IRQ to an interrupt-capable pin on the microcontroller for handling events such as data arrival or transmission completion.

Circuit Design Considerations:

1. Stable Power Source: Ensure power stability to avoid communication errors.

2. SPI Line Integrity: Keep SPI connections short and use impedance matching where necessary.

3. Antenna Design: Antenna performance is vital for signal quality; consider using a pre-certified module if RF design experience is limited.

4. Placement and Shielding: Place the module away from noisy components and consider shielding if operating in a noisy environment.

In designing a circuit with the NRF24L01P-R, considerations such as power supply stability, SPI line integrity, antenna design, and strategic placement are imperative for ensuring reliable and efficient operation in applications like remote control systems.
