Name: NRF24L01-REEL7
Brand: Nordic Semiconductor ASA
SKU: NRF24L01-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Nordic Semiconductor ASA NRF24L01-REEL7

Part No.:: NRF24L01-REEL7

Manufacturer:: Nordic Semiconductor ASA

Package:: 20-VFQFN Exposed Pad

Datasheet:: NRF24L01-REEL7.pdf

Description:: IC RF TXRX ISM>1GHZ 20VFQFN

In Stock:: 3092

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NRF24L01-REEL7 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
Type:
TxRx Only
RFFamily/Standard:
General ISM > 1GHz
Protocol:
-
Modulation:
GFSK
Frequency:
2.4GHz
DataRate(Max):
2Mbps
Power-Output:
0dBm
Sensitivity:
-85dBm
MemorySize:
-
SerialInterfaces:
SPI
GPIO:
-
Voltage-Supply:
1.9V ~ 3.6V
Current-Receiving:
11.1mA ~ 12.3mA
Current-Transmitting:
7mA ~ 11.3mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NRF24L01-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NRF24L01-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NRF24L01-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NRF24L01-REEL7 information

Views：

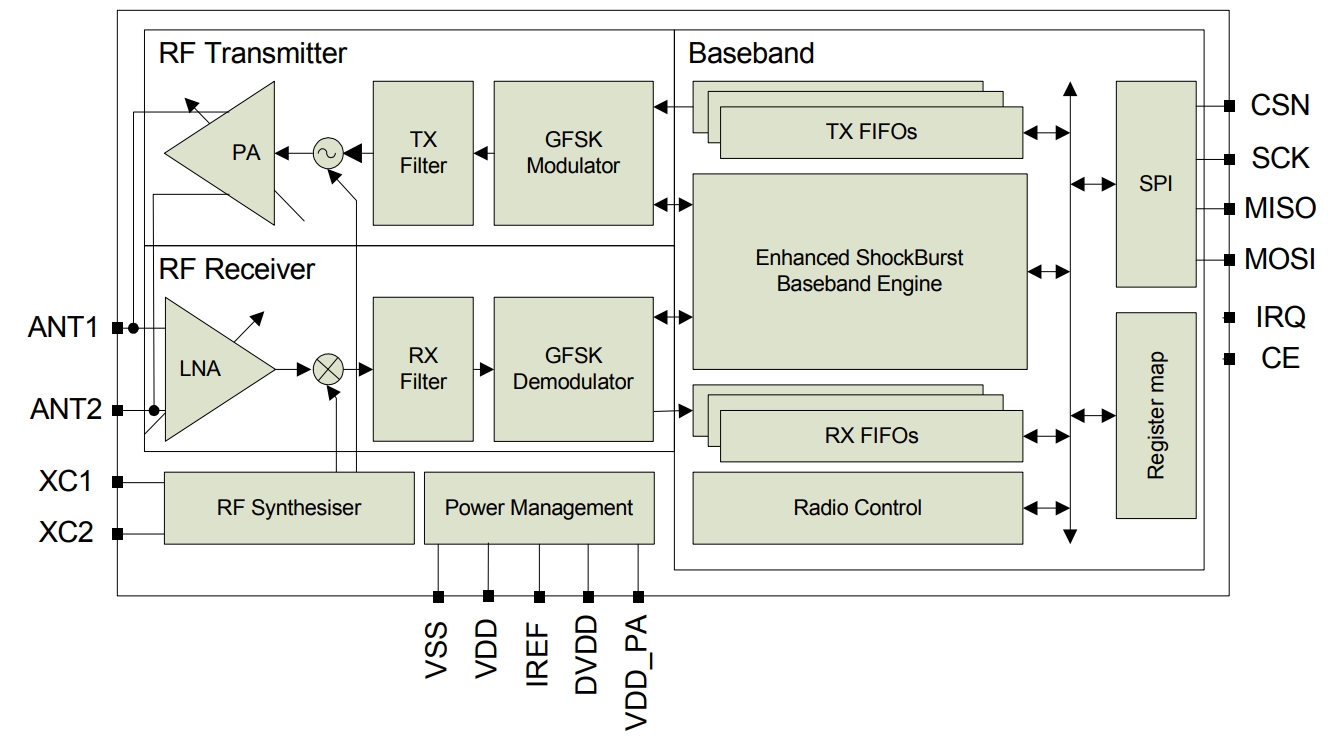

NRF24L01-REEL7 Typical application Circuitry

NRF24L01-REEL7

The NRF24L01-REEL7 is essentially a variant of the NRF24L01 transceiver module, specifically packaged as a reel for automated manufacturing. This module is designed for rapid and efficient wireless data communication.

Utilization Scenarios: It finds its use in environments where automated assembly is prevalent, such as in the manufacturing of consumer electronics, wireless keyboards, mice, and remote control devices.

Characteristic Parameters: This variant maintains similar characteristics to the NRF24L01, with the capability for 2.4GHz wireless communication, multiple data rate options (250kbps, 1Mbps, and 2Mbps), and a multitude of channels to avoid interference.

Scenario-specific Circuit Connection:

1. Supply Voltage Connectivity:

- Pin 2 (VCC): Link this to a 3.3V power source.

- Pin 1 (GND): This should be connected to the power supply's ground.

2. SPI Communication:

- Pin 7 (MISO): Tie to your microcontroller's SPI MISO.

- Pin 6 (MOSI): This is to be connected to your microcontroller's SPI MOSI.

- Pin 5 (SCK): Attach to your microcontroller's SPI Clock.

- Pin 4 (CSN): Interface with a microcontroller digital pin to serve as chip select.

3. Operational Pins:

- Pin 3 (CE): Connect to a digital pin on your microcontroller to actuate the module's RF part.

- Pin 8 (IRQ): Optionally, interface this with a microcontroller digital pin to receive interrupts.

Circuit Design Considerations:

- Voltage Stability: Confirm that the power supply is stable at 3.3V to prevent module performance issues.

- Antenna Implementation: The design and location of the antenna are pivotal for the module's communication range and stability.

- Signal Interference: Be cautious of the 2.4GHz frequency band's congestion due to various devices, including Wi-Fi.

- PCB Arrangement: An optimized PCB layout with strategic grounding and noise reduction is vital.

In essence, the NRF24L01-REEL7 is a transceiver module geared towards automated assembly processes, offering the same robust wireless communication features as its NRF24L01 counterpart, and it is optimal for high-volume, automated manufacturing environments.
