Nordic Semiconductor ASA NRF24L01

Part No.:: NRF24L01

Manufacturer:: Nordic Semiconductor ASA

Package:: 20-VFQFN Exposed Pad

Datasheet:: NRF24L01.pdf

Description:: IC RF TXRX ISM>1GHZ 20VFQFN

In Stock:: 2707

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NRF24L01 Specifications

Packaging:
Tray
Series:
-
ProductStatus:
Active
Type:
TxRx Only
RFFamily/Standard:
General ISM > 1GHz
Protocol:
-
Modulation:
GFSK
Frequency:
2.4GHz
DataRate(Max):
2Mbps
Power-Output:
0dBm
Sensitivity:
-85dBm
MemorySize:
-
SerialInterfaces:
SPI
GPIO:
-
Voltage-Supply:
1.9V ~ 3.6V
Current-Receiving:
11.1mA ~ 12.3mA
Current-Transmitting:
7mA ~ 11.3mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NRF24L01 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NRF24L01 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NRF24L01 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NRF24L01 information

Views：

Unlock the Full Potential of the NRF24L01 Transceiver

The NRF24L01 handset could be a prevalent choice for remote communication in DIY ventures. It joins gadgets over brief separations with moo control utilization, making it perfect for specialists and engineers. Congruous with different stages, it's culminate for farther control frameworks and IoT applications.

Catalog

Diagram of the NRF24L01 Module

The handset works at a recurrence of 2.4 GHz and can communicate with other gadgets over separations of up to 100 meters or more, depending on the environment and radio wire utilized. It employments Gaussian Recurrence Move Keying (GFSK) balance, which guarantees steady communication indeed in boisterous situations.

This module underpins a few key highlights, such as numerous information rates (250 kbps, 1 Mbps, and 2 Mbps), programmed bundle taking care of, and improved ShockBurst innovation. These highlights make it reasonable for applications that require dependable, low-power remote communication.

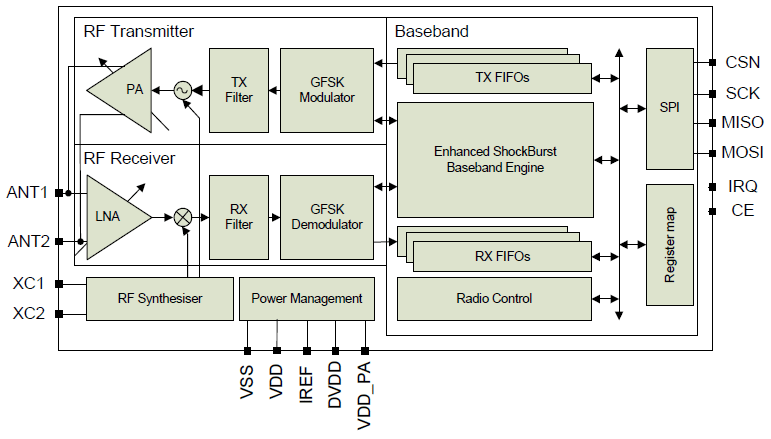

NRF24L01 Block Diagram

/NRF24L01 Block Diagram

Key Highlights

Moo Control Utilization: Working at a voltage run of 1.9V to 3.6V, this module is idealize for battery-powered gadgets.
Communication Run: It can cover separations from 30 meters to over 100 meters, depending on the environment.
Multi-Device Back: The module permits communication with up to six devices at the same time, making it perfect for building remote systems.
On-Chip Voltage Regulator: This feature simplifies power management by stabilizing the voltage input.

How to Use it with Arduino

This module integrates seamlessly with development platforms like Arduino, making it easy to set up wireless communication. The integration of nrf24l01 arduino expands possibilities for DIY projects, enabling versatile wireless communication.

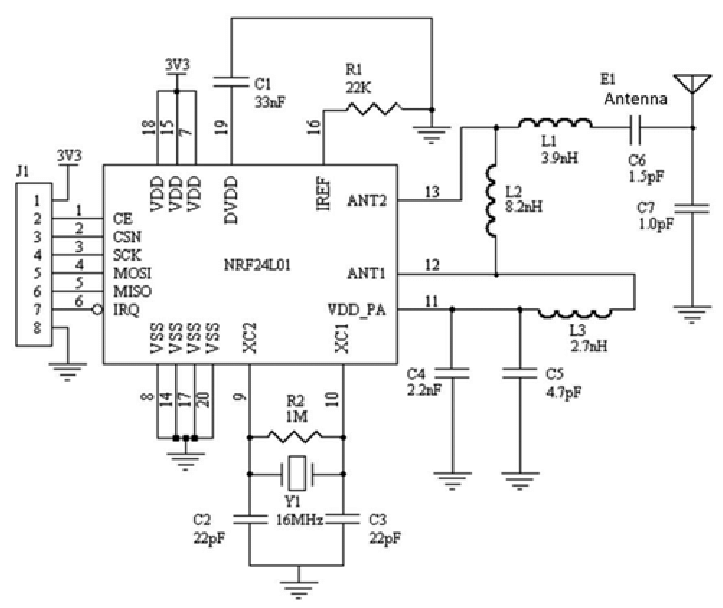

NRF24L01 Schematic

NRF24L01 schematic for RF layouts with single ended 50Ω RF output

Getting Started with the Module and Arduino

To induce begun, you'll require an Arduino board, the handset module, and jumper wires. The RF24 library rearranges the coding prepare, permitting you to center on your venture without stressing almost the low-level subtle elements of remote communication.

Step-by-Step Setup

Connect the Module: The device has eight pins, including VCC, GND, CE, CSN, SCK, MOSI, and MISO. Connect VCC to 3.3V on the Arduino (not 5V, as it can damage the module). Connect the GND pin of the module to the GND pin of the Arduino for proper grounding. Then, wire the remaining pins to the corresponding SPI pins on the Arduino.
Install the RF24 Library: Open the Arduino IDE, go to the Library Manager, and install the RF24 library.
Write the Code: The RF24 library provides sample sketches to get you started. You can customize these examples to suit your project needs.

Using these steps, you can set up basic communication between two Arduino boards. This makes it possible to build projects like wireless sensors or remote control systems.

Troubleshooting Tips

If you encounter issues during setup, here are some common problems and solutions:

Power Issues: The module is sensitive to voltage fluctuations. Ensure a stable 3.3V power supply, and consider using capacitors to stabilize the voltage.
Short Range: If the communication range is shorter than expected, check for obstacles or consider using an external antenna.
Communication Errors: Double-check wiring and ensure both modules use the same communication settings, such as data rate and channel.

Advanced Applications

Once you've effectively set up communication between an nrf24l01 and arduino, you'll investigate more progressed ventures. The flexibility of this handset permits for a wide extend of applications, from sensor systems to farther control frameworks.

Remote Sensor Systems

This module is well-suited for building remote sensor systems. By interfacing numerous sensor nodes to a central center, you'll screen diverse situations remotely. This can be especially valuable for applications like domestic mechanization or natural checking.

Building a Essential Organize

Sensor Hubs: Each hub comprises of a sensor (such as temperature or mugginess) associated to an Arduino and the remote module.
Central Hub: The hub consists of another Arduino and the transceiver module, receiving data from all sensor nodes.
Data Handling: The RF24 library helps you manage data transmission between nodes and the central hub.

Remote Control Systems

The module can also be used to set up remote control systems. Whether you're controlling a robot, drone, or other devices, the combination of arduino nrf24l01 provides a reliable communication link.

Setting Up a Remote Control System

Controller: The controller consists of an Arduino, an input device (like a joystick), and the transceiver module.
Receiver: The receiver is another Arduino connected to the device being controlled.
Commands: The controller sends commands wirelessly to the collector, which at that point executes the comparing activities.

Investigating the NRF24L01 Datasheet

For those who need to completely investigate the potential of the handset, a profound plunge into the nrf24l01 datasheet is basic. The datasheet offers point by point data on highlights, pinout, and setup alternatives, permitting you to optimize execution and troubleshoot complex issues.

The datasheet moreover gives data on the module's electrical characteristics, timing charts, and communication conventions. Typically particularly valuable for fine-tuning your setup and maximizing proficiency.

Specifications

Manufacturer

Part Number

Frequency Band

Data Rate

Sensitivity

Output Power Range

Interface

Texas Instruments

CC2500

2.4 GHz

500 Kbps

-104 dBm

-30 to +1 dBm

SPI

Microchip Technology

MRF24J40MA

2.4 GHz

250 Kbps

-102 dBm

-18 to 0 dBm

SPI

Cypress Semiconductor

CYRF6936

2.4 GHz

1 Mbps

-97 dBm

-18 to 0 dBm

SPI

Hope RF

RFM75

2.4 GHz

2 Mbps

-85 dBm

-20 to +1 dBm

SPI

Conclusion

This handset module could be a effective and flexible component for remote communication ventures. Its moo control utilization, solid execution, and simple integration with advancement stages like arduino and nrf24l01 make it a beat choice for a wide run of applications.

By starting with essential ventures and slowly investigating more progressed employments, you'll unlock the complete potential of this module in your remote communication endeavors. The conceivable outcomes are perpetual once you combine the correct devices, information, and inventiveness.

NRF24L01 FAQ

1. How to order NRF24L01 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that NRF24L01 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NRF24L01. All suppliers must pass our qualification reviews before they can publish their products including NRF24L01 on icwhale.com; we pay more attention to the channels and quality of NRF24L01 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NRF24L01 price and inventory displayed accurate?

The price and inventory of NRF24L01 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
