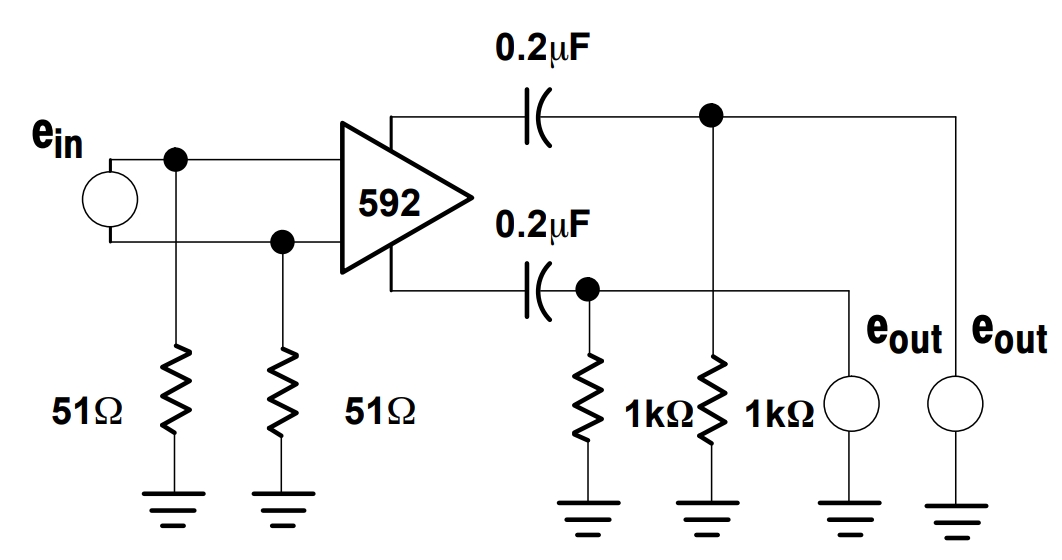

NE592D8R2G Typical application Circuitry

NE592D8R2G

The NE592D8R2G is an integrated circuit primarily used as a video amplifier. Its applications often span across television and broadcast video systems, cable drivers, and any scenario where video signal amplification is necessary.

Characteristic features typically include:

1. Wide Bandwidth: Enables it to handle high-frequency video signals.

2. Gain Stability: Ensures consistent amplification across different signals.

3. Low Noise: Critical for maintaining signal integrity in video applications.

Let's explore its application in a basic video signal amplification setup:

Detailed Pin Configuration:

- Pin 1 (Input): Receives the raw video signal.

- Pin 2 (Ground): Establishes a common electrical reference point.

- Pin 3 (Output): Delivers the amplified video signal.

- Pin 4 (+Vcc): Connects to the positive terminal of the power source.

- Pin 5 (Gain Control): Alters gain through an external resistor or voltage.

- Pin 6 (Inverting Input): Offers an alternative input, often grounded in single-ended applications.

- Pin 7 (-Vee): Attaches to the negative power supply terminal.

- Pin 8 (Stabilization): Linked with a capacitor to the ground for frequency stability.

Principal Components for the Circuit:

- Resistors (R1, R2): Define input impedance and gain control when connected to Pin 5.

- Capacitors (C1, C2): Coupled with input and output for AC signal processing.

Frequency Stability Equation:

Frequency stability is a function of the capacitance connected to Pin 8 (Stabilization), often determined empirically based on the application's requirements.

Design Prerequisites:

1. Impedance Matching: Crucial for maximizing signal transfer without reflections.

2. Power Supply Rejection: Ensure a clean power supply to minimize interference.

3. Signal Integrity: Employ shielding and proper grounding to reduce noise.

4. Component Quality: Choose precision components to maintain signal fidelity.

5. Thermal Management: Consider heat dissipation if operating at high frequencies or gains.

In a video signal amplification scenario, the NE592D8R2G offers a straightforward means of boosting the signal strength without significantly compromising the signal quality. Whether it's enhancing the clarity of a CCTV feed or ensuring cable transmission integrity, the NE592D8R2G's attributes make it an invaluable component in the realm of video processing.

NE592D8R2G information

NE592D8R2G Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Applications:
General Purpose
OutputType:
Differential
NumberofCircuits:
1
-3dbBandwidth:
-
SlewRate:
-
Current-Supply:
18 mA
Current-Output/Channel:
10 mA
Voltage-SupplySingle/Dual(±):
±3V ~ 8V
MountingType:
Surface Mount
