Name: AD813AR-14-REEL7
Brand: Analog Devices Inc.
SKU: AD813AR-14-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD813AR-14-REEL7

Part No.:: AD813AR-14-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD813AR-14-REEL7.pdf

Description:: IC AMP CURRENT FEEDBACK 14SOIC

In Stock:: 2092

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD813AR-14-REEL7 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Applications:
Current Feedback
OutputType:
-
NumberofCircuits:
3
-3dbBandwidth:
100 MHz
SlewRate:
250V/µs
Current-Supply:
4.5 mA
Current-Output/Channel:
50 mA
Voltage-SupplySingle/Dual(±):
2.4V ~ 36V, ±1.2V ~ 18V
MountingType:
Surface Mount

AD813AR-14-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD813AR-14-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD813AR-14-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD813AR-14-REEL7 information

Views：

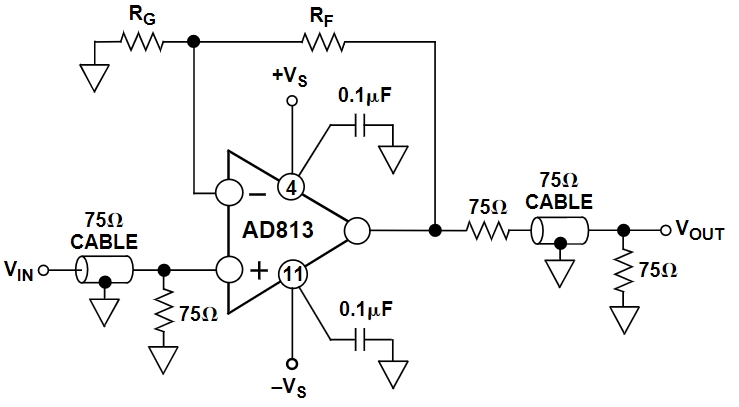

AD813AR-14-REEL7 Typical application Circuitry

AD813AR-14-REEL7

The AD813AR-14-REEL7 is a triple video amplifier designed to deliver high-speed, high-performance signal amplification. This AD813AR-14-REEL7 chip is a favorite in video processing applications due to its excellent bandwidth and fast settling time.

Versatile Applications:

1. Video Signal Amplification: Ideal for driving video signals in displays and monitors.

2. RGB Amplifiers: Used in RGB amplifiers for color video processing.

3. Cable Drivers: Employed as cable drivers in long-distance video transmission systems.

Noteworthy Features:

- High Bandwidth: The AD813AR-14-REEL7 boasts a bandwidth of 160 MHz, ensuring clear video signal transmission.

- Quick Setup Time: With a little 10 ns settling time, it's ideal for high-speed video applications.

- Low Power Consumption: Its low power usage makes it suitable for battery-operated devices.

Circuit Design for Video Signal Amplification:

1. Input Connection:

- Connect the video input signal to the non-inverting input (pin 9) of one of the amplifiers in the AD813AR-14-REEL7.

2. Feedback and Gain Setting:

- Place a 75 Ω resistor between the output (pin 8) and the inverting input (pin 10) to set the gain at unity for impedance matching.

- For higher gain, adjust the resistor values accordingly.

3. Power Supply Configuration:

- Apply a +5V supply to the positive power supply pin (pin 14) and connect the negative power supply pin (pin 4) to ground.

4. Output Stage:

- The amplified video signal can be taken from the output pin (pin 8).

- Terminate the output with a 75 Ω resistor to match the impedance of the video transmission line.

Key Design Considerations:

- Impedance Matching: Ensure proper impedance matching to prevent signal reflection and distortion.

- Power Supply Filtering: To reduce noise and ripple, use bypass capacitors close to the power supply pins.

- Thermal Management: To ensure steady performance, particularly in high-speed applications, keep the chip cold.

In summary, the AD813AR-14-REEL7 is a high-performance video amplifier that excels in applications requiring fast, clear video signal amplification. By following the outlined circuit design and considerations, engineers can harness the full potential of this chip in their video processing projects.
