Name: NE5534DRG4
Brand: Texas Instruments
SKU: NE5534DRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments NE5534DRG4

Part No.:: NE5534DRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: NE5534DRG4.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 3077

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE5534DRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
13V/µs
GainBandwidthProduct:
10 MHz
-3dbBandwidth:
-
Current-InputBias:
500 nA
Voltage-InputOffset:
500 µV
Current-Supply:
4mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

NE5534DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE5534DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE5534DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE5534DRG4 information

Views：

NE5534DRG4 Typical application Circuitry

NE5534DRG4

A low-noise, high-performance operational amplifier is the NE5534DRG4. It's utilized in various fields such as high-quality audio systems, professional audio equipment, precision instrumentation, and sensor signal amplification due to its exceptional noise performance and low distortion.

Application Scenario:

Precision Analog-to-Digital Converter (ADC) Interface. In this scenario, the NE5534DRG4 serves as a buffer and amplifier to condition the signal before it's converted by the ADC, ensuring high accuracy and minimal signal distortion.

Key Parameter Features of the NE5534DRG4 include:

- Low noise performance, ideal for audio and instrumentation applications

- High gain bandwidth product, facilitating wideband amplification

- Low harmonic distortion, preserving signal fidelity

- High input impedance, minimizing loading on the previous stage

- Wide supply voltage range, offering flexibility in various circuit designs

For the ADC interface application, a detailed circuit connection method is as follows:

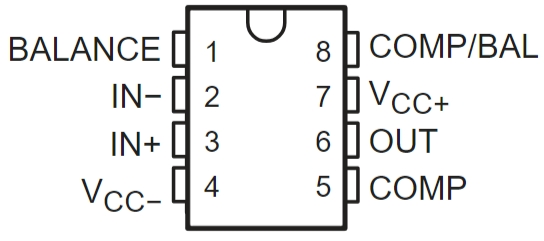

1.Power Supply Connection: Begin by connecting pin 7 (V+) of the NE5534DRG4 to the positive supply and pin 4 (V-) to the negative supply or ground. This establishes the operational voltage range for the amplifier.

2.Signal Input: The analog signal intended for digitization is fed into pin 3 (non-inverting input), ensuring that the signal's integrity is maintained. Pin 2 (inverting input) is typically connected through a resistor to the output (pin 6), forming a feedback loop to set the gain of the amplifier.

3.Gain Setting: The gain of the NE5534DRG4 is determined by the ratio of the feedback resistor (between pins 2 and 6) to the resistor connected from pin 2 to ground. Adjusting these resistors allows for precise control over the signal amplification, crucial for matching the ADC's input range.

4.Output to ADC: Next, pin 6's conditioned signal is sent to the input of the ADC. A coupling capacitor may be used to block DC components if only AC signals are of interest.

Circuit Design Considerations involve:

1. Impedance Matching: Ensuring the output impedance of the NE5534DRG4 and the input impedance of the ADC are compatible for optimal signal transfer.

2. Power Decoupling: Implementing decoupling capacitors close to the NE5534DRG4 power pins to reduce noise and ripple from the power supply.

3. Thermal Management: Despite the NE5534DRG4's low power consumption design, heat dissipation must be taken into account while designing the circuit layout in order to avoid performance shifts brought on by heat.

4. Signal Bandwidth and Filtering: Selecting appropriate bandwidth and implementing filters to prevent aliasing in the ADC while ensuring the NE5534DRG4 operates within its optimal frequency range.

By meticulously designing the circuit around the NE5534DRG4 for an ADC interface application, one can achieve high-precision signal conditioning, which is paramount in applications requiring accurate digital representation of analog signals.
