Texas Instruments NE5532PSR

Part No.:: NE5532PSR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: NE5532PSR.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SO

In Stock:: 2000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE5532PSR Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
9V/µs
GainBandwidthProduct:
10 MHz
-3dbBandwidth:
-
Current-InputBias:
200 nA
Voltage-InputOffset:
500 µV
Current-Supply:
8mA (x2 Channels)
Current-Output/Channel:
38 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

NE5532PSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE5532PSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE5532PSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE5532PSR information

Views：

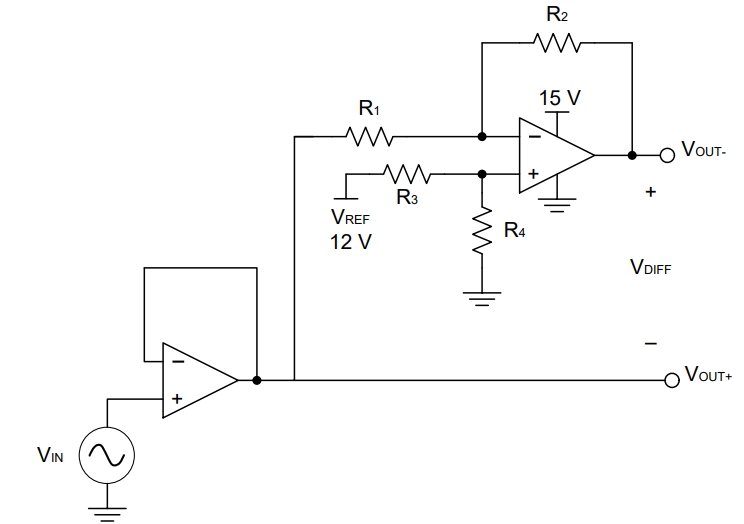

NE5532PSR Typical application Circuitry

NE5532PSR

The NE5532PSR is an operational amplifier (op-amp) integrated circuit (IC) commonly utilized in audio applications due to its high fidelity and low noise characteristics.

Principal Characteristics:

1. Dual Op-Amp Configuration: Houses two independent op-amps, facilitating multifaceted applications.

2. High Gain Bandwidth: Supports a broad frequency spectrum, crucial for audio processing.

3. Low Noise: Reduces signal interference, thereby enhancing audio clarity.

4. High Slew Rate: Ensures rapid voltage change response, beneficial for fast signal processing.

Application Environment:

A typical application for the NE5532PSR is in audio mixing consoles.

Circuit Implementation:

1. Voltage Supply: Pins 8 and 4 must be connected to positive and negative power supplies, respectively, within the IC's specified voltage range.

2. Input Staging: The input audio signal is directed to pin 3, which is the non-inverting input of the first internal op-amp.

3. Feedback Loop: Employing a resistor network between pins 1 and 2 (output and inverting input, respectively) provides customizable gain settings.

4. Signal Output: The modified audio signal can be retrieved from pin 1, the output of the first op-amp.

Design Considerations:

1. Biasing: Proper biasing of the op-amp is crucial to avoid distortion and ensure linear operation.

2. Bypass Capacitors: Employing bypass capacitors near the power supply pins is recommended to filter out noise.

3. Thermal Management: If the IC is expected to operate under high power conditions, adequate thermal management is necessary to prevent overheating.

4. Signal Integrity: Careful routing and shielding of the signal paths are essential to maintain signal integrity and reduce crosstalk.

Incorporating the NE5532PSR into an audio mixer circuit allows for precise control over audio signal mixing and amplification, ensuring high-quality output while addressing key design aspects such as power stability, signal integrity, and thermal management.
