Name: NE5532P
Brand: Texas Instruments
SKU: NE5532P
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments NE5532P

Part No.:: NE5532P

Manufacturer:: Texas Instruments

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: NE5532P.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8DIP

In Stock:: 2769

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE5532P Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
9V/µs
GainBandwidthProduct:
10 MHz
-3dbBandwidth:
-
Current-InputBias:
200 nA
Voltage-InputOffset:
500 µV
Current-Supply:
8mA (x2 Channels)
Current-Output/Channel:
38 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Through Hole

NE5532P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE5532P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE5532P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE5532P information

Views：

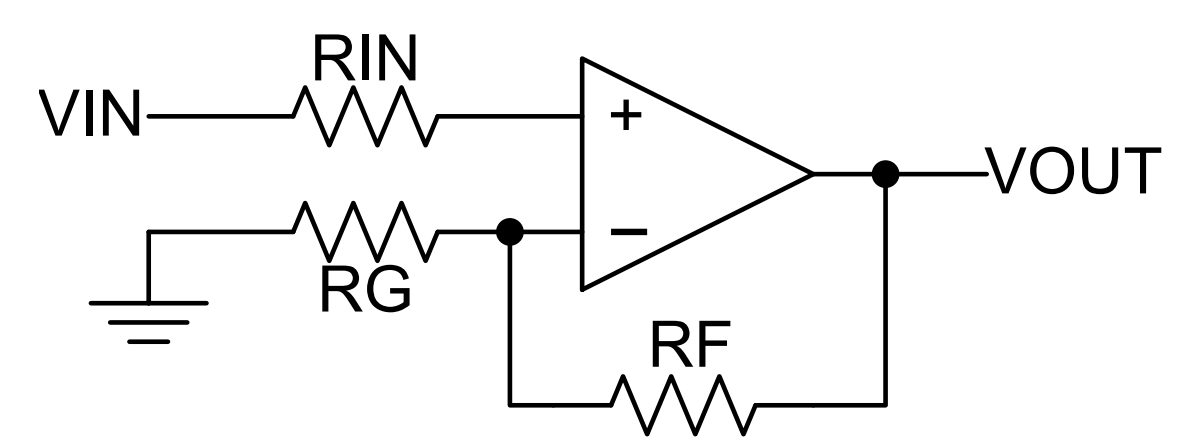

NE5532P Typical application Circuitry

NE5532P

The NE5532P is a high-performance operational amplifier (op-amp) known for its low noise characteristics, making it suitable for audio applications.

Key Features:

1. Low Distortion: The device typically showcases total harmonic distortion below 0.003%.

2. Low Noise: The input noise voltage is around 5 nV/√Hz, making it an excellent choice for high-fidelity audio applications.

3. High Gain Bandwidth: With a bandwidth of around 10 MHz, it can efficiently handle a broad spectrum of signals.

4. Dual Op-Amp: The package contains two op-amps, facilitating design flexibility.

Application Scenarios:

A frequent use case for the NE5532P is in an audio mixer, where it can serve as a summing amplifier, combining multiple audio inputs into one output with minimal noise and distortion.

Circuit Connection Details:

1. Voltage Supply: Pins 8 and 4 are connected to the positive and negative power supply, respectively. It is imperative to confirm that the voltage supply is within the designated range of the chip.

2. Input Signal: The audio inputs to be mixed are connected to the non-inverting inputs, Pins 3 and 5, via series resistors.

3. Feedback and Gain Setting: The inverting inputs, Pins 2 and 6, are connected to the respective outputs, Pins 1 and 7, through feedback resistors. This sets the gain for each op-amp.

4. Output Combination: The outputs from Pins 1 and 7 are joined together through equal resistors to mix the signals, and the combined output is taken from this junction.

Design Points to Remember:

1. Power Decoupling: To reduce noise and any oscillations, decoupling capacitors must be placed in close proximity to the power supply pins.

2. Resistor Matching: In the summing circuit, precision matching of resistors ensures equal gain and proper signal mixing.

3. Thermal Stability: Given that the NE5532P can dissipate a fair amount of power, ensuring adequate thermal management is necessary.

When incorporating the NE5532P into audio mixing circuits, attention to detail in the power supply, gain setting, and signal integrity ensures that its low noise and high fidelity characteristics are fully harnessed.
