Nuvoton Technology Corporation NAU8814YG

Part No.:: NAU8814YG

Manufacturer:: Nuvoton Technology Corporation

Package:: 24-VFQFN Exposed Pad

Datasheet:: NAU8814YG.pdf

Description:: IC AUDIO CODEC MONO 24QFN

In Stock:: 2327

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NAU8814YG Specifications

Package/Case:
24-VFQFN Exposed Pad
Packaging:
Tray
Series:
emPowerAudio™
ProductStatus:
Active
Type:
Audio
DataInterface:
I²S
Resolution(Bits):
24 b
NumberofADCs/DACs:
1 / 1
SigmaDelta:
Yes
S/NRatioADCs/DACs(db)Typ:
91 / 93
DynamicRangeADCs/DACs(db)Typ:
-
Voltage-SupplyAnalog:
2.5V ~ 3.6V
Voltage-SupplyDigital:
1.71V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NAU8814YG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NAU8814YG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NAU8814YG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NAU8814YG information

Views：

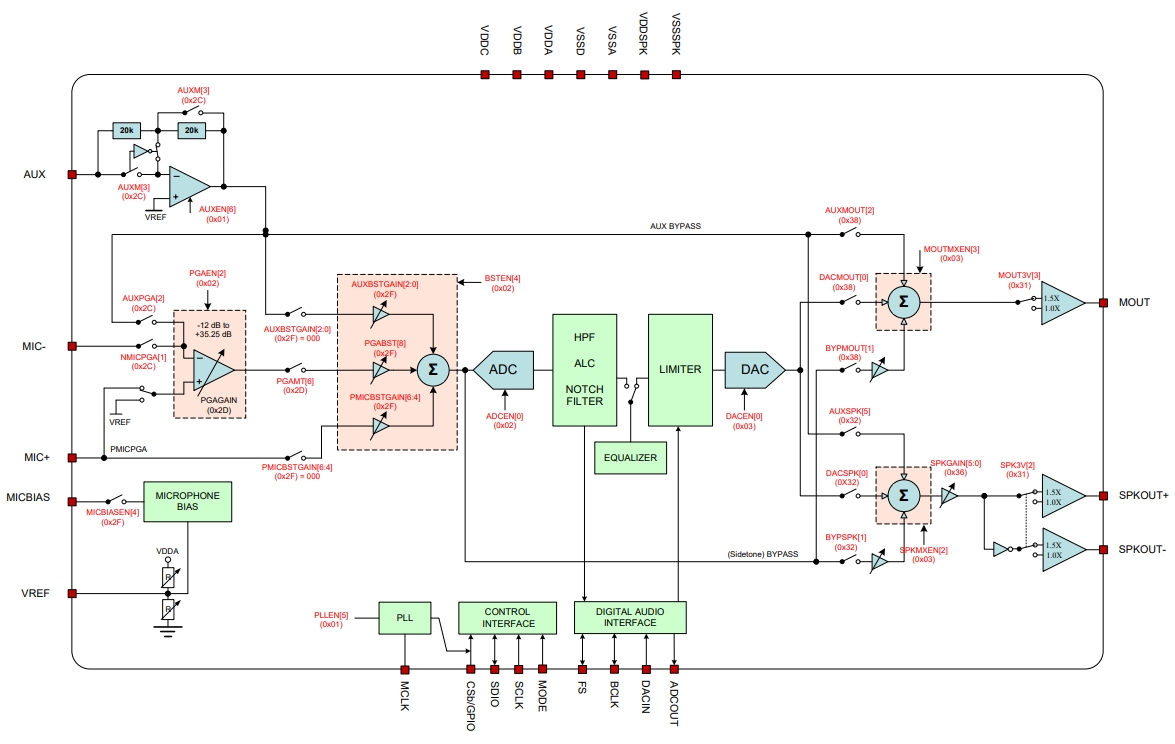

NAU8814YG Typical application Circuitry

NAU8814YG

The NAU8814YG is an audio codec integrated circuit designed to provide a comprehensive audio solution with both input and output capabilities. It typically includes analog-to-digital converters (ADCs), digital-to-analog converters (DACs), microphone inputs, and headphone or speaker outputs, making it suitable for a wide range of audio applications.

Application Scenarios

The NAU8814YG is widely used in portable audio devices, such as smartphones, tablets, and Bluetooth speakers. It can also be found in more complex systems like automotive audio systems, digital assistants, and any device that requires audio playback and/or recording capabilities.

Parameter Features

- High-Quality Audio Conversion: The NAU8814YG offers high-quality ADCs and DACs for excellent audio reproduction.

- Multiple Audio Inputs and Outputs: It supports multiple microphone inputs and can drive headphones or speakers directly, providing versatility in audio routing and mixing.

- Integrated Microphone Bias: The codec typically includes an integrated microphone bias to simplify the connection of electret microphones.

- Low Power Consumption: Designed for portable applications, it features low power consumption to extend battery life in mobile devices.

Specific Circuit Connection Example: Bluetooth Speaker

In a Bluetooth speaker application, the NAU8814YG can manage audio input from the Bluetooth module and drive the speaker output.

1. Power Supply Connections: Connect the NAU8814YG's power supply pins (e.g., VDD) to a stable power source, ensuring that the voltage levels meet the IC's requirements. Ground connections should be solid to minimize noise.

2. Audio Input from Bluetooth Module: Connect the audio output from the Bluetooth module to the NAU8814YG's ADC input pins. This might involve differential or single-ended connections based on the output configuration of the Bluetooth module and the input requirements of the NAU8814YG.

3. Speaker Output: Connect the NAU8814YG's DAC output pins to the inputs of an amplifier (if the NAU8814YG's output power is insufficient for direct speaker driving) or directly to the speaker if the NAU8814YG can drive the speaker with adequate power. Use capacitors as recommended in the datasheet to filter the output.

4. Control Interface: The NAU8814YG is typically controlled via an I²C or SPI interface. Connect the corresponding control pins to the microcontroller or processor that will configure and control the codec. This setup is crucial for initializing the NAU8814YG and adjusting its settings (volume, audio paths, etc.) as required.

5. Decoupling Capacitors: Place decoupling capacitors near the power supply pins to filter out noise and provide a stable power supply to the NAU8814YG.

Design Considerations

When integrating the NAU8814YG into a circuit, consider the following:

- Power and Ground Layout: Ensure a clean power supply and a solid ground layout to minimize noise, which is crucial for high-quality audio performance.

- PCB Layout: Keep audio traces away from noisy digital signals to prevent interference. Use proper routing and shielding techniques to preserve audio quality.

- Thermal Management: While the NAU8814YG may not generate significant heat, ensure that the overall design manages heat effectively, especially in compact, enclosed spaces like a Bluetooth speaker.

- Electromagnetic Interference (EMI): Consider EMI implications in the design, especially if the NAU8814YG is used in devices with wireless capabilities. Proper PCB layout and grounding can mitigate EMI issues.

By carefully considering these aspects, the NAU8814YG can be effectively utilized in audio applications, providing high-quality audio processing and conversion capabilities essential for modern audio devices.
