ON Semiconductor MUR1100ERLG

Part No.:: MUR1100ERLG

Manufacturer:: ON Semiconductor

Package:: DO-204AL, DO-41, Axial

Datasheet:: MUR1100ERLG.pdf

Description:: DIODE GEN PURP 1000V 1A AXIAL

In Stock:: 3701

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MUR1100ERLG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Bulk
Series:
SWITCHMODE™
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Standard
Part Status:
Active
Mounting Type:
Through Hole
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
100 ns
Current - Reverse Leakage @ Vr:
10 µA @ 1000 V
Voltage - DC Reverse (Vr) (Max):
1000 V
Current - Average Rectified (Io):
1A
Operating Temperature - Junction:
-65°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If:
1.75 V @ 1 A

MUR1100ERLG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MUR1100ERLG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MUR1100ERLG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MUR1100ERLG information

Views：

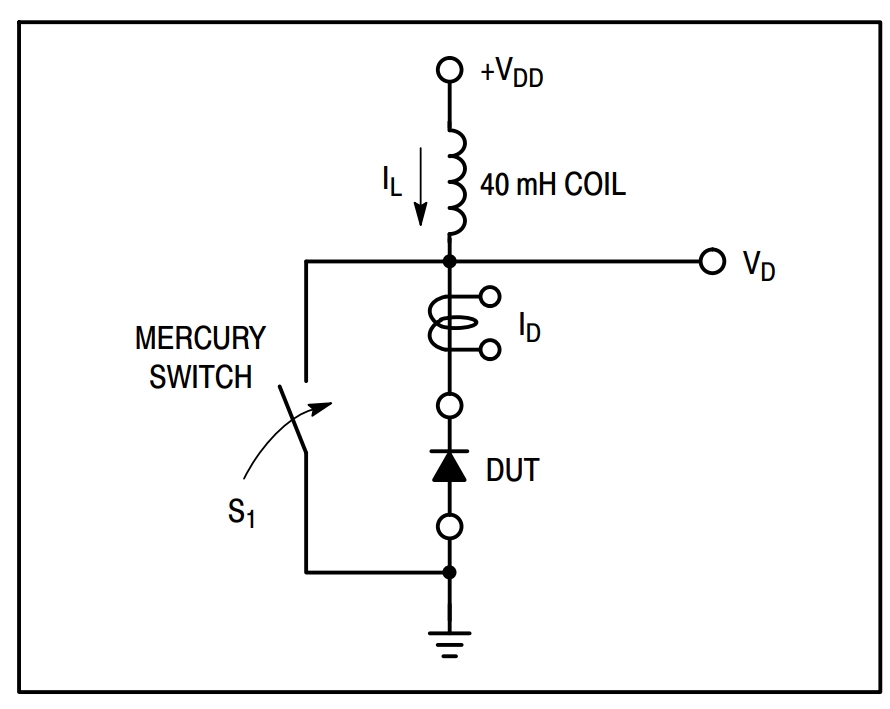

MUR1100ERLG Typical application Circuitry

MUR1100ERLG

The world of electronic components is vast and varied, and the MUR1100ERLG is a specific and pivotal element within this landscape.

Functional Overview:

The MUR1100ERLG is not precisely a "chip", but an ultrafast diode. It functions more quickly than many other diodes at its main function, which is to permit electricity to flow in one direction while blocking it in the other.

Where It Fits - Applications:

- Power Supplies: Acts as a rectifier, converting AC to DC and ensuring a rapid switch off during polarity changes.

- Motor Drives: Protects circuits from voltage spikes due to the motor's inductive nature.

- Switching Circuits: As a snubber diode, it manages high transient voltage, enhancing circuit reliability.

Parameter Highlights:

- Reverse Voltage (VR): Rated at 1000V, indicating the maximum voltage the diode can block in reverse-biased mode.

- Forward Current (IF): It can handle a continuous forward current of 1A.

- Speed: It's an ultrafast diode, with reverse recovery times typically less than 50ns.

Scenario: Power Supply Rectification:

1. Positioning the Diode:

- Placement: Install the MUR1100ERLG in series with the AC input.

- Why: To convert the alternating current (AC) coming from the mains into direct current (DC) suitable for electronic circuits.

2. Polarity Consideration:

- Guidance: Always ensure that the cathode (usually marked with a band) of the MUR1100ERLG is connected to the positive rail of the DC side.

- Logic: Adhering to this ensures that the diode only lets through the positive half cycles of the AC signal, effectively rectifying it.

3. Ground Connection:

- Connection: The anode of the MUR1100ERLG should be interfaced with the ground (or negative rail) of the DC side.

- Explanation: This setup finalizes the unidirectional current path, with the diode blocking negative half cycles.

What Designers Need to Mull Over:

1. Heat Dissipation: The MUR1100ERLG can get warm or even hot during operation. Incorporating a heat sink or ensuring ample ventilation might be required, especially in high-current applications.

2. Maximum Ratings: Respect the diode's voltage and current ratings. Exceeding these might lead to diode failure and possible damage to the entire circuit.

3. Placement and Layout: The physical location matters, especially in high-frequency applications. Minimizing the diode's leads and ensuring a solid ground connection can reduce unwanted inductances.

Diving into the vast electronics sea, the MUR1100ERLG stands as a beacon of reliability and speed, ready to enhance and protect circuits across various applications.
