NXP USA Inc. MKW01Z128CHN

Part No.:: MKW01Z128CHN

Manufacturer:: NXP USA Inc.

Package:: 60-VFLGA Exposed Pad

Datasheet:: MKW01Z128CHN.pdf

Description:: IC RF TXRX+MCU ISM<1GHZ 60VFLGA

In Stock:: 3478

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MKW01Z128CHN Specifications

Packaging:
Tray
Series:
-
ProductStatus:
Active
Type:
TxRx + MCU
RFFamily/Standard:
General ISM < 1GHz
Protocol:
-
Modulation:
FSK, GFSK, GMSK, MSK, OOK
Frequency:
290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz
DataRate(Max):
600kbps
Power-Output:
17dBm
Sensitivity:
-120dBm
MemorySize:
128kB Flash, 16kB RAM
SerialInterfaces:
I²C, SPI, UART
GPIO:
6
Voltage-Supply:
1.8V ~ 3.6V
Current-Receiving:
16mA ~ 17mA
Current-Transmitting:
16mA ~ 95mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MKW01Z128CHN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MKW01Z128CHN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MKW01Z128CHN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MKW01Z128CHN information

Views：

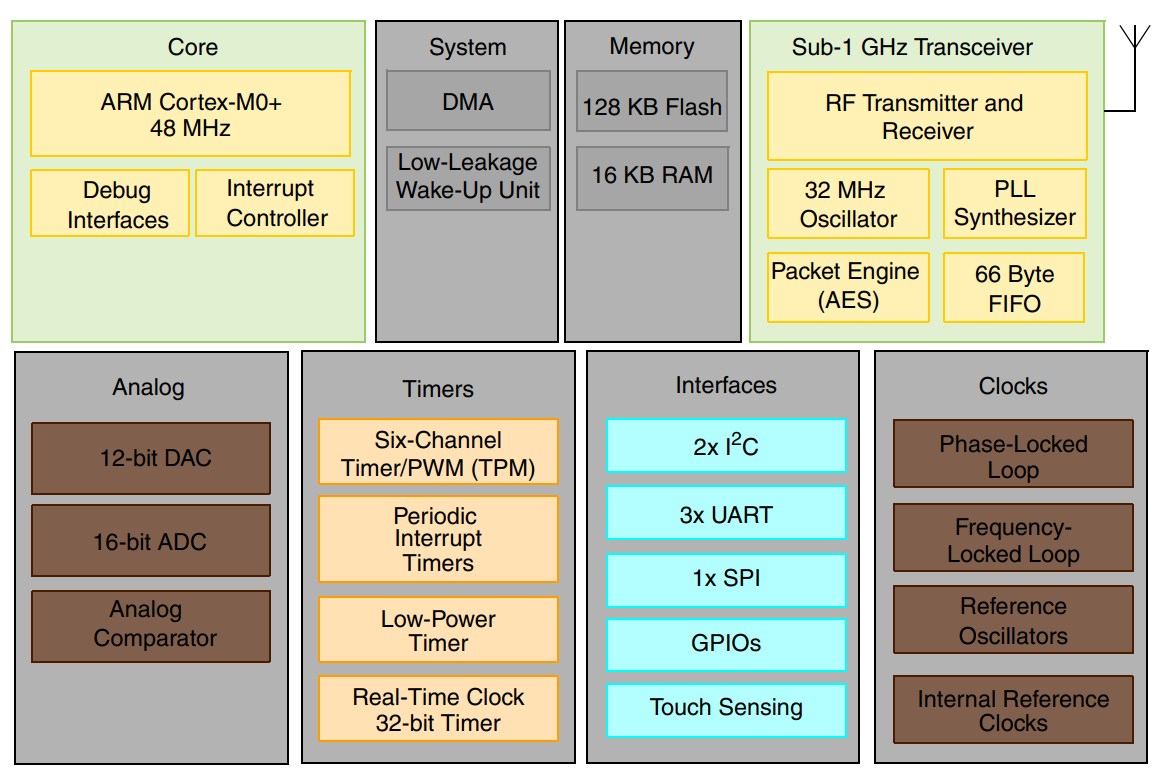

MKW01Z128CHN Typical application Circuitry

MKW01Z128CHN

The MKW01Z128CHN is a sub-GHz radio frequency microcontroller from NXP, integrated with the ARM Cortex-M0+ processor. It's designed for long-range, low-power wireless applications. Your exact circuit design and connections will depend on your specific use case, but here's a basic rundown of how to connect this microcontroller in a typical circuit:

1. Power Supply: The VDD pin is connected to a 1.8 to 3.6V power supply, and the VSS pin is connected to the ground of your power supply. To reduce noise, decoupling capacitors should be positioned next to these pins.

2. Clock Configuration: An external crystal oscillator may be connected via the EXTAL0 and XTAL0 connectors. Alternatively, the MKW01Z128CHN has an internal oscillator which you can use as the clock source.

3. Reset: The RESET_b pin can be connected to a normally-high push-button for external reset. Add a pull-up resistor between RESET_b and VDD, and a capacitor between RESET_b and ground for reset debounce.

4. GPO: The MKW01Z128CHN has several GPO pins that can be used for various digital input or output purposes. Connect these pins to digital devices like LEDs, buttons, or digital sensors based on your needs.

5. Communication Protocols: The I2C communication protocol uses the SDA and SCL pins. For SPI communication, use the MOST, MISS, and SCK pins. For PART communication, you'll use the TX and RX pins.

6. RF Antenna: The ANT pin is used for the antenna connection in RF applications. The choice of antenna type and its impedance matching will depend on the specific requirements of your RF application.

7. Programming Interface: The SWD protocol (Serial Wire Debug) uses the SWD_DID and SWD_CLK pins for programming and debugging.

As always, refer to the MKW01Z128CHN data sheet for more specific and detailed information, and always follow best practices for circuit design and safety guidelines when handling electronics.
