Microchip Technology MCP6042T-E/SNVAO

Part No.:: MCP6042T-E/SNVAO

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MCP6042T-E/SNVAO.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2879

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP6042T-E/SNVAO Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
0.003V/µs
GainBandwidthProduct:
14 kHz
-3dbBandwidth:
-
Current-InputBias:
1 pA
Voltage-InputOffset:
3 mV
Current-Supply:
600nA (x2 Channels)
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
1.4 V
Voltage-SupplySpan(Max):
6 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

MCP6042T-E/SNVAO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP6042T-E/SNVAO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP6042T-E/SNVAO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP6042T-E/SNVAO information

Views：

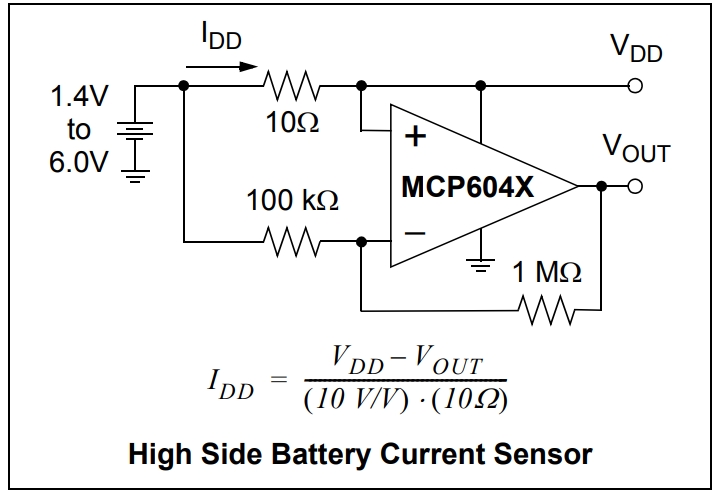

MCP6042T-E/SNVAO Typical application Circuitry

MCP6042T-E SNVAO

Microchip Technology produced an operational amplifier (op-amp) chip called the MCP6042T-E/SNVAO. It is intended for general-purpose applications where rail-to-rail input/output functionality and low power consumption are necessary. Its features, application scenarios, parameter details, and a thorough demonstration of how it integrates into a particular circuit, together with important design concerns, will all be covered in this section.

Overview of Functionality: The MCP6042T-E/SNVAO is an op-amp that has low power consumption. It is made for uses where amplification of analog signals is necessary, like active filtering, audio processing, and sensor interface.

Application Scenarios: Battery-operated devices, portable medical equipment, consumer electronics, and other applications where power efficiency is essential are among the many uses for this op-amp.

Parameter Characteristics: The MCP6042T-E/SNVAO features a low quiescent current, rail-to-rail input/output capability, and operates within a supply voltage range of 1.4V to 6.0V. It has a gain bandwidth product of 14 kHz, making it suitable for low-frequency applications.

Circuit Integration - Sensor Signal Amplification:

1. Power Supply Connections: Connect the VDD pin (pin 8) of the MCP6042T-E/SNVAO to a positive power supply, which can range from 1.4V to 6.0V, depending on the application requirements. Connect the VSS pin (pin 4) to the ground. Ensure the power supply is stable.

2. Input Signal Connection: Connect the non-inverting input (pin 3) of the MCP6042T-E/SNVAO to the output of a sensor. If needed, use a voltage divider or biasing network to set the appropriate operating point for the sensor signal.

3. Feedback and Gain Setting: To adjust the amplifier's gain, connect a feedback resistor between pin 1 (the output) and pin 2 (the inverting input). To establish the required amplification level and steady the operation, add a resistor from pin 2 to ground.

4. Output Connection: An ADC or a display unit are two possible destinations for the amplified signal that can be sent from pin 1 (the output pin) to the following step of the circuit.

Considerations for Design:

5. Power Supply Decoupling: To reduce noise and stabilize the power supply, place decoupling capacitors in close proximity to the MCP6042T-E/SNVAO power supply ports.

6. Input Biasing : To guarantee precise amplification without causing distortion, bias the input signal appropriately.

7. Output Load Handling: Consider the output load that the MCP6042T-E/SNVAO will drive. Ensure it's within the chip's capability to prevent distortion or instability in the output signal.

8. Thermal Management: Although the MCP6042T-E/SNVAO is a low-power device, it's still important to consider its thermal dissipation, especially when operating near the higher end of its voltage range or in confined spaces.

In conclusion, the MCP6042T-E/SNVAO is a versatile op-amp suitable for various low-power applications. Integrating this chip into a circuit requires attention to power supply quality, input signal conditioning, gain configuration, and thermal considerations to ensure optimal performance and reliability.
