Microchip Technology MCP6001UT-E/OT

Part No.:: MCP6001UT-E/OT

Manufacturer:: Microchip Technology

Package:: SC-74A, SOT-753

Datasheet:: MCP6001UT-E/OT.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 2917

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP6001UT-E/OT Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
0.6V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
1 pA
Voltage-InputOffset:
4.5 mV
Current-Supply:
100µA
Current-Output/Channel:
23 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
6 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

MCP6001UT-E/OT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP6001UT-E/OT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP6001UT-E/OT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP6001UT-E/OT information

Views：

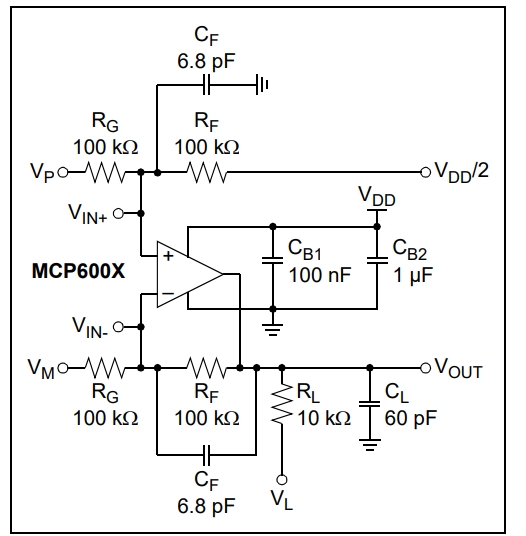

MCP6001UT-E/OT Typical application Circuitry

MCP6001UT-E OT

The MCP6001UT-E/OT is a single general-purpose operational amplifier (op-amp) designed by Microchip Technology. It's used in a variety of applications due to its low power consumption, rail-to-rail input and output, and wide bandwidth. This makes it ideal for battery-powered devices, sensor interfaces, and general analog signal amplification.

MCP6001UT-E/OT Specifications:

1. Operating Voltage: Ranges from 1.8V to 6.0V, making it versatile for both single and dual supply operations.

2. Low Quiescent Current: Features a quiescent current of just 100 µA, which is advantageous in power-sensitive applications.

3. Bandwidth: Offers a 1 MHz Gain Bandwidth Product (GBWP), suitable for audio and other low-frequency signal processing.

4. Rail-to-Rail Input/Output: Provides maximum dynamic range, an important feature for low-voltage applications.

Application in a Sensor Signal Amplification Circuit:

The MCP6001UT-E/OT is often used in circuits to amplify low-output signals from sensors, enhancing their readability for digital conversion or further processing.

Circuit Connection Overview:

1. Powering the Op-Amp: Connect the positive power supply (up to 6.0V) to pin 5 (Vdd) of the MCP6001UT-E/OT, and connect the ground to pin 2 (Vss).

2. Sensor Input Connection: Attach the output of the sensor to pin 3 (non-inverting input) of the MCP6001UT-E/OT. This setup is used to amplify the sensor signal.

3. Feedback Loop and Gain Control: Connect a feedback resistor (Rf) between pin 1 (output) and pin 3, and another resistor (Rg) from pin 3 to the ground. The ratio of Rf to Rg sets the amplification gain.

4. Output Signal: The amplified sensor signal is available at pin 1 (output), which can be fed into an ADC or a microcontroller for digital processing.

Design Considerations:

- Stable Power Source: A consistent power supply is essential to maintain the integrity of signal amplification.

- Selection of Resistors: Carefully select Rf and Rg to achieve the desired level of amplification without introducing excessive noise.

- Bandwidth Consideration: Ensure the frequency of the sensor signal is within the bandwidth of the MCP6001UT-E/OT for effective amplification.

- Thermal Management: While the MCP6001UT-E/OT typically runs cool due to its low power consumption, in high-gain setups, ensure adequate thermal management.

- PCB Layout: Implement a clean PCB layout, keeping the input and output paths short to minimize noise and interference.

In sensor signal amplification, the MCP6001UT-E/OT is a reliable choice, providing clear and amplified outputs of low-level signals. When designing circuits with this op-amp, attention to power supply stability, resistor selection, signal bandwidth, and effective PCB layout is crucial for optimal performance.
