ON Semiconductor MC33172DR2

Part No.:: MC33172DR2

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MC33172DR2.pdf

Description:: IC OPAMP DUAL LOW POWER 8SOIC

In Stock:: 3282

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC33172DR2 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Cut Tape (CT),Bulk
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
2.1V/µs
GainBandwidthProduct:
1.8 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
2 mV
Current-Supply:
220µA (x2 Channels)
Current-Output/Channel:
27 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
44 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MC33172DR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC33172DR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC33172DR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC33172DR2 information

Views：

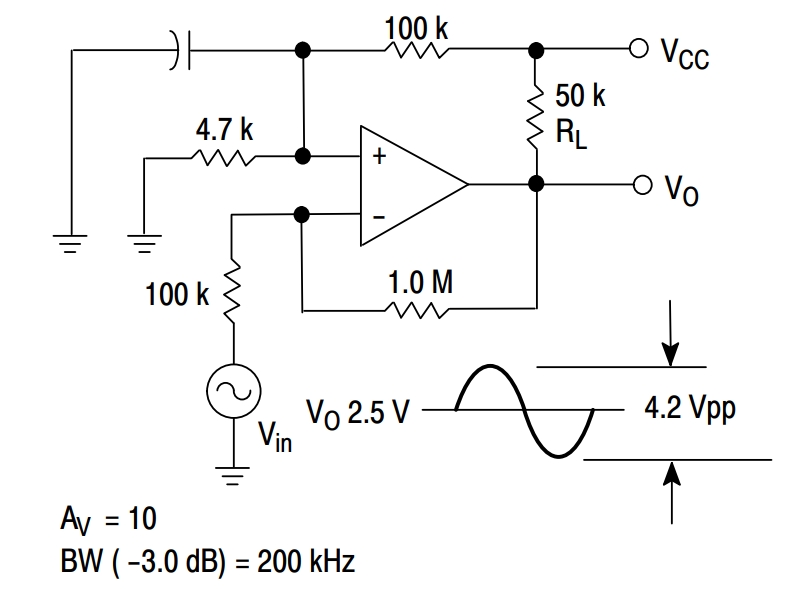

MC33172DR2 Typical application Circuitry

MC33172DR2

The MC33172DR2 is a dual operational amplifier (op-amp) characterized by its low power consumption and wide bandwidth. It's typically employed in applications that demand efficient signal amplification, such as sensor interfaces, analog signal processing, and audio equipment.

The MC33172DR2 has the following notable features:

1. Efficient Power Usage: Due to its low power consumption, it is appropriate for battery-operated devices.

2. Broad Bandwidth: The MC33172DR2 can process a large variety of signal frequencies thanks to this.

3. Bipolar Input Stage: Provides the ability to process a variety of input signal levels.

Application Scenario - Active Filter Design:

The MC33172DR2 is adept for use in active filter circuits, which are common in audio processing and signal conditioning applications.

Detailed Circuit Implementation with MC33172DR2:

1. Input Connection: For an active low-pass filter, connect the input signal to the non-inverting input (pin 3) of the MC33172DR2. It's advisable to use shielded wiring to minimize external noise.

2. Feedback Network for Filter Design: Place a resistor (R1) between the output (pin 1) and the inverting input (pin 2), and a capacitor (C1) from the inverting input to the ground. This RC network defines the filter's cutoff frequency.

3. Connection for Dual Power Supply: Connect the MC33172DR2's positive supply to pin 8 and negative supply to pin 4. Capacitors for close proximity bypass are essential for lowering power supply noise.

4. Output Configuration: If DC blocking is required, include a series capacitor at the output (pin 1).

5. Effective Grounding Strategy: Proper grounding is essential to reduce noise and avoid potential ground loop issues in the circuit.

Circuit Design Considerations with MC33172DR2:

- Stability and Layout: Design the PCB layout to minimize the length of traces around the MC33172DR2, reducing the risk of oscillations and parasitic effects.

- Noise Suppression: Implementing noise reduction strategies, particularly at the input stage, is vital for maintaining signal integrity.

- Thermal Management: Ensure good heat dissipation for the MC33172DR2, especially in compact or enclosed spaces.

- Power Supply Quality: Using a regulated power supply is recommended to provide a stable and clean operating environment for the MC33172DR2.

In conclusion, when integrating the MC33172DR2 into an active filter circuit, careful consideration of the PCB layout, noise reduction techniques, and power supply stability is crucial to achieving a high-performance and reliable system.
