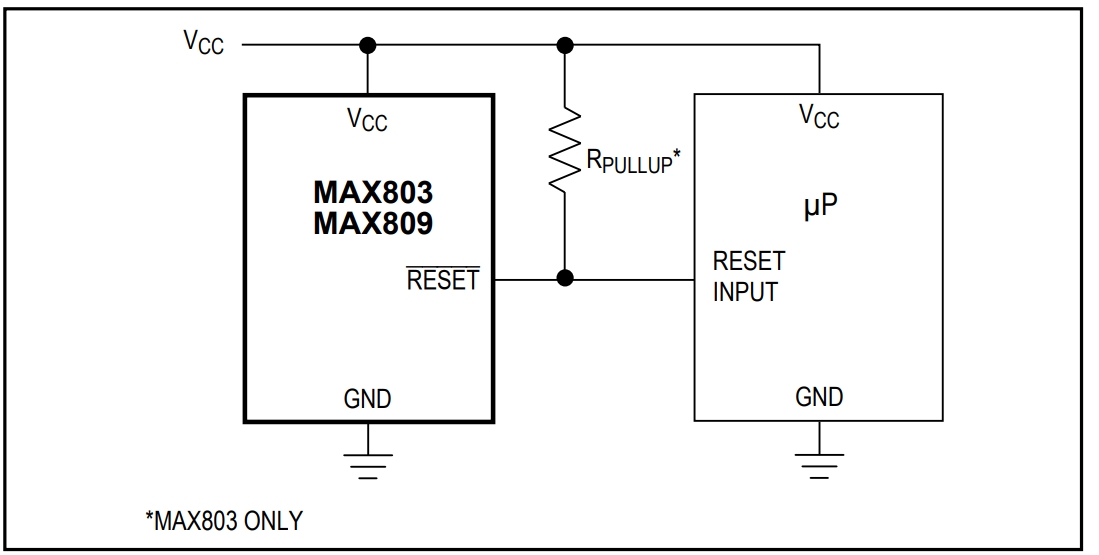

MAX809SEUR+G071 Typical application Circuitry

MAX809SEUR G071

The MAX809SEUR+G071 chip functions as a crucial supervisory component in various digital systems. Its primary role is to oversee the power supply levels, ensuring that microprocessors (µPs) and other digital circuits operate within safe voltage ranges. This chip is particularly useful in scenarios like computer systems, industrial controls, and battery-operated devices, where consistent power supply is vital for reliable operation.

The MAX809SEUR+G071 is characterized by its ability to monitor 3V, 3.3V, and 5V power supplies accurately, its precision in maintaining reset threshold levels, and its robustness in handling power fluctuations.

Utilization in a Computer System:

Let's delve into an application within a computer system, where the MAX809SEUR+G071 is instrumental in managing power supply integrity.

Circuit Integration Approach:

1. Power Supply Monitoring: Attach the VCC pin (Pin 1) of the MAX809SEUR+G071 to the power supply line. This enables the chip to constantly oversee the supply voltage.

2. Establishing Ground Reference: Connect the GND pin (Pin 2) of the MAX809SEUR+G071 to the system's ground. This step is critical for voltage reference calibration.

3. Reset Signal Configuration: Interface the RESET pin (Pin 3) of the MAX809SEUR+G071 with the reset control line of the µP. This connection is crucial for initiating a reset when a voltage anomaly is detected.

4. Customizing Reset Timing: If necessary, add a capacitor between the RESET pin (Pin 3) and the ground. This adjusts the timing of the reset signal, adding flexibility to the system reset process.

Design Factors to Consider:

1. Voltage Threshold Selection: It's imperative to choose a MAX809SEUR+G071 with a voltage threshold that aligns with your system's operating voltage to ensure appropriate reset activation.

2. Mitigating Voltage Spikes: Implement voltage filtering near the MAX809SEUR+G071 to shield it from transient voltage spikes that could trigger false resets.

3. Reset Signal Compatibility: The reset output from the MAX809SEUR+G071 must meet the µP's reset input specifications in terms of voltage level and pulse duration.

4. Adapting to Environmental Conditions: Consider the ambient temperature and other environmental conditions where the MAX809SEUR+G071 will operate, as these can affect its performance.

5. Power Source Stability: In battery-operated systems, ensure that the battery's typical voltage range is within the operating limits of the MAX809SEUR+G071 for accurate monitoring.

By incorporating the MAX809SEUR+G071 into digital systems, engineers can significantly enhance the reliability and stability of their designs. This chip's ability to monitor and react to power supply variations is essential for maintaining the integrity of sensitive electronic components.
